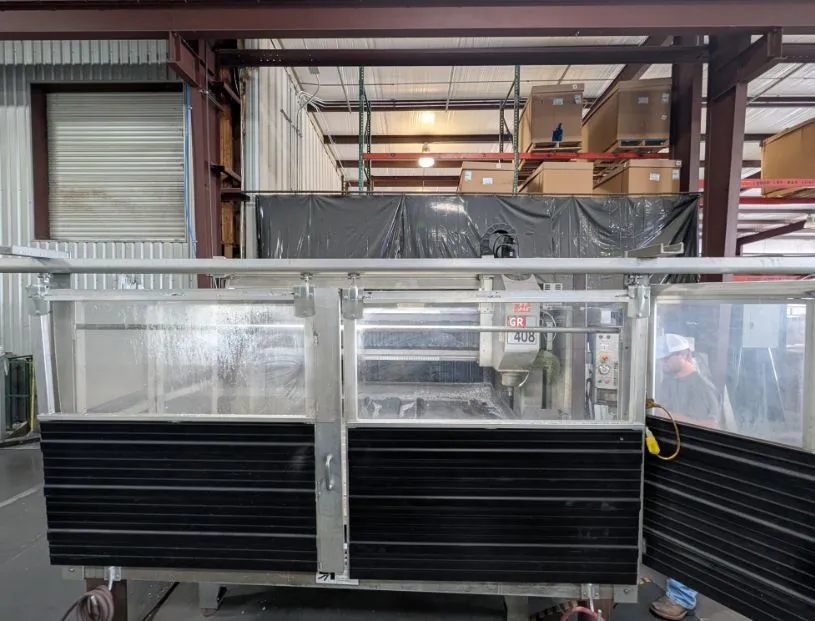

USED 2005 HAAS AUTOMATION GR-408

The 2005 Haas GR-408 is a precision CNC gantry router designed for high-speed machining of large components. Built with Haas’ proven CNC technology, the GR-408 combines the accuracy of a vertical machining center with the capacity of a large-format router. Its rigid steel gantry, 102″ (X) × 49″ (Y) × 11″ (Z) travels, and 40-taper 8,000 rpm spindle make it ideal for machining aluminum, plastic, wood, and composite materials with precision and repeatability.
The GR-408 features a high-flow vacuum table or T-slot fixture bed (depending on configuration), fast rapids, and advanced Haas CNC control with intuitive programming. This model delivers excellent chip evacuation, smooth contouring, and the versatility needed for mold, pattern, and aerospace component production. Whether used for prototyping or high-mix manufacturing, the GR-408 offers large-format precision in a reliable and affordable package.
Features & Options
Large 102″ × 49″ × 11″ machining envelope
CAT-40 8,000 rpm spindle with 10 hp vector drive
Rigid steel gantry construction for precision and durability
10-tool automatic changer for fast setup
High-speed contouring and rapid positioning
Optional vacuum or T-slot table configurations
Full enclosure and chip management system
Haas intuitive CNC control for easy operation
Ideal for aluminum, plastics, composites, and pattern machining
Specifications are based on the standard 2005 Haas GR-408 configuration. Always verify actual details with Haas Automation or the machine nameplate.

Manufacturer: Haas Automation
Model: GR-408
Year: 2005
Machine Type: CNC Gantry Router
X-Axis Travel: 102″
Y-Axis Travel: 49″
Z-Axis Travel: 11″
Table Size: 98″ × 49″
Spindle Taper: CAT-40
Spindle Speed: 8,000 rpm
Spindle Motor: 10 hp
Tool Changer: 10 ATC
Rapid Traverse: 600 ipm
Control: Haas CNC Control
Work Envelope: 102″ × 49″ × 11″
Machine Weight: ~11,000 lb (5,000 kg)
Final Listing Price: Request Quote
