#3230 USED 2013 CAK360X450 SLANT BED.

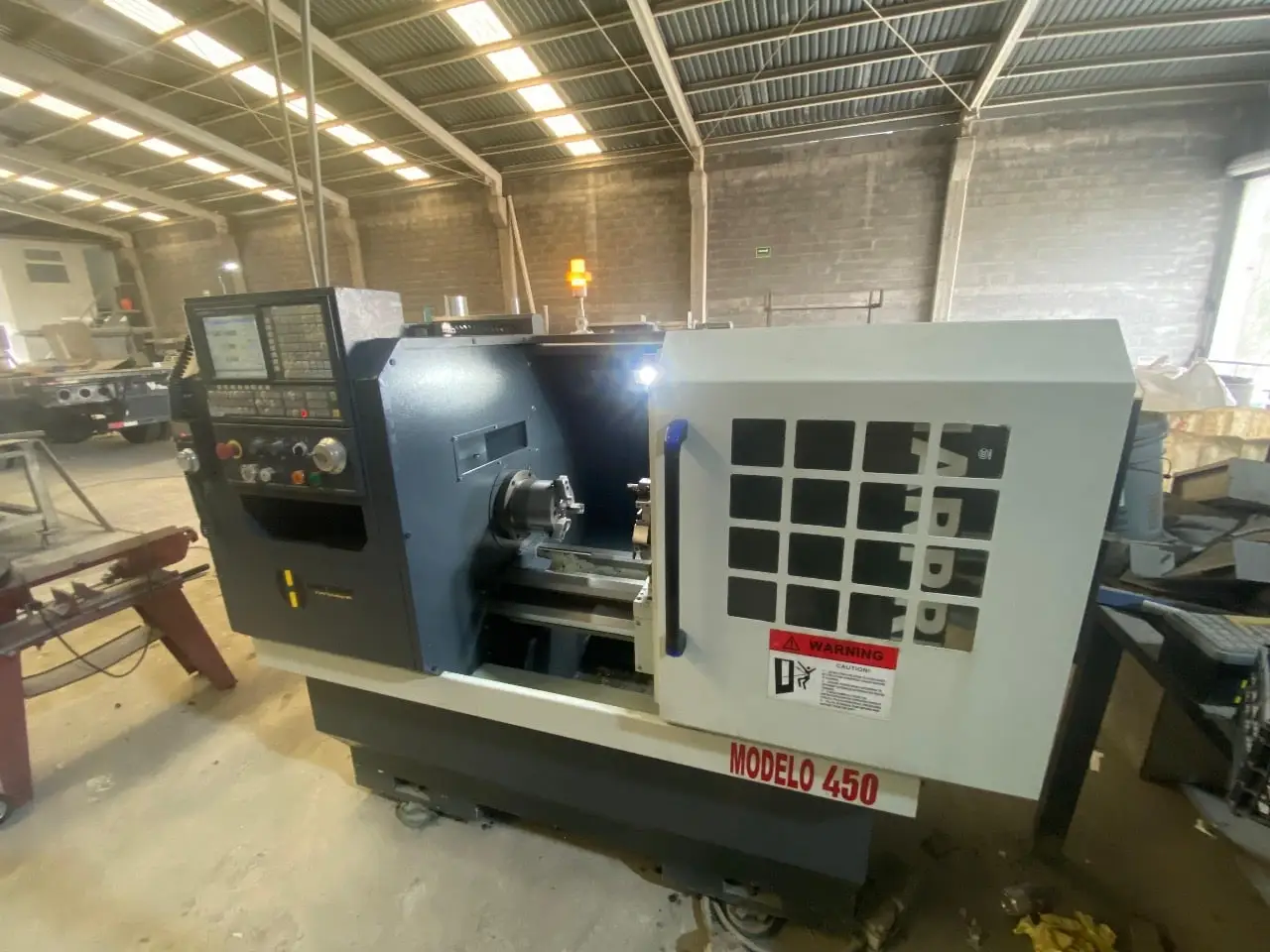

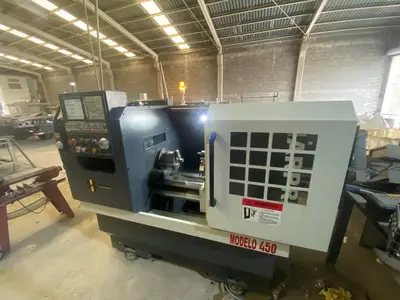

The CAK360×450 is a compact CNC turning center built for dependable performance in bushings, sleeves, couplings, and light shaft work. With a maximum swing of 360 mm (≈14.2″) and a turning length of 450 mm (≈17.7″), it provides a practical solution for small-to-medium sized components. The machine includes enclosed guarding and a sliding access door to contain chips and coolant, enhancing operator safety and shop cleanliness compared with open manual lathes.

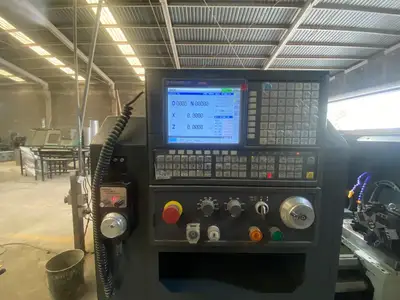

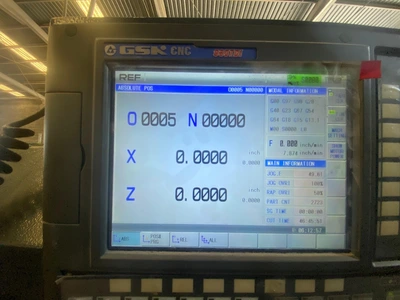

A Fanuc-style CNC interface offers straightforward programming, manual jog with a handwheel, and clear status indication. An 8-position tool turret allows quick indexing between OD/ID turning, facing, threading, and grooving tools, reducing setup and cycle times. The spindle is designed for a 6″ class chuck, A2-5 mount , supporting up to ~4,000 rpm with ~7.5 kW of drive power. A tailstock provides support for shaft-type parts up to 450 mm long, improving rigidity and accuracy.
Features & Options
Compact footprint with 14.2″ swing × 17.7″ turning length
6″ hydraulic chuck, likely A2-5 spindle mount
~4,000 rpm spindle with ~10 hp drive
8-position tool turret for versatile setups

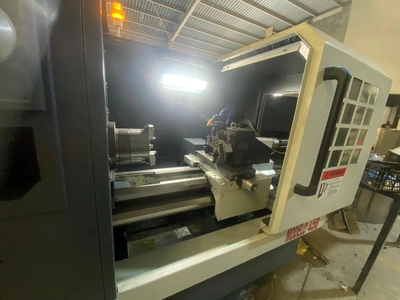

Enclosed guarding and sliding door for safety and cleanliness
Fanuc-style CNC control with manual handwheel jog
Tailstock for improved shaft work rigidity
Ideal for bushings, sleeves, couplings, and prototype work
Strong upgrade path from manual lathes
Specifications may vary by configuration. Verify with manufacturer.

Model: CAK360×450
Machine Type: CNC Turning Center
Max Swing: 360 mm (≈14.2″)
Max Turning Length: 450 mm (≈17.7″)
Chuck Size: 6″ hydraulic
Spindle Nose: A2-5
Spindle Speed: Up to ~4,000 rpm
Spindle Power: ~7.5 kW (≈10 hp)
Turret Stations: 8-position
Control: Fanuc-style CNC interface
Tailstock: Yes, for shaft support
Final Listing Price: Request Quote
