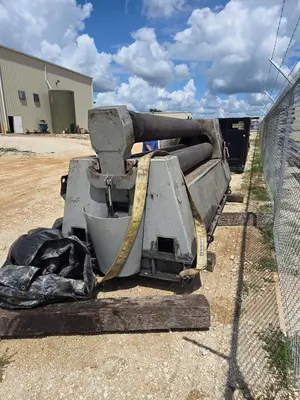

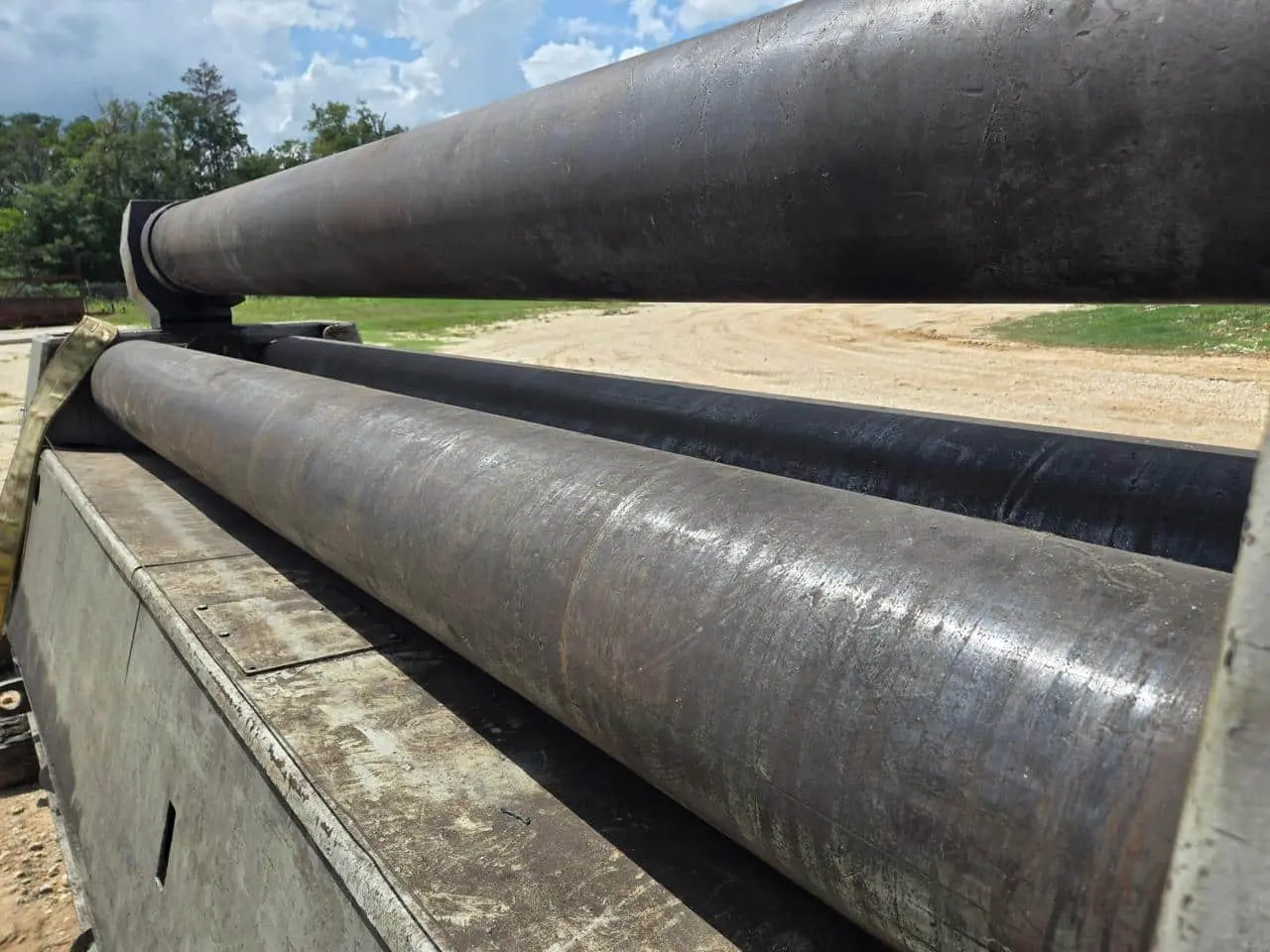

USED 1981 PULIMAX (PULLMAX) 5/8″ × 10′

The 1981 Pulimax 5/8″ × 10′ Plate Roll is engineered for reliable rolling and pre-bending of heavy steel plate. With its hydraulic-powered lower rolls, variable speed, and cone rolling capability, it is ideal for fabricators handling pressure vessels, structural work, and custom rolling jobs. Built with a robust frame and hydraulic drop end, this machine ensures rigidity, ease of operation, and consistent forming accuracy for thick plate applications.
Features & Options
5/8″ × 10′ rolling capacity in mild steel
Hydraulic-powered lower roll adjustment
Hydraulic drop end for easy material removal
Cone rolling capability
Variable rolling speed for forming control
Heavy-duty cast and welded frame construction
Overload protection and safety stop features
Optional side and overhead supports for large diameter rolling
Specifications may vary depending on configuration. Verify with Pulimax documentation or machine nameplate.

Year: 1981
Manufacturer: Pulimax (Pullmax)
Model: 5/8″ × 10′
Machine Type: Hydraulic 3-Roll Plate Roll
Capacity (Mild Steel): 5/8″ × 10′
Pre-Bending Capability: Yes
Rolling Speed: 0 – 26 ft/min
Main Motor: 20 hp
Roll Adjustment: Hydraulic lower roll adjustment
Drop End: Hydraulic drop end for part removal
Cone Rolling: Yes, cone rolling attachments
Machine Dimensions: ~200″ × 60″ × 70″ (approx.)
Machine Weight: ~28,000 lb (estimated)
Final Listing Price: Request Quote
