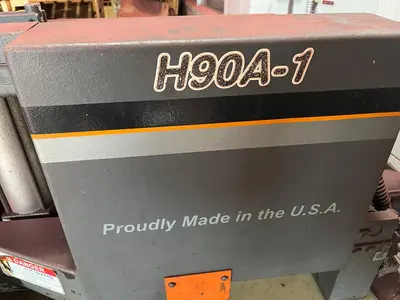

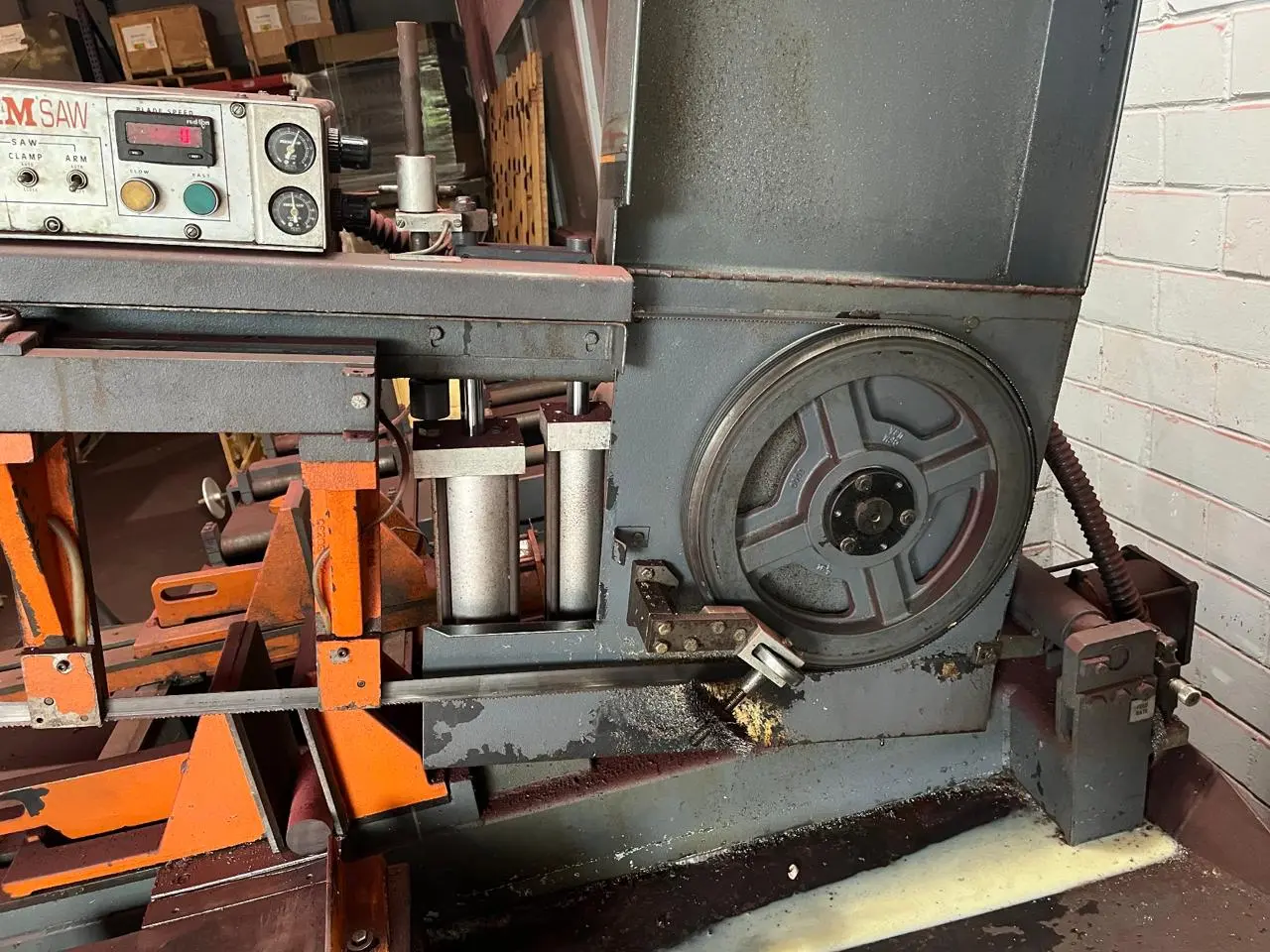

USED HE&M SAW A90

The HE&M Saw A90 Bandsaw is built for production sawing of medium to large stock. With a cutting capacity of up to 12.75″ round or square, a 3 hp motor, and automatic hydraulic feed, it delivers both power and accuracy. Designed with an adjustable blade speed, heavy-duty frame, and advanced operator controls, the A90 ensures consistent performance in demanding environments such as fabrication shops, steel service centers, and manufacturing plants.
Features & Options
Automatic hydraulic bar-feed with 24″ stroke

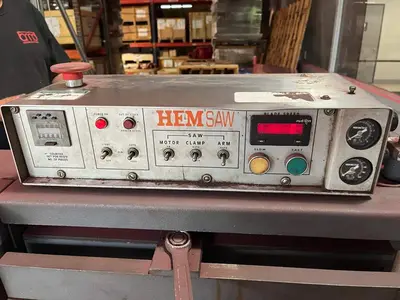

Adjustable blade speed with LED readout
Adjustable clamping force for secure cutting
Carbide blade guides for precision and durability
Broken blade detection system
Out-of-stock sensor for automatic stop
Flood coolant system with wash-down hose
Heavy-duty discharge table (18″ standard)
Optional: top clamps, third holding vise, spray mist lubrication, longer idler tables
Specifications may vary depending on machine configuration. Verify with HE&M Saw nameplate or manual.

Manufacturer: HE&M Saw
Model: A90
Machine Type: Horizontal Pivot Band Saw
Rectangular Capacity: 12.75″ W × 12.75″ H
Round Capacity: 12.75″
Bar-Feed / Stroke Length: 0–24″ (single index hydraulic stroke)
Blade Size: 12′-10″ L × 1″ × 0.035″
Motor Power: 3 hp
Blade Speed: Variable, LED readout
Operation Type: Automatic / Semi-automatic
Power Supply: 220 V or 440 V, 3-phase
Air Requirement: 85 psi, 4–6 cfm
Machine Weight: ~5,000 lb
Final Listing Price: Request Quote
