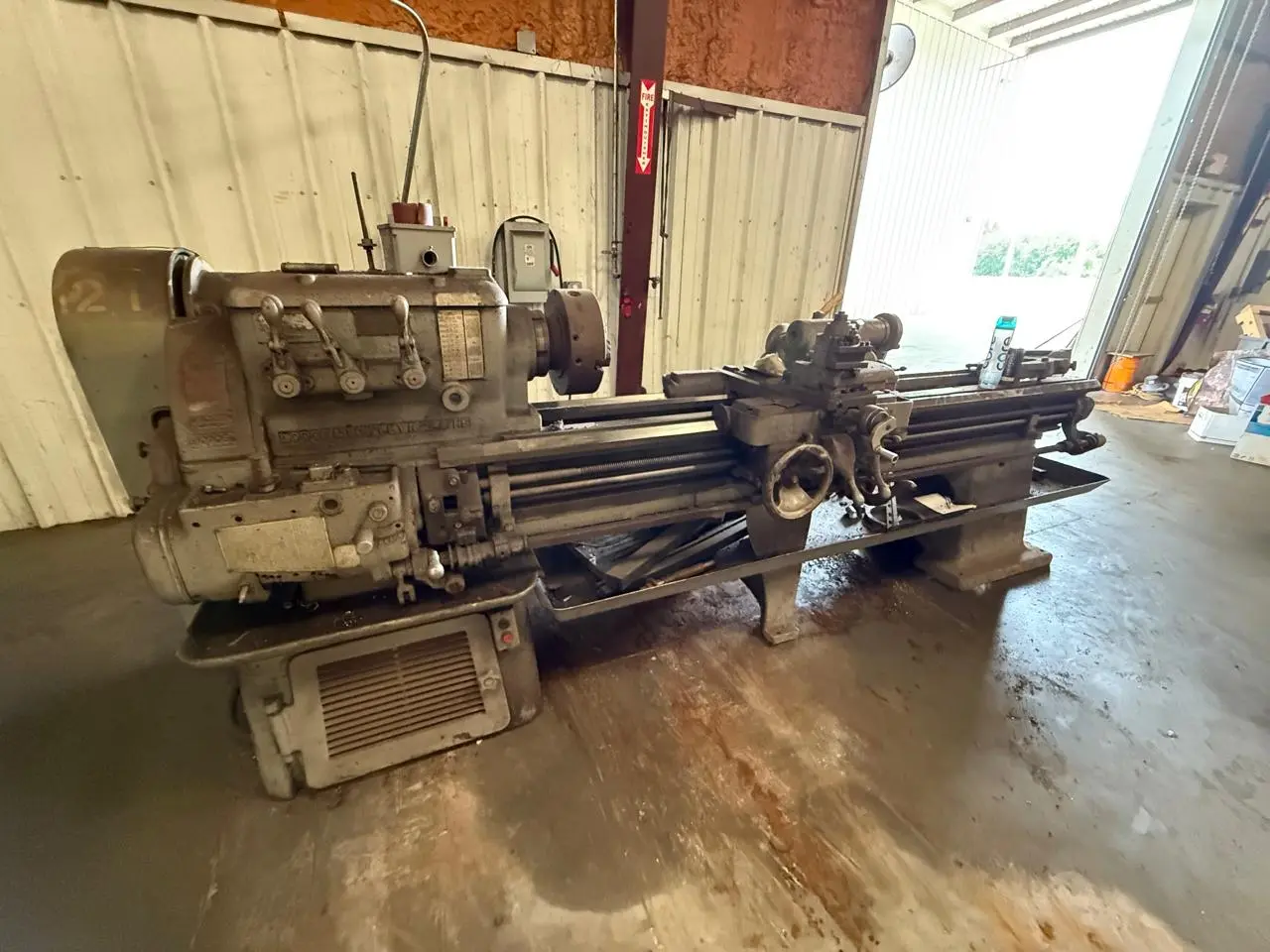

USED LODGE & SHIPLEY 16″ ENGINE LATHE

The Lodge & Shipley 16″ Engine Lathe is a rugged, American-built precision lathe designed for toolroom, maintenance, and production applications. Known for its durability and power, this machine provides a 16″ swing over the bed and up to 8′ between centers, depending on configuration. Its massive cast-iron bed, precision-ground ways, and heavy headstock construction make it ideal for turning large shafts, bushings, and industrial components with superior accuracy.
Equipped with a geared headstock, variable spindle speeds, and a quick-change threading gearbox, the Lodge & Shipley 16″ delivers smooth performance across a wide range of materials. This model remains a shop favorite for its reliability, ease of maintenance, and capability for both rough and precision turning operations.
Features & Options
16″ swing over bed with up to 8′ between centers
Heavy-duty cast-iron bed for rigidity and vibration damping
Variable-speed geared headstock with wide rpm range
Power longitudinal and cross feeds for smooth cutting
Quick-change gearbox for inch and metric threading
Large through-spindle bore for shaft and pipe work
Tailstock with hardened quill for precise center work
Ideal for repair, toolroom, and production applications
Specifications are typical for Lodge & Shipley 16″ engine lathes. Actual details may vary depending on year and configuration. Verify with the nameplate or original documentation.

Manufacturer: Lodge & Shipley
Model: 16″ Engine Lathe
Machine Type: Conventional Engine Lathe
Swing Over Bed: 16″ (406 mm)
Swing Over Cross Slide: 10″ (254 mm)
Distance Between Centers: 60″–96″ (1,524–2,438 mm)
Spindle Bore: 2.5″ (64 mm)
Spindle Nose: D1-6 (typical)
Spindle Speed Range: 20–1,200 rpm (variable by gearbox)
Motor Power: 10 hp (7.5 kW)
Carriage Feed: Power longitudinal and cross feed
Threading Range: 4–224 TPI (inch threading)
Tailstock Quill Diameter / Travel: 3″ / 6″ (76 / 152 mm)
Machine Weight: ~7,500 lb (3,400 kg)
Final Listing Price: Request Quote
