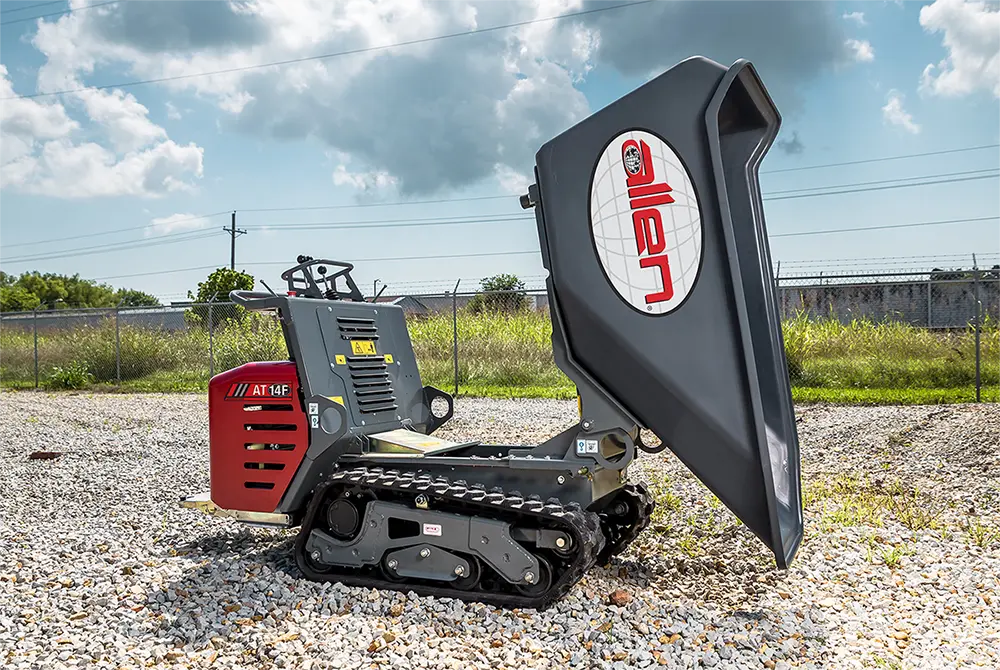

USED 2022 Allen Engineering AT14F

Engine: Honda GX630, 4-stroke OHV
Horsepower: 20.8 hp @ 3,600 rpm
Starter: Electric
Fuel Type: Gasoline
Fuel Capacity: 3 gallons
Top Speed: 4 mph (work), 6 mph (travel)
Transmission: Hydrostatic with dual variable displacement piston pumps
Weight: 1,420 lbs
Dimensions (L × W × H): 98 × 31.5 × 52.5 inches
Track Width: 7.08 inches
Ground Pressure: Low (due to rubber tracks)
Maximum Gradeability: Up to 30% when fully loaded
Bucket & Payload
Bucket Capacity: 14 cubic feet
Payload Capacity: 2,100 lbs
Dump Angle: 90°
Dump/Return Speed (Empty): 4 seconds
Bucket Material: Durable poly for easy cleaning
Pivot Angle: Fixed (non-swivel)
Key Features
Compact Width: 31.5 inches (fits through standard 36" doorways)
Rubber Tracks: Provide excellent traction across varying terrain
Intuitive Controls: Two servo levers with auto-reset to neutral
Hydraulic Brake System: For reliable and responsive stopping
Tie-Down Rings: For easy transport securing
Engine Cover: Fully enclosed for protection and maintenance access
