USED 2022 MAKOR K2 SPRAY SYSTEM WITH KREMLIN GUNS AND PUMPS

Condition: Used – Great Condition
Year: 2022
Availability: Immediate

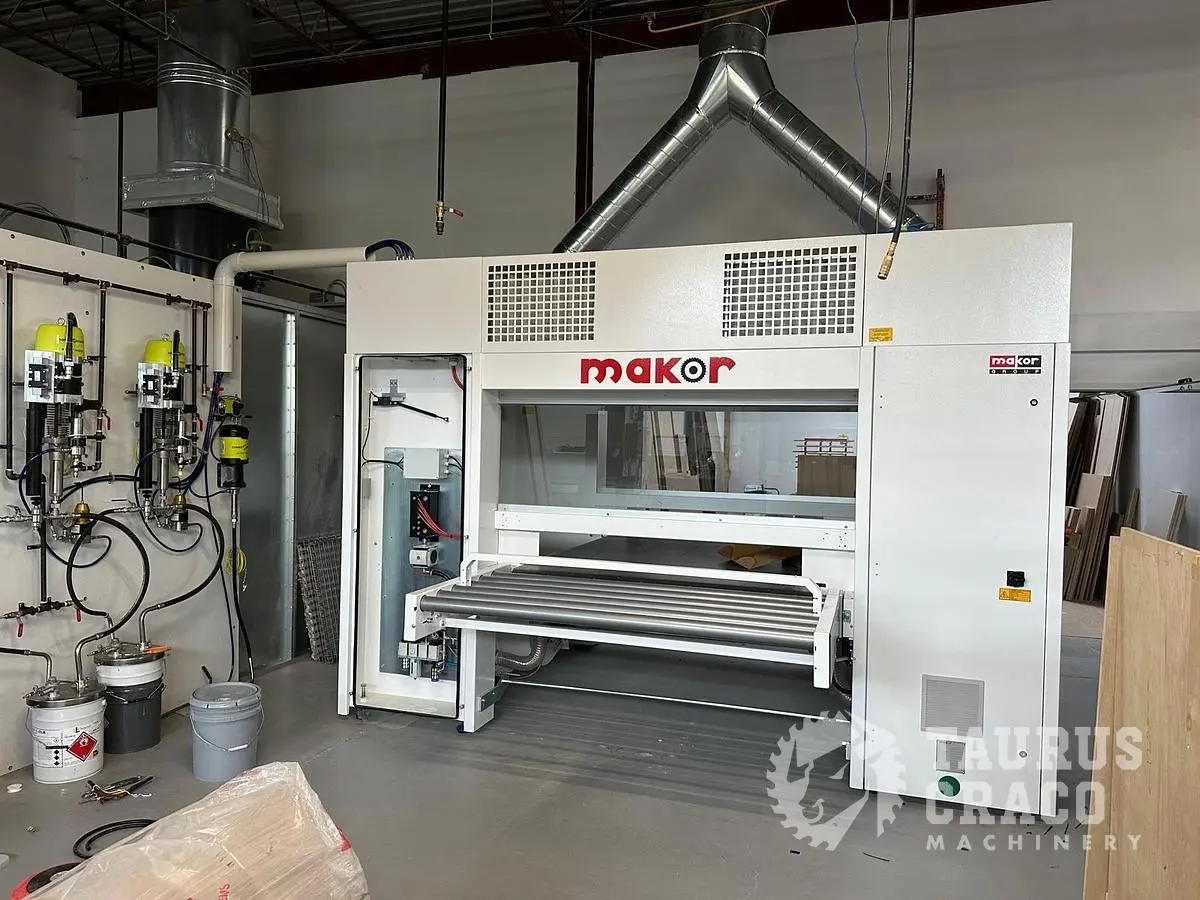

The Makor K2 (KTWO model “C”) is a compact, high‑performance twin‑arm reciprocating automatic spray line, engineered for consistent, high‑quality coating of cabinet components and flat parts. Its design makes it ideal both for shops entering automatic finishing for the first time and for established manufacturers looking for a reliable, space‑efficient spraying solution.

This machine is configured for surface and edge coverage and is suitable for water‑based or solvent‑based coatings, including primers, sealers, and finishes.

This offering includes a complete Kremlin spray gun and pump package, making it a turn‑key finishing solution rather than just the base Makor machine.
Length: Min: 300 mm / Max: 3,200 mm
Width: Min: 100 mm / Max: 1,300 mm
Thickness: Min: 6 mm / Max: 60 mm
Configuration: KTWO model “C” – Twin Arm Reciprocating Sprayer
Fluid Circuits: 3 independent high‑pressure circuits
Feed Speed:
Min: 1.2 m/min
Max: 5.0 m/min
Typical recommended operating range for surface & edge coating: 2.0–4.0 m/min
Twin oscillating spray arms, fully electronic and PLC‑controlled
Touch‑screen HMI operator interface:
Full control of spray arm motion
Recipe‑based program storage
Individual spray gun overspray and setup controls
2D part reading system:
Electronic barrier scans part dimensions
Guns open and close in real time
Improves transfer efficiency and reduces overspray
Fully pressurized spray cabin
Dual‑stage air filtration for intake and exhaust
Variable‑frequency controlled intake and exhaust fans
Designed to maintain balanced airflow and consistent finish quality

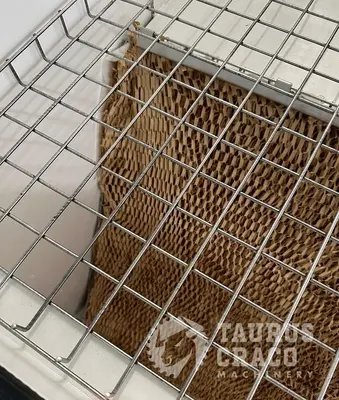

Multiple dry filter stages for effective paint particle capture

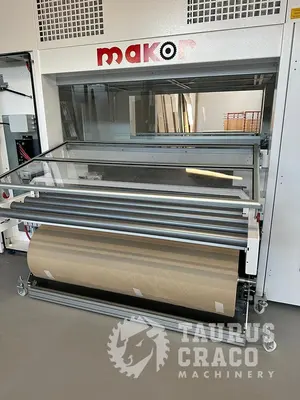

Integrated paper transport belt system:
Covers entire spray area
Eliminates internal overspray buildup
Paper indexes only when parts are detected, reducing consumable cost
Quick roller replacement and minimal cleaning requirements
Electrical: 480 V / 60 Hz / 3‑phase
Transformer included
CSA electrical certification included
Total installed power: approx. 10 kW
Air capacity: up to 10,000 m³/h
Working height: 900 mm ± 30 mm

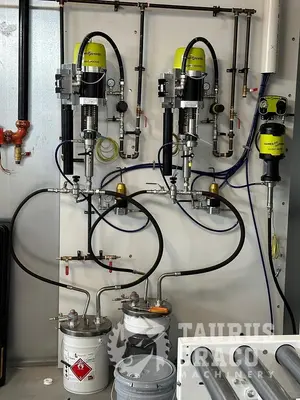

This Makor K2 is sold with a complete Kremlin spray system, already configured for Makor integration.
Kremlin automatic spray guns
Kremlin pumps with regulators and filtration
Agitated material containers
Circulation valves and fluid management components
Hose packages, fittings, and Makor‑specific mounting hardware
