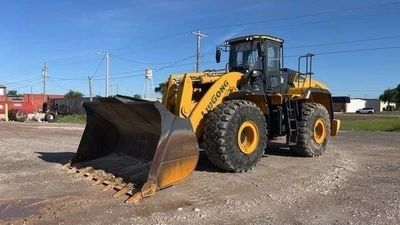

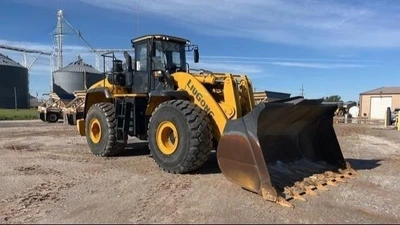

EROPS (Cab), A/C, Heat, Bucket w/Teeth | Machine Was Purchased New And Dealer Maintained Its Entire Life. Runs Exactly Like It Should And Is Equivalent To A Caterpillar 980M Wheel Loader | Engine Make And Model, Cummins QSM11 Tier 4 Final Stage V EPA Tier 2-3 Depending On Region
Gross Power, Around 375–385 Hp At 1,800 Rpm
Net Power, Around 356–371 Hp At 1,800 Rpm
Displacement, Approximately 10.8–11.8 L
Peak Torque, Approximately 1,776 Nm At 1,400 Rpm
Transmission And Drivetrain
Type, ZF Power-Shift Countershaft Model 4WG310 With Single-Stage Torque Converter
Gear Speeds, 4 Forward / 3 Reverse
Shift Modes, Manual Semi-Auto Full-Auto With FNR And Kick-Down Features
Hydraulics
System, Two Load-Sensing Axial Piston Pumps With Priority Steering
Main Relief Pressure, 26 MPa Cycle Time 11 Seconds Lift Dump Return
Breakout Force, Approximately 55,000 Lbf
Capacities And Weights
Operating Weight, About 67,400–68,900 Lb
Fuel Tank, 128 Gallons
Hydraulic System Capacity, 67 Gallons Engine Oil 8.7 Gallons Cooling System 10.8 Gallons Transmission And Torque Converter 13 Gallons Each Axle 17 Gallons
Rated Load Capacity, About 19,800 Lb
Loader Performance
Bucket Capacity, 7.1 Yd³ Standard Options From 5.9 Yd³ To 11.8 Yd³
Tipping Load Full Turn, About 45,400 Lb
Dump Clearance At Full Height, 10 Ft 11 In Dump Reach At Full Height, 4 Ft 10 In
Dimensions And Mobility
Overall Dimensions With Bucket Down, 30 Ft 8 In Long 10 Ft 5 In Wide 12 Ft 4 In High To Cab
Turning Radius, Outside Of Tire About 23 Ft Bucket Carry About 25 Ft 4 In
Travel Speed, Forward About 24 Mph Reverse About 16.5 Mph
| Weight | 60428.7 | 60428.7 |
Status: Available
Hours: 2200
Weight: 60428.7
Rental Rate: $10000
Rate Schedule: DAY: $1400
Rate Schedule: WEEK: $2888
Rate Schedule: 3 MOS: $30000
Rate Schedule: 6 MOS: $60000
Attachment: Heavy Duty Rock Bucket 5.25yd³
