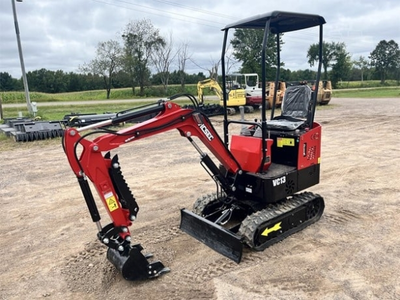

USED 2025 Visec VC180K

OROPS, Blade, Auxillary Hydraulics, Hydraulic Thumb, 12" Digging Bucket -- Engine Make
Laidong/ Kubota Engine Tier 5
Engine Model
385/ D722
Engine Power /Rotation speed
18.2KW/10.2kw14HP)2500rpm
Number of cylinder
3
Maximum Travel speed
4km/h
Width of track shoe
230mm
Number of track shoe per side
38pcs
Number of upper roller per side
1
Number of bottom roller per side
3
Performance Parameter
Standard Bucket capacity
0.03m³
Swing speed
9 rpm
Max. Grade ability
35°
Maximum Bucket digging force
18KN
Maximum Arm digging force
11KN
Hydraulic system pressure
18.2Mpa
Machine weight
1650kg
Machine Size
Overall dimension (L*W*H)
2550*1100/1400*2310mm
Wheel base
1100mm
Chassis width
1100mm
Axle base(Track length on ground)
1300mm
Track width
180mm
Min.Ground clearance
380mm
Working Range
Maximum Digging height
2740mm
Maximum Dumping height
2100mm
Maximum Digging depth
2150mm
Maximum Vertical digging depth
2320mm
Maximum Digging radius
2400mm
Minimum swing radius
1190mm
Maximum Lifting height of blade
325mm
Maximum Cutting depth of blade
175mm
Boom swing angle(Left)
75°
Boom swing angle(Right)
45°

Status: Available
Hours: 9
Weight: 3637.0
Rental Rate: $1900
Rate Schedule: DAY: $285
Rate Schedule: WEEK: $633
Rate Schedule: 3 MOS: $5700
Rate Schedule: 6 MOS: $11400
Attachment: General Purpose Bucket
