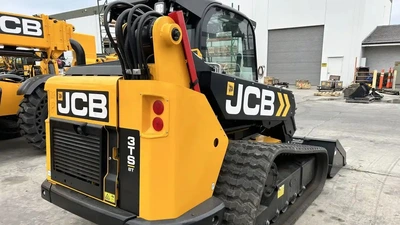

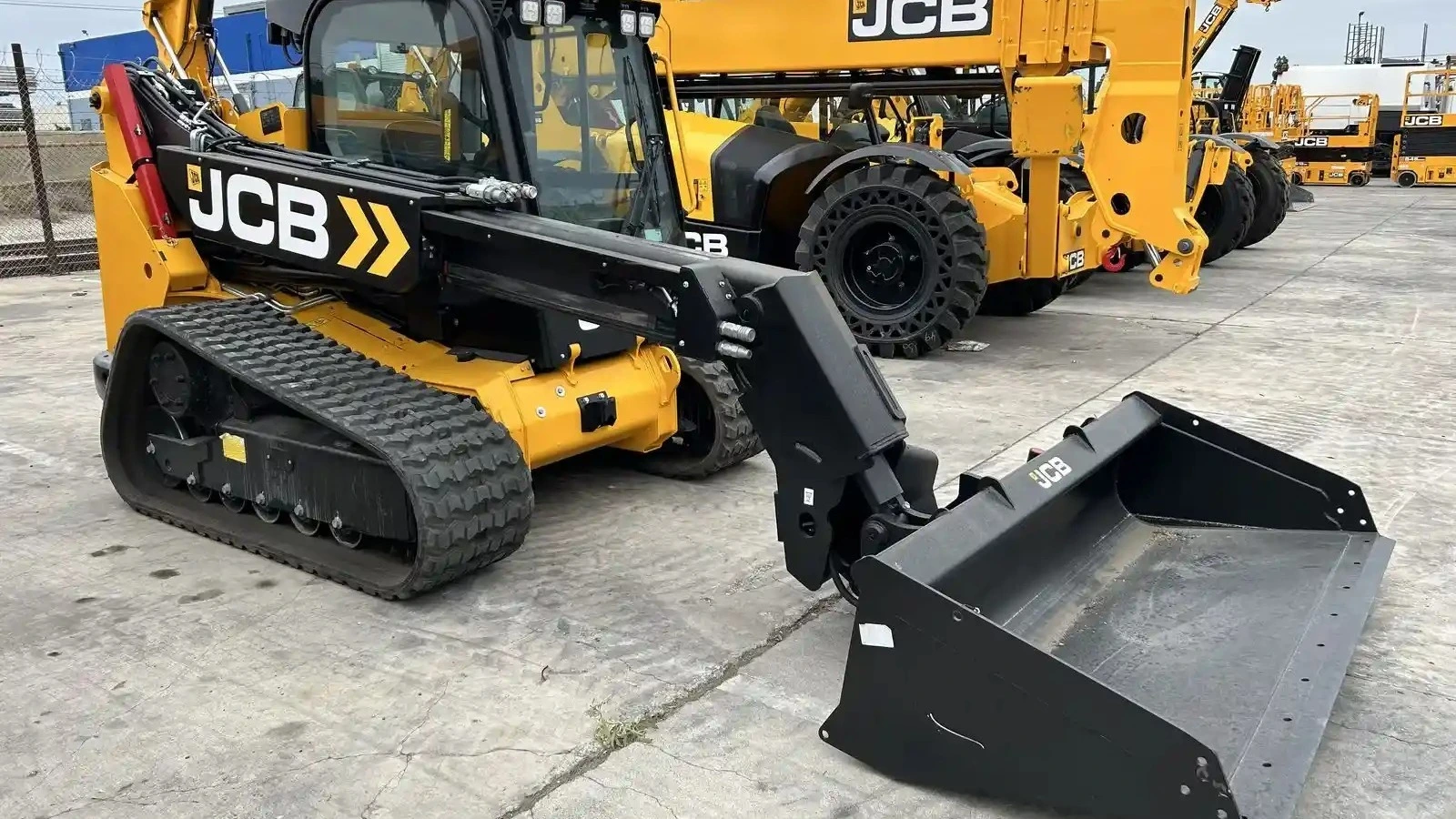

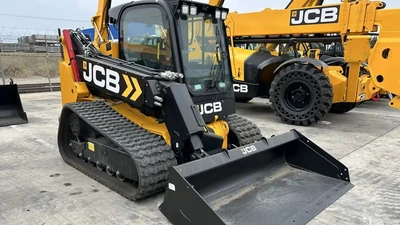

EROPS (Cab), A/C, Heat, Bucket w/Edge | JCB 3TS-8T Teleskid Loader Specification Sheet: Engine Type Turbocharged Diesel JCB EcoMAX, Gross Engine Power 74 HP, Emission Standard Tier 4 Final, Displacement Approximately 268 cu In. Rated Operating Capacity Retracted 3,695 Lb @ 35% Tipping Load, Rated Operating Capacity Extended Approximately 1,614 Lb, Maximum Lift Height At Hinge Pin 13' 3", Forward Reach 8', Dig Depth Below Ground Approximately 3'. Hydraulic Standard Flow Approximately 24 GPM, Optional High Flow Approximately 33 GPM. Operating Weight With Cab Approximately 12,615 Lb, Operating Weight With Canopy Approximately 12,482 Lb. Width Over Tracks Approximately 78.8", Overall Height Approximately 82.7", Length With Bucket Approximately 149.6", Ground Clearance Approximately 9.4", Track Width Approximately 17.7", Track Contact Length Approximately 82.7". Transmission Electro-Hydraulic Hydrostatic, Travel Speed Single Speed Approximately 5.7 MPH, Two Speed Approximately 7.8 MPH. Operator Cab Climate Controlled With ROPS/FOPS Protection, Controls Electric Over Hydraulic With Multi-Function Joystick, Display 7" Touchscreen, Visibility Approximately 270° Panoramic View, Optional Canopy Available. Standard Features Side-Entry Door, Bucket Positioning Leveling System, Telematics LiveLink.
| Weight | 12614.94 | 12614.94 |
Status: Available
Hours: 7.9
Weight: 12614.94
Rental Rate: $4500
Rate Schedule: DAY: $675
Rate Schedule: WEEK: $1500
Rate Schedule: 3 MOS: $13500
Rate Schedule: 6 MOS: $27000
Attachment: Pallet Forks
Attachment: Skid Steer Bucket
