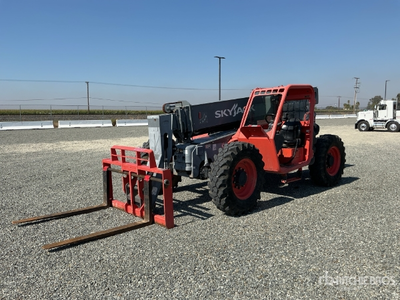

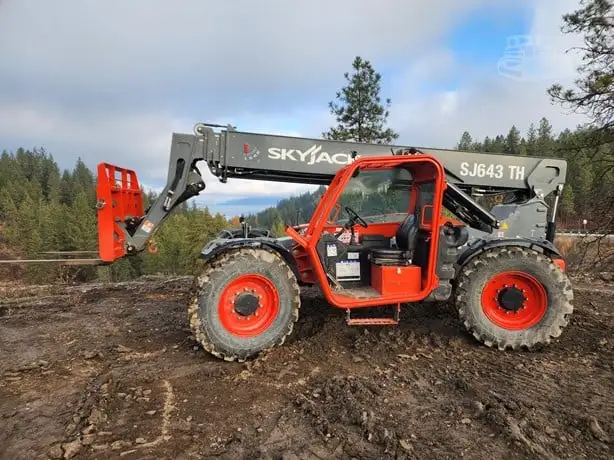

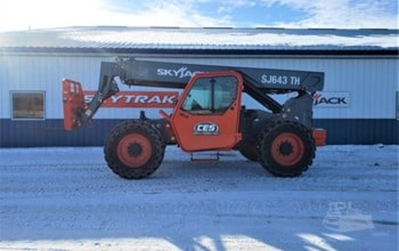

The Skyjack SJ643 TH telehandler offers a maximum lift capacity of 6,000 lbs (2,722 kg) and a maximum lift height of 43' 4" (13.21 m). It features a maximum forward reach of 28' 7" (8.71 m) with a rated lift capacity of 1,000 lbs (454 kg) at that reach. At its maximum lift height, it maintains a capacity of 6,000 lbs (2,722 kg). The telehandler is powered by a 74 hp / 221 lb-ft Deutz TCD 2.9L Tier 4 Final engine, eliminating the need for a Diesel Particulate Filter (DPF) or Diesel Exhaust Fluid (DEF). It employs a 3-speed Dana powershift transmission and Dana axles, achieving a maximum forward travel speed of 17 mph (27 km/h) and a drawbar pull of 17,750 lbs. The SJ643 TH has an operating weight of 20,706 lbs (9,392 kg) and dimensions including an overall length (less forks) of 19' 6" (5.94 m), a stowed height of 7' 11" (2.41 m), and an overall width of 8' 5" (2.56 m). It offers a ground clearance of 19" (48.3 cm) and an outside turning radius of 147" (3.73 m). Standard features include auxiliary hydraulics, an engine block heater, a quick attach carriage mount, rear and side windows, a suspension seat, a single multifunction pilot-operated joystick control, an in-cab engine multifunction display, hydraulic test ports, a lockable in-cab storage box, a rear towing hitch pin, fiberglass engine cowling, and steel component and access covers
| Weight | 20706.0 | 20706.0 |
Status: Available
Weight: 20706.0
Rental Rate: $4200
Rate Schedule: DAY: $630
Rate Schedule: WEEK: $1550
Rate Schedule: 3 MOS: $12600
Rate Schedule: 6 MOS: $25200
