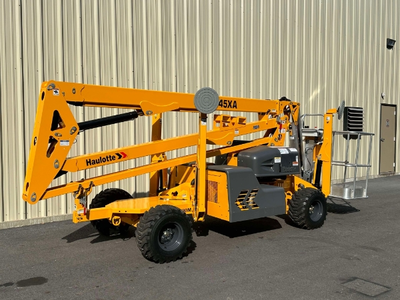

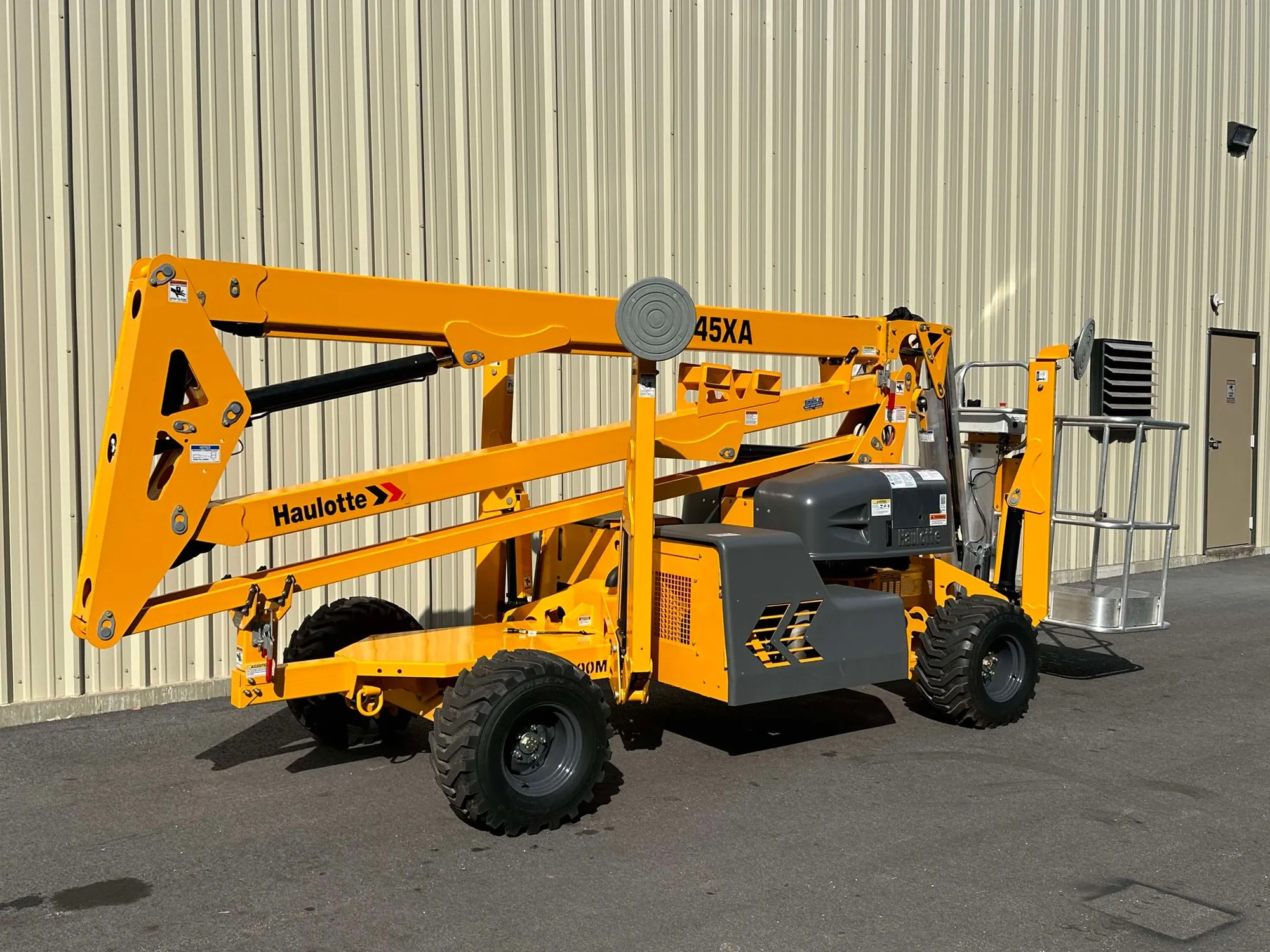

USED 2021 Haulotte 45XA

Technical Specifications
Working Height: 51 ft
Platform Height: 45 ft
Horizontal Outreach (from centerline): 27 ft
Horizontal Outreach (from edge of footpad): 21 ft
Up and Over Height: 20 ft 9 in
Lift Capacity: 500 lb
Platform Size: 5 ft x 2 ft 6 in
Stowed Dimensions (L x W x H): 18 ft 2 in x 5 ft 6 in x 6 ft 7 in
Wheelbase: 8 ft 9 in
Ground Clearance: 6 in
Outrigger Footprint: 12 ft 4 in x 11 ft 4 in
Turntable Rotation: 350° non-continuous
Jib Length: 4 ft 3 in
Jib Vertical Motion: 150° (+70° / -80°)
Drive Speed: Up to 4 mph
Gradeability: 45%
Turning Radius (2WS): 10 ft
Turning Radius (4WS): 5 ft 4 in
Tire Size: 26 x 12 Bar lug
Batteries: 4 x 6V, 260 Amp-hr
Engine: 26.5 hp gas
Weight: 5,200 lb
Standard Equipment
Hydraulic outriggers
Automatic leveling system (12.5° capability)
Self-leveling platform
110V GFI-protected outlets (platform & base)
Air and water lines to platform
4,000 W generator
Dual power system (DC/Gas)
Battery condition indicator
Hour meter
Tilt alarm/sensor
Spring-applied hydraulic released brakes
Inboard 25 amp charger
Bar lug tires
Easy-to-use controls
Optional Features
Turf tires
Flashing beacon
Fluorescent tube caddy
Tool tray
Manual platform rotator
Material lifting hook

Status: Available
Hours: 1 hrs
Weight: 5200.0
Rental Rate: $2820
Rate Schedule: DAY: $423
Rate Schedule: WEEK: $940
Rate Schedule: 3 MOS: $8460
Rate Schedule: 6 MOS: $16920
