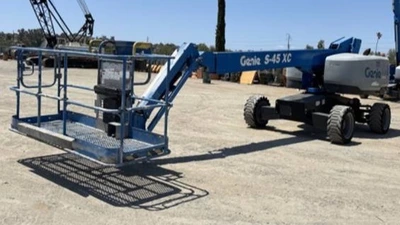

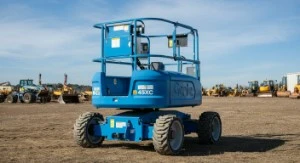

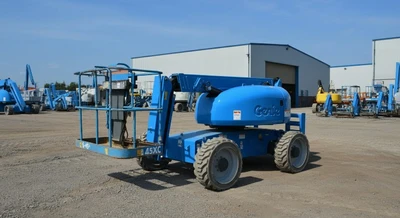

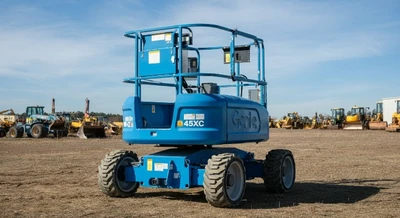

USED 2019 Genie S-45XC

Platform Height: 44 ft 6 in
Working Height: 50 ft 6 in
Horizontal Reach: 36 ft 2 in
Below Ground Reach: 4 ft 2 in
Platform Capacity (Dual):
Unrestricted: 660 lb
Restricted: 1,000 lb
Occupants Allowed:
2 (Unrestricted)
3 (Restricted)
Weight:
Standard Tires: ~16,300 lb
With TraX: ~17,540 lb
Drive Speed:
Stowed: 4 mph
Raised: 0.68 mph
Dimensions (Stowed):
Length: 31 ft 1 in
Width: 8 ft 2 in
Height: 8 ft 3 in
Ground Clearance: ~12.5 in
Features
Xtra Capacity dual-zone platform
Load sense and auto envelope control
Chassis tilt sensor for rough terrain
Optional TraX 4-point track system
Jib length: 5 ft
Platform rotation: 160°
Turntable rotation: 360° continuous
Onboard diagnostics (CAN bus)
Optional Lift Power generator up to 12 kW
Power Options
Deutz 49 hp diesel (Tier 4 Final)
Perkins or Ford gas/LPG options available
