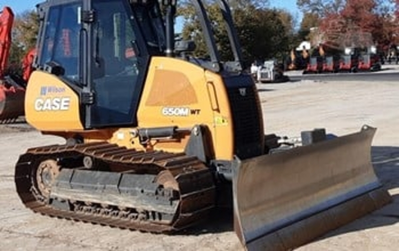

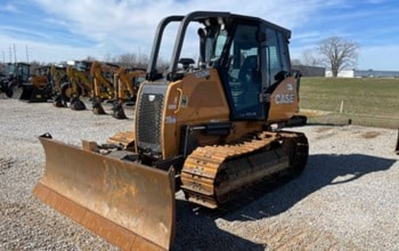

2023 Case M650 WT Dozer- EROPS (Cab), A/C, Heat, Wide Tracks, PAT-Blade, MS Ripper, 3 Year Maintenance Contract----Engine: FPT F5C F5HFL463D*G003, Tier 4 Final certified
Net Horsepower: 74 hp (55 kW)
Operating Weight: 15,997 lb (7,256 kg)
Blade Width: 108 in (2.73 m)
Blade Capacity: 1.89 yd³ (1.44 m³)
Max Drawbar Pull: 39,086 lb (173.9 kN)
Max Travel Speed: 5.0 mph (8 km/h)
Fuel Tank Capacity: 40.8 gal (154.4 L)
Undercarriage: SALT (Sealed and Lubricated Track) system
Drivetrain & Hydraulics
Transmission: Dual-path hydrostatic with single-lever electronic straight tracking
Hydraulic Pump Flow: 20.3 gpm @ 3,000 psi (78.8 L/min @ 20,880 kPa)
Blade Control: Single-lever electro-hydraulic control for lift, angle, and tilt
Operator Environment
ROPS Canopy: Isolation mounted with single-lever control for speed, steering, and direction
Seat: Vinyl mechanical suspension seat that tilts for access
Seat Belt: Retractable 3 in (76 mm)
Rearview Mirror: Standard
Optional ROPS Cab: Includes Bluetooth radio and additional rear mirror
Optional Equipment
Rear-Mounted Equipment:
Ripper: 5-position with 3 shanks
Hydraulic pump with PTO
Blades:
96 in (2.44 m) LT
108 in (2.73 m) LT/WT
124 in (3.15 m) WT/LGP
Other Options:
Case Max-Life track
Front counterweight
Severe cold weather package
Cold Start (CCV heated lines)
Rear-view Camera (Cab only)
Warranty & Telematics
CASE ProCare:
3-year/3,000-hour full-machine factory warranty
3-year/2,000-hour planned maintenance contract
5-year CASE SiteWatch telematics subscription
Let me know if you want this in PDF format or need a comparison with other dozer models.
| Weight | 16839.0 | 16839.0 |
Status: Available
Hours: 100
Weight: 16839.0
Rental Rate: $5604
Rate Schedule: DAY: $841
Rate Schedule: WEEK: $1868
Rate Schedule: 3 MOS: $16812
Rate Schedule: 6 MOS: $33624
Attachment: Power Angle Tilt Blade
Attachment: Multi Shank Ripper
