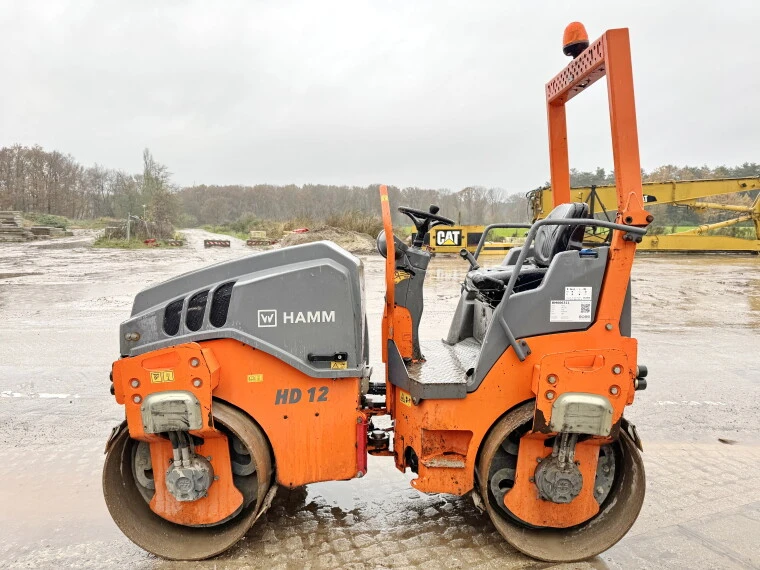

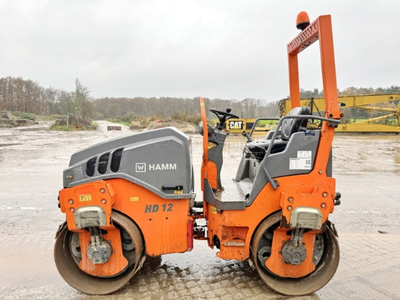

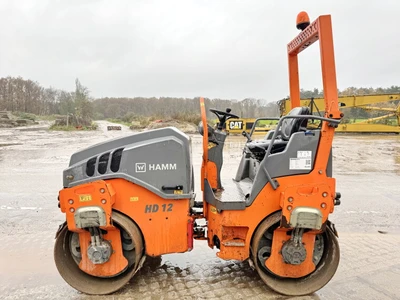

General Model: HD12 VV Type: Tandem Vibratory Roller Emissions: EPA Tier 4 / EU Stage V Weights Operating Weight (with ROPS): 5,942 lb Max Operating Weight: 7,519 lb Static Linear Load: 62.2 lb/in (front), 63.3 lb/in (rear) Dimensions Length: 99.6 in Width: 51.6 in Working Width: 49.2 in Center Distance Between Drums: 66.9 in Ground Clearance: 11 in Height (with ROPS): 97.4 in Turning Radius (inside): 93.3 in Drums & Vibration Drum Width: 47.2 in (front/rear) Drum Diameter: 28.3 in (front/rear) Drum Thickness: 0.6 in (front/rear) Vibration Frequencies: 65 Hz / 51 Hz (3,900 / 3,060 vpm) Amplitude: 0.018 in Centrifugal Force: 8,550 lb (first phase), 5,175 lb (second phase) Engine & Performance Engine: Kubota D1703-M-DI-E4B, 3-cylinder diesel Power: 24.8 HP @ 2,200 rpm Max Travel Speed: 6.3 mph Gradeability: 40% (without vibration), 30% (with vibration) Chassis, Steering & Systems Steering: Articulated 3-point pivot, ±8° swing angle Water System: Pressurized water sprinkling, 47.6 gal tank Fuel Capacity: 11 gal ROPS: Standard (foldable canopy optional) Sound Level: 106 dB(A) guaranteed, 104 dB(A) measured
| Weight | 5952.0 | 5952.0 |
Status: Available
Weight: 5952.0
Rental Rate: $2245
Rate Schedule: DAY: $337
Rate Schedule: WEEK: $750
Rate Schedule: 3 MOS: $6735
Rate Schedule: 6 MOS: $13470
