Basic Specifications
---------------------------------------------------

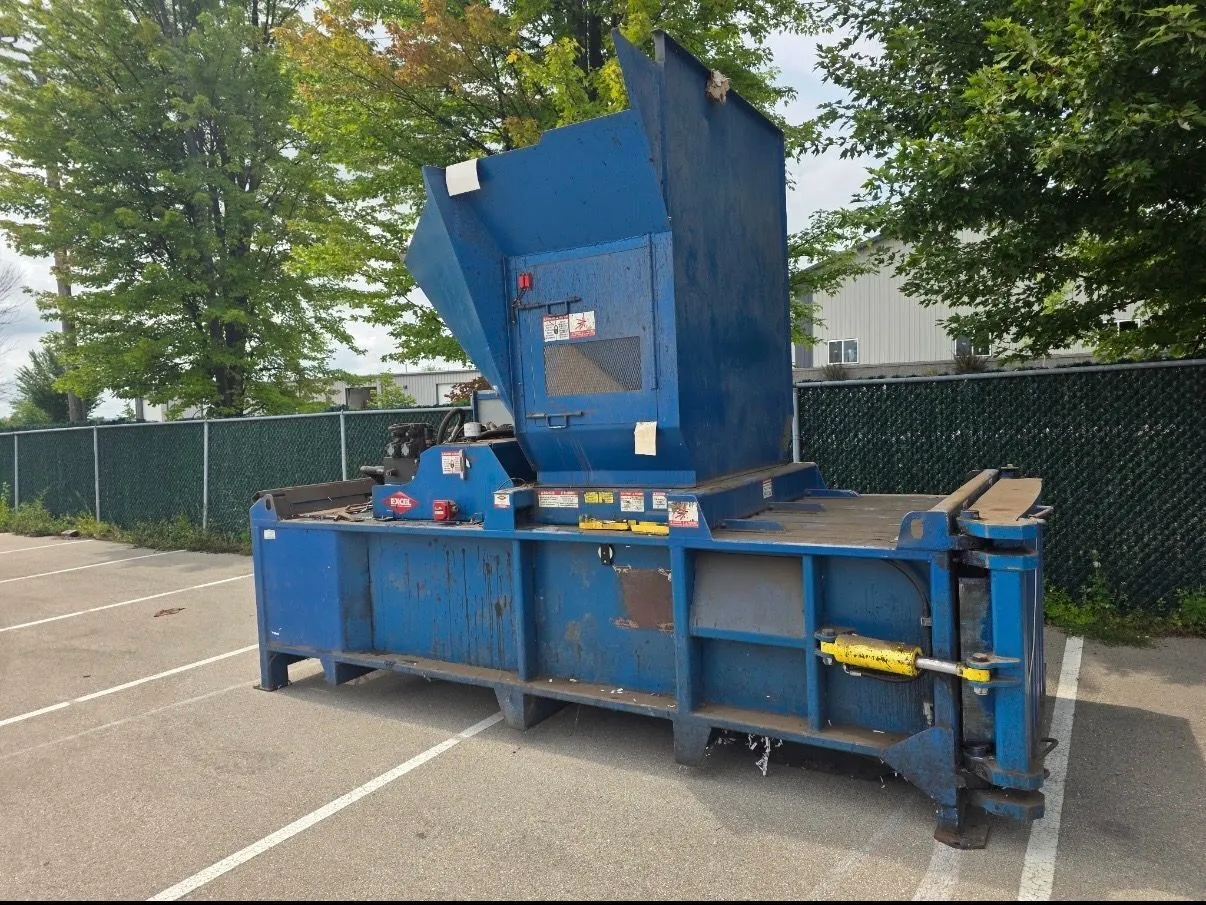

Model: Excel EX63
Motor Power: 50 HP electric motor
Cycle Time (Full): 2 minutes 30 seconds
Hydraulic System:
- Telescopic Cylinder: 9" bore, 400" stroke
- Carriage Cylinders (x2): 6" bore, 96" stroke
Operating Pressure: Up to 4020 PSI
Pump System:
- Rexroth VDP: 98.7 GPM
- D. Brown Gear Pump: 52 GPM
---------------------------------------------------
Bale Specifications
---------------------------------------------------
Bale Size (Nominal): 60” L x 48” W x 30” H
Bale Weight (OCC): Up to 1400 lbs
Feed Opening: 54" W x 35" L
Chamber Penetration: 32 inches
Wire Tie System: 6 fully guided wire tie slots
Bale Ejection: Semi-automatic full bale ejection
---------------------------------------------------
Construction & Components
---------------------------------------------------
Shear Blade: Removable, 4-sided cutting edges
Oil Filtration: 100% filtration w/ 20-micron fibers
Hydraulic Cooling: Yes
Wear Surfaces: AR400 steel
Control System: Programmable auto-cycle + manual mode
---------------------------------------------------
Additional Features
---------------------------------------------------
- Fully ejects completed bales
- Automatic bale sizing system
- Sealed, greased rollers
- High-capacity hydraulic with relief protection
- Optional remote display for loader operators
---------------------------------------------------
