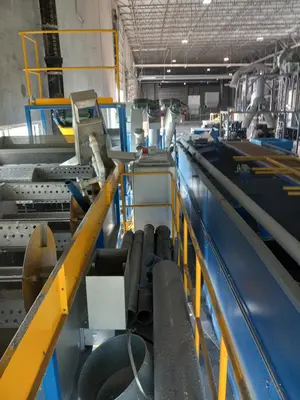

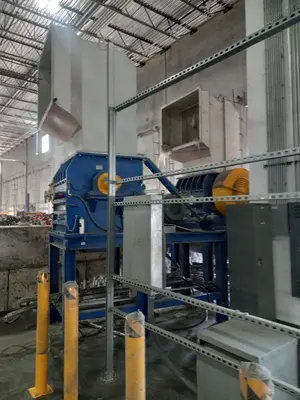

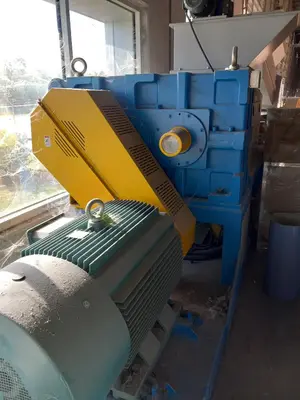

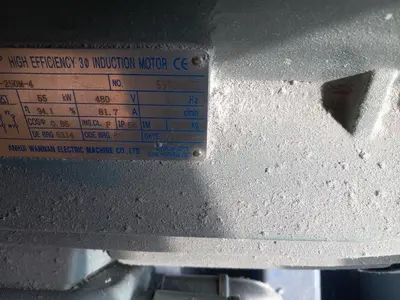

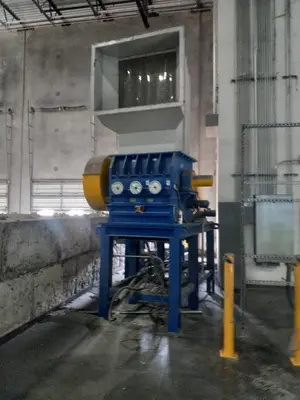

Amstar Machinery LTD Bottle Wash System

Amstar Machinery LTD Bottle Wash System

Water treatment RDAF-30 1

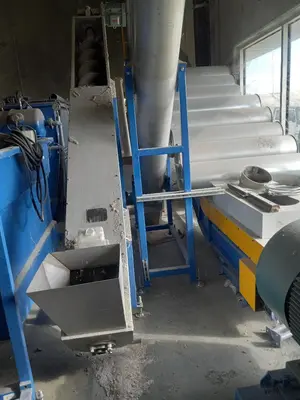

2 Screw Conveyor (feeding friction washer)

LX-356A – TS1000 Friction washer

By pass screw conveyor 1 LX356B, LX356C

Bypass screw Conveyor 2
Control Cabinet

Item. Model Description/technical specifications

01 RDAF-030 Dissolved Air Flotation 1 unit

Capacity: 0-20m3/hr

Material: carbon steel

02 N/A Clean Water Tank 1 unit

Material: carbon steel

Thickness: 6mm

Dimension: 4000*2000*2550mm

Effective Volume: 18.8m3

03 N/A Collection Water Tank 1 unit

Material: carbon steel

Thickness: 6mm

Dimension: 3000*2000*1960mm

Effective Volume: 10.8m3

Cover: Stainless Steel Screen

04 CP51.5-80 Submersible Pump 2 pcs

Flow rate: 30m3/h

Head: 10m

Power: 1.5kw

1:105 RY-1000 Chemical Dosing Unit

Material: PE

Volume: 1000L

1: 06 SEKO PAC Dosing Pump unit

Flow rate:

220L/h

Zhangjiagang

1: 07 PT-1000 Polymer Preparation Unit

Material: Stainless Steel

Volume: 1000L

1: 08 SEKO PAM Dosing Pump unit

Flow rate: 220L/h

Power:0.37kw

09 L35-65-2P In-line Pump 2 pcs

Flow rate: 30m3/h

Head: 28.5m

Power: 3.7kw

10 N/A Level Meter 2 pcs

Material of underwater: SUS304

Type: Electrode probe type level meter

1: 11 N/A Solenoid Valve

Brand: SANLIXIN

1: 12 N/A Pipeline of Emptying unit

Material: U-PVC

1: 13 N/A Sludge Collection Tank unit

Volume: 2m3

Material: PE

Pipeline material: U-PVC

1: 14 N/A Control System

Electric Component: Brand: Schneider

Technical

Skimmer system

Walkway & Handrail

Control Panel

1.1 chemical reaction tank 2 sets

Tank Reinforcement in Shell & Frame

1.1.1 Coagulant mixing tank Assembling unit 1 set

Mix axle Paddle

Reduction 480V, 60hz,3phase

Motor IP55, F Insulation N=0.4KW 72RPM

1 set: 1.1.2 Flocculant mixing tank Assembling unit

Mix axle Paddle

Reduction 480V, 60hz,3phase

Motor IP55, F Insulation N=0.4KW 48RPM

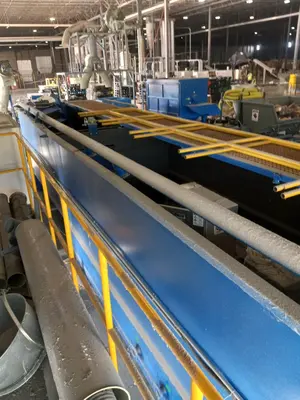

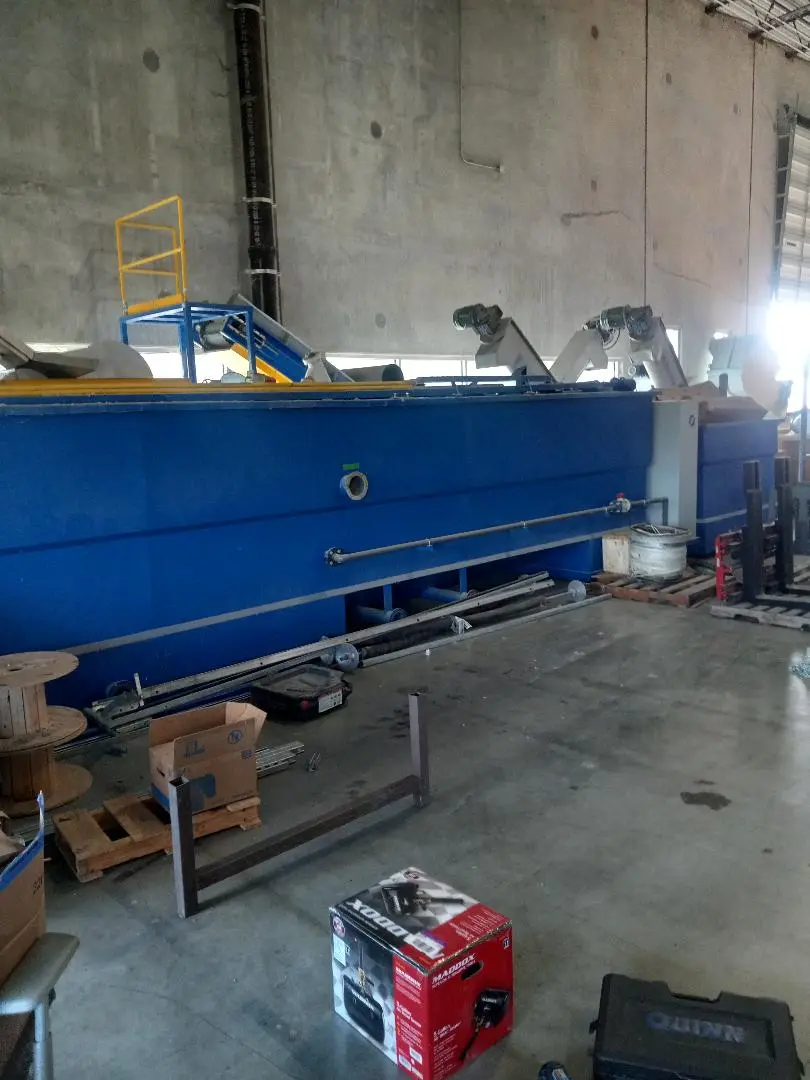

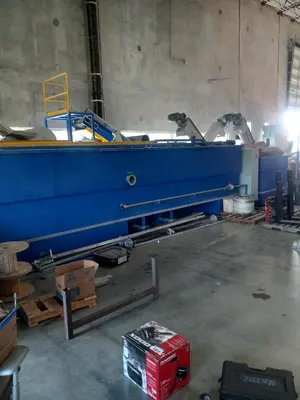

1 Set: 1.2 DAF Tank

Reinforcement

Clean water catch pipe

Outflow

1 set: 1.3 Compressor Vessel Tank Assembling unit 1

1 set: Air dissolving Tank

` set: Inside Components

Pressure gauge 2 pcs

Solenoid valve 1 pcs

Liquid level gauge 1 pcs

Pipes

Valve

Recycle Pump Lift=50m N=3KW 9m3/h 1 pcs

1: Air compressor N=1.5KW 0.2m3/min, 0.8Mpa

Micro bubble generator multiple pcs.

1 set: 1.4 Skimmer System in Shell & Frame

Motor Speed: 7RPM 1 pcs

Chain wheel 2 pcs

Scraper Axle

Control cabinet

Electrical components

1 set: 1.6 Hand Rail and Walkway Accordance: (GB 4053.4-1983)

Frame, Walkway and Ladder
