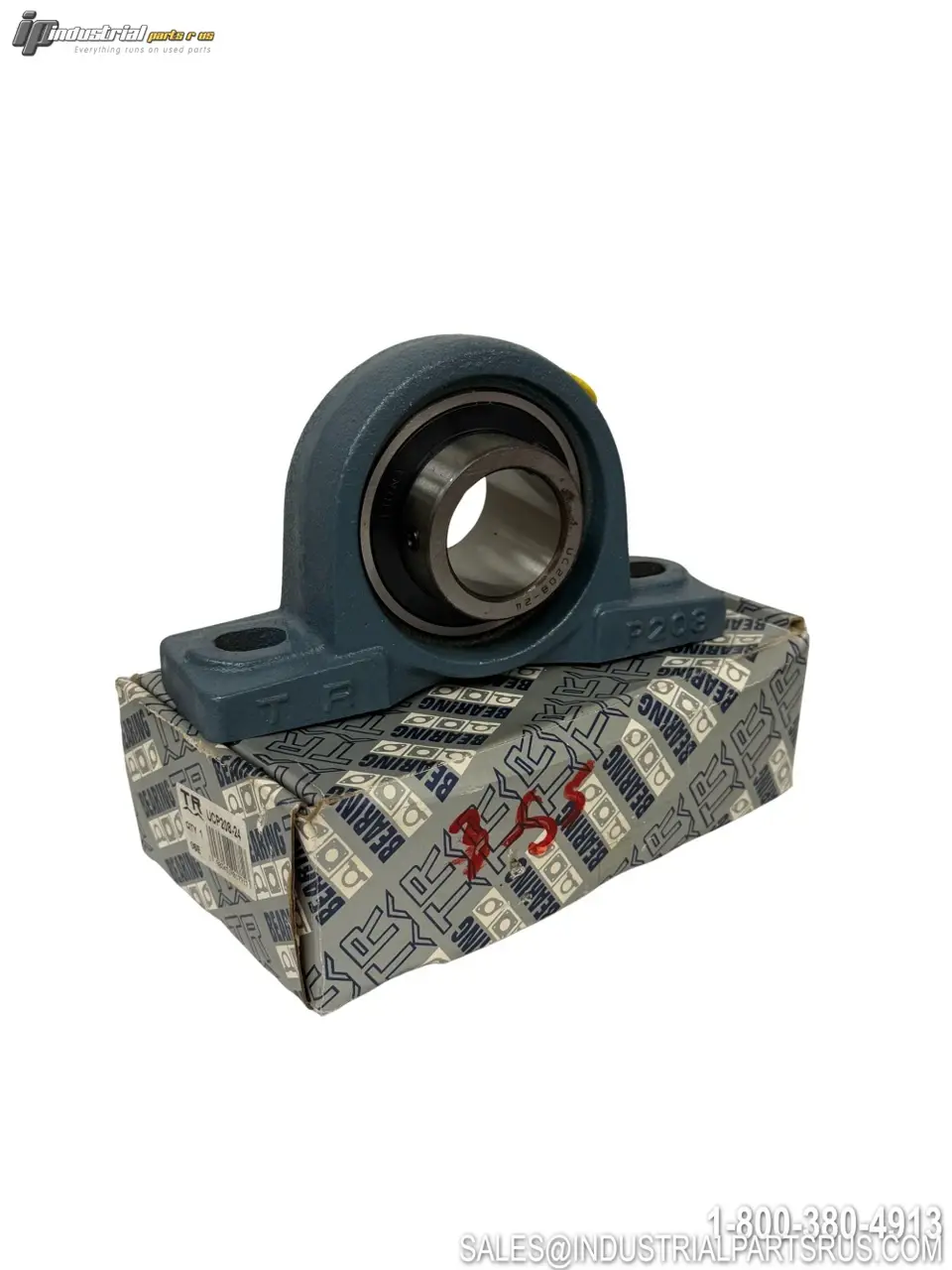

NEW TR UCP208-24

The TR UCP208-24 is a standard duty pillow block bearing featuring a cast iron housing with a 1-1/2 inch bore diameter. This two-bolt mounted bearing unit includes a UC208-24 ball bearing insert with set screw locking mechanism and grease fitting for relubrication. The self-aligning design makes it suitable for conveyor systems, agricultural equipment, and general industrial machinery applications.
Specification
Value
Brand
TR
Model/Part Number
UCP208-24
Bearing Type
Pillow Block
Bore Diameter
1-1/2 inch (38.1 mm)
Bearing Insert
UC208-24
Housing Material
Cast Iron
Housing Number
P208
Mounting Type
2-Bolt
Locking Type
Set Screw
Center Height
1.937 inch (49.2 mm)
Overall Height
3.858 inch (98 mm)
Bolt Centers
5.354 inch (146 mm)
Bolt Hole Size
0.669 inch (17 mm)
Bolt Size
1/2 inch
Housing Length
7.25 inch (189 mm)
Housing Width
2.36 inch (60 mm)
Seal Type
Double Seal
Grease Fitting
Yes
Self-Aligning
Yes
Weight
4.67 lbs (6 lbs shipping)
We warranty all items for 30 days from date of purchase.
