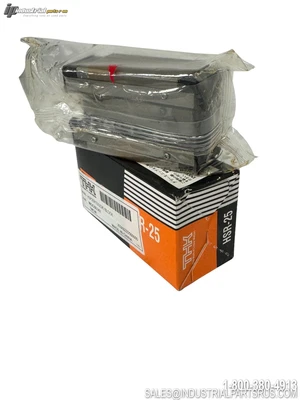

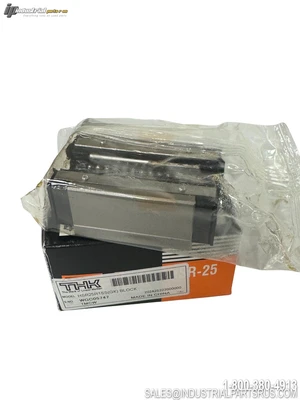

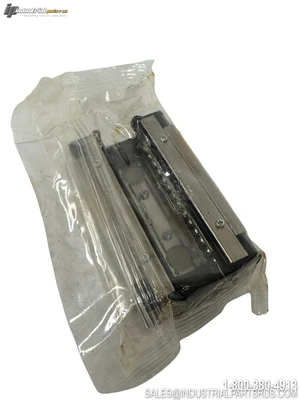

The THK HSR25R1SS is a precision linear guide carriage designed for high-performance linear motion applications. This compact design features four-row ball bearing construction with 45-degree contact angles for optimal load distribution in all directions. The carriage includes comprehensive sealing with end seals, side seals, and inner seals for reliable operation in demanding environments.
Specification
Value
Brand
THK
Model/Part Number
HSR25R1SS
Series
HSR-R
Nominal Rail Size
25mm
Rail Width
23mm
Dynamic Load Capacity (C)
19.9kN / 27.6kN
Static Load Capacity (C0)
36.4kN
Overall Length (L)
83.1mm
Height (M)
40mm
Width (W)
48mm
Mounting Bolt
M6 x 8mm
Seal Type
SS (End + Side + Inner Seals)
Weight
0.54kg / 0.556kg
Preload
Normal
Block Type
Narrow Block
Ball Rows
Four-row
Material
Steel, Plastic
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: AI1408
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Country/Region of Manufacture: China
Manufacturer: THK
Part Number: HSR25R1SS
Shelf: GS 2 Tub 2
Model: HSR25R1SS
MPN: HSR25R1SS
Type: Linear Guide
