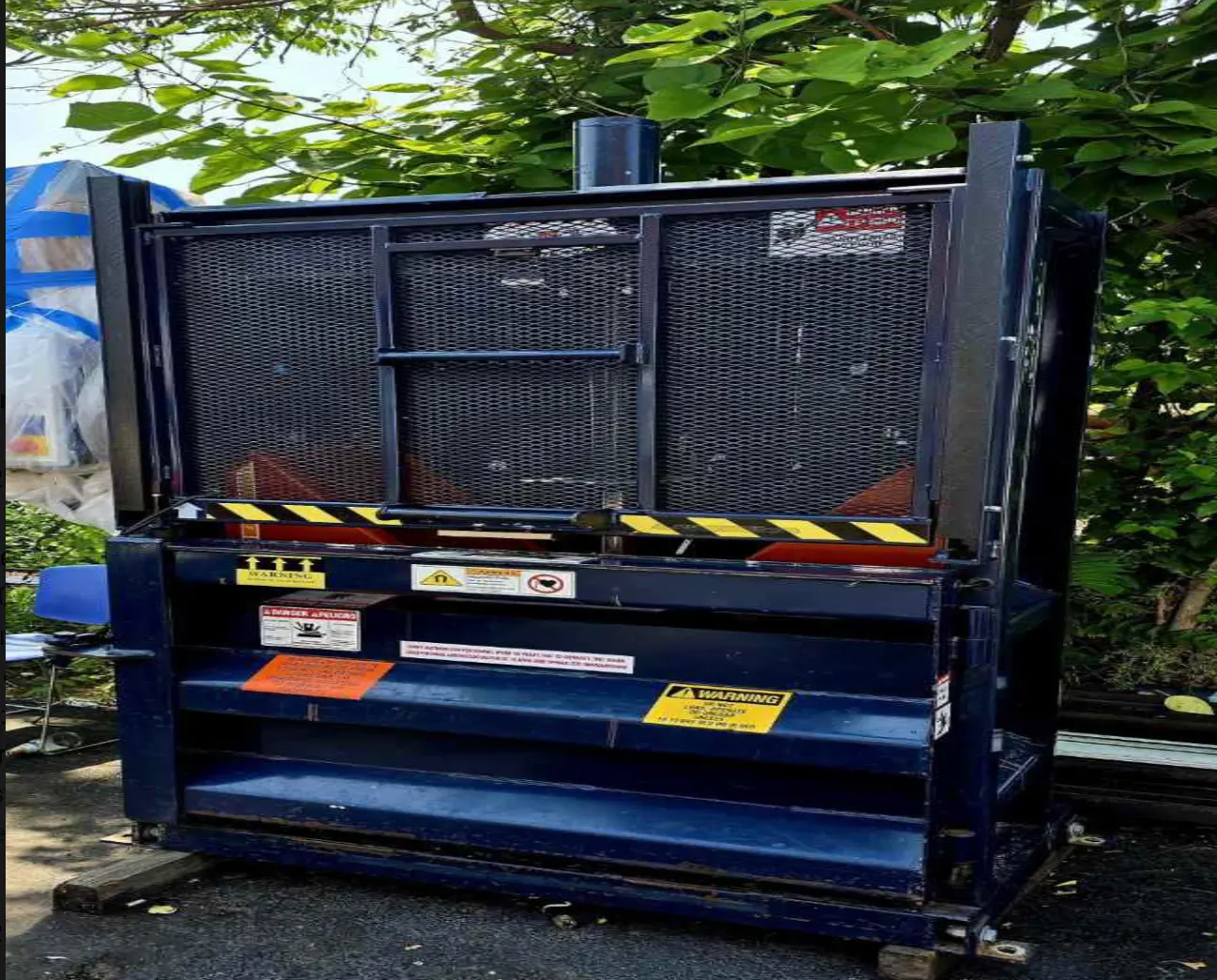

USED CRAM-A-LOT VB-46-LD

Performance / Bale Specifications

Nominal bale size: 46″ wide × 24″ deep × 36″ high (depth × width × height) for this model.

Bale weight (OCC) “up to”: 400 lbs

Average bale weights noted in used-listing: 400 lbs corrugated, 480 lbs paper/shrink wrap.

Platen force: 31,800 lbs (for the 46” × 24” × 36” configuration)

Platen face pressure: ~41 psi.

Cycle time (average): 39 seconds.

_______________________________________________

Mechanical / Hydraulic / Electrical

Hydraulic operating pressure: ~2,000 psi.

Pump capacity (for this model): 6 gpm.

Motor (3-phase, 208/230/460 V): 5 hp.

Electrical requirements: 208/230/460 VAC, 3-phase (with optional 220 V single phase for certain models).
___________________________________________________

Dimensions & Weight

Installed overall height: 9′ 9″ (for the VB-46-LD)

Frame height: 6′ 11″

Overall width: 5′ 8″ (for this model)

Overall depth with door closed: 3′ 1″ (for this model)

Unit weight: Approximately 2,750 lbs.
