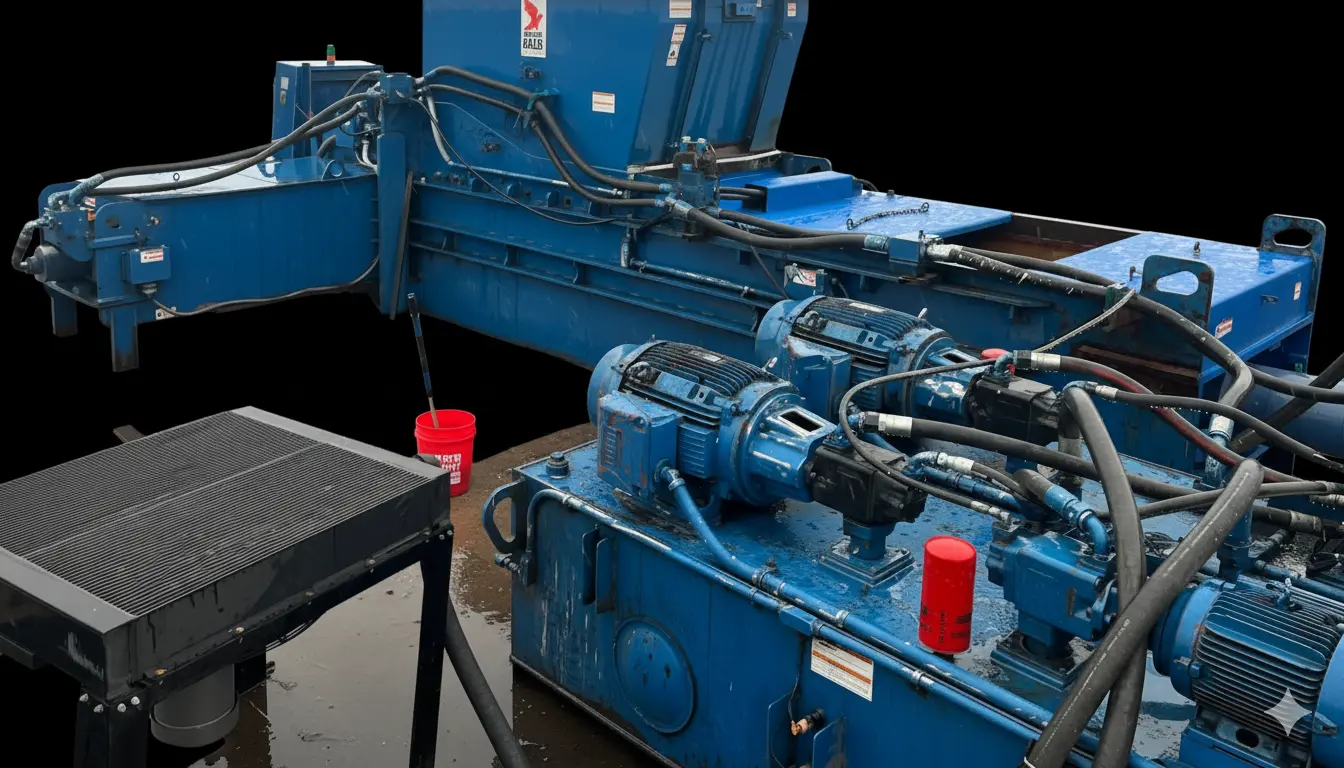

USED AMERICAN BALER CO. RAM II-7021-100 Baler

⚙️ Specifications

Main Cylinder: 12″ bore × 126″ stroke
Eject Cylinder: 8″ bore
Baling Force: ~339,000 lb (≈ 170 tons)
Feed Opening: 94.3" L x 58" W
Charge Box: 94"L x 58"W
Bale Size: 30" H x 45" W x 60" L
Drive Power: Dual 75 HP motors (150 HP total)
Cycle Time: Approx. 15–25 seconds per cycle (material dependent)
Weight (approx.): ~38,000 lbs

| Material Type | Estimated Output (lbs/hr)
| ---------------------------------- | -----------------------------------
| **OCC (Cardboard)** | | 1,350 lb/hr
| **Mixed Paper / ONP / MOW** | | 1,600 lb/hr
| **PET Bottles / Plastics** | | 1,150 lb/hr
| **Aluminum Cans (UBC)** | | 1,000 lb/hr
| **Steel Cans / Light Non-Ferrous** | | 1,800 lb/hr

🧩 Suitable Materials
OCC (Old Corrugated Cardboard)
Mixed Paper / ONP / MOW
HDPE and PET Bottles
Aluminum & Steel Cans (UBC)
Light Non-Ferrous Metals
Mixed Plastics / Film
Recyclable Containers & Fibers

⚡ Key Features
Dual-ram design for uniform, dense bales
Automatic wire-tying system for continuous operation
Heavy-duty hydraulic system with independent pressure control
Robust structural steel frame
Capable of handling a wide range of recyclable materials
Produces export-grade, stackable bales
