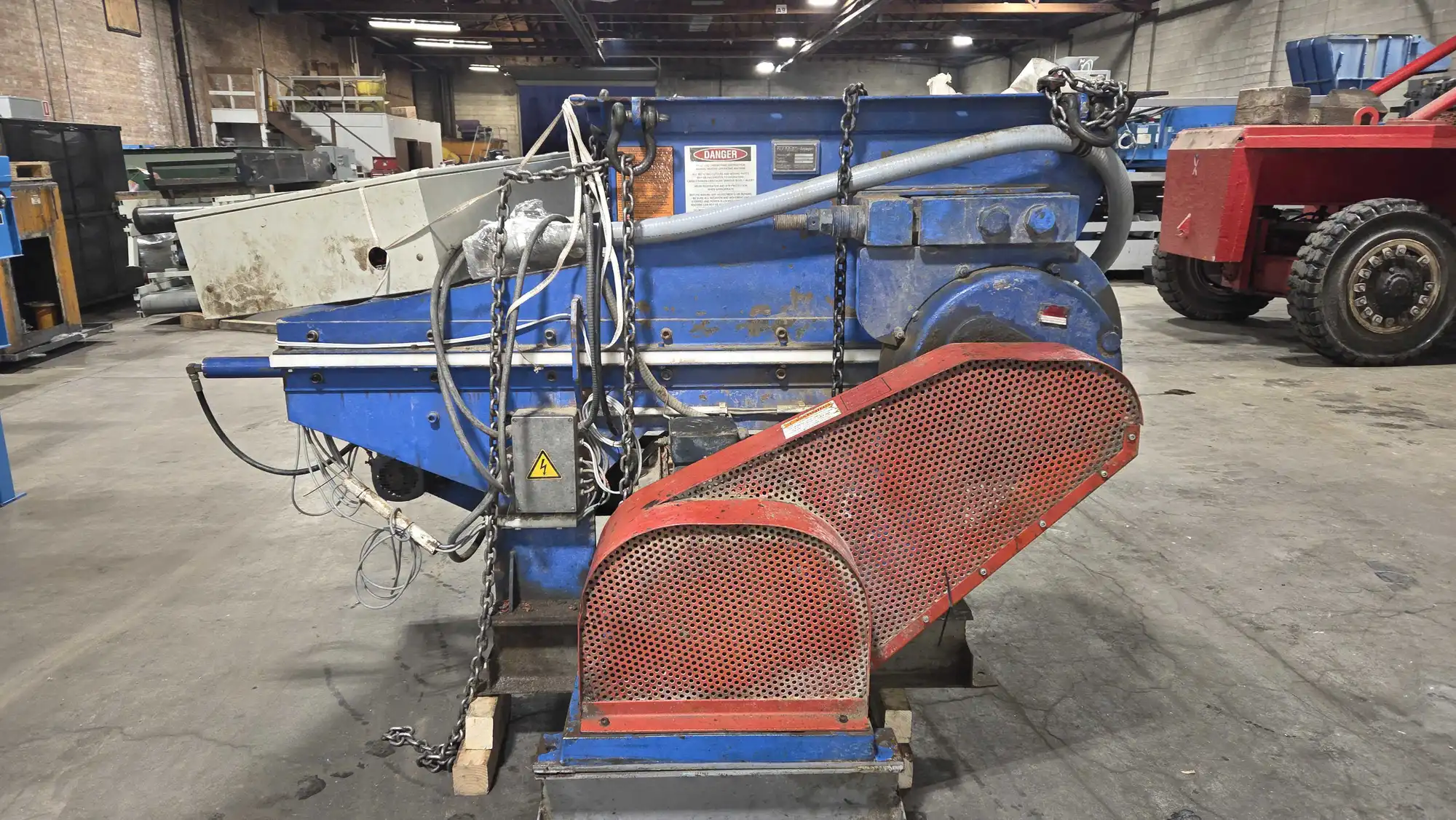

USED VECOPLAN, LLC VAZ 120/125

Manufacturer: Vecoplan GmbH

Type: Single-Shaft Industrial Shredder

Rotor Diameter: ~490 mm (19.3 in)

Rotor Width: 1,250 mm (49 in)

Approx Chamber Length: 990 mm (39 in)

Number of Cutters: 60–90 (depending on knife size)

Rotor Speed: ~120 rpm

Motor Power: 30 HP 3/60/240/460 Volt Electric Motor

Control Panel: Included

Hydraulic Ram Feed: Yes (horizontal pusher system)

Screen Size Options: 20–100 mm (variable for output size)

Hopper Opening: Approx. 1,250 x 1,500 mm (49 x 59 in)

Throughput Capacity: 1,500–3,000 lbs/hr (depending on material and screen)

Overall Dimensions (approx.): 130" L x 80" W x 100" H

Weight: ~9,000–11,000 lbs
