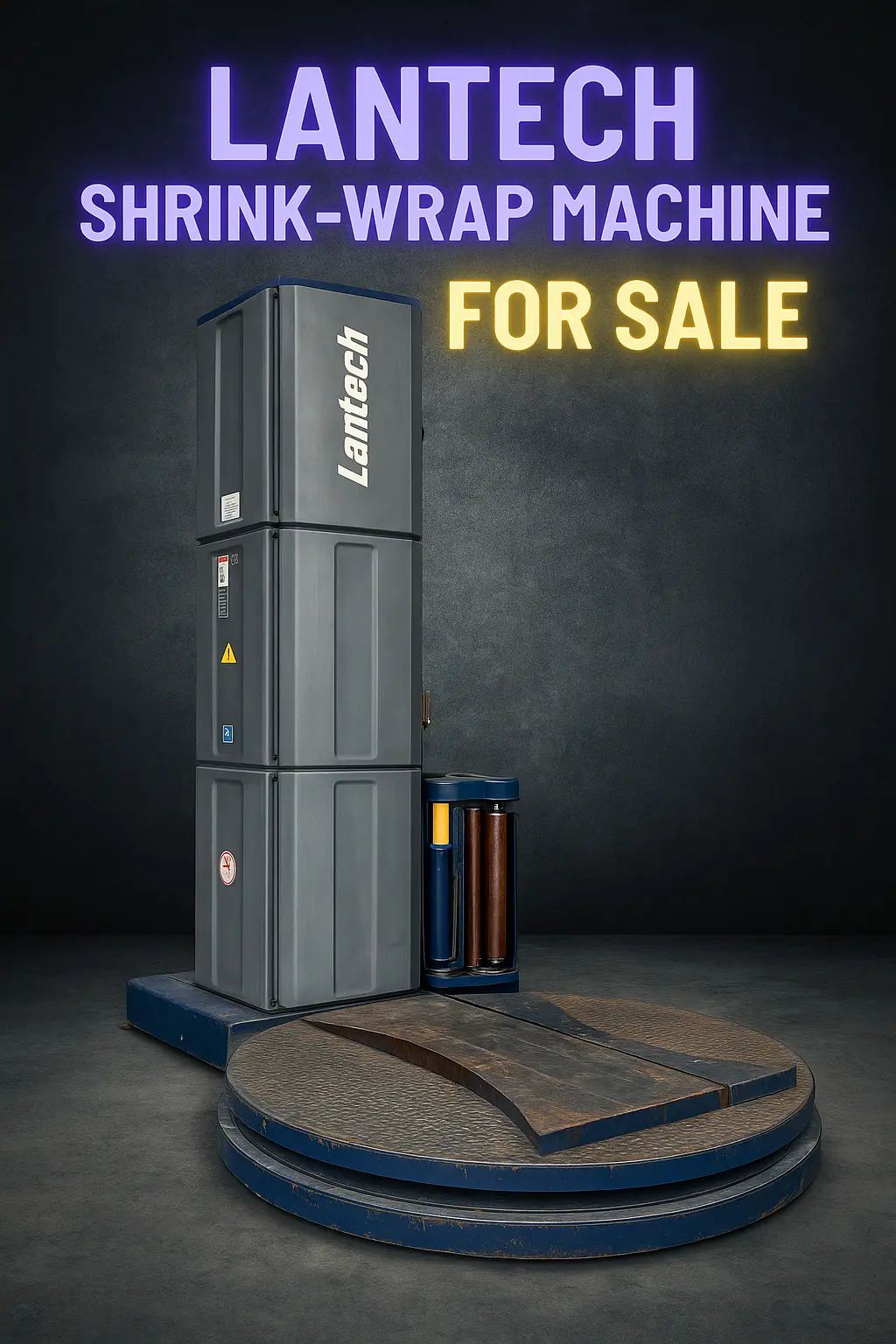

USED LANTECH Q3

• Equipment:
• Manufacturer: Lantech
• Model Family: Q-Series
• Model: Q-300 / Q3
• Type: Semi-Automatic Turntable Stretch Wrapper
• Condition: Used

• Performance:
• Production Speed: 25–35 Loads Per Hour
• Turntable Rotation Speed: 1–12 RPM (Variable Speed)
• Maximum Load Capacity: 4,000 lbs (1,814 kg)

• Dimensions:
• Turntable Diameter: 65 in.
• Standard Maximum Wrap Height: 80 in.
• Extended Maximum Wrap Height: 110 in.
• Recommended Load Diagonal: 72 in.
• Machine Footprint: 120 in. L × 68 in. W × 93 in. H

• Drive System:
• Turntable Drive Motor: 3/4 HP TEFC
• Carriage Lift Motor: 1/4 HP
• Film Delivery System: Power-Roller Pre-Stretch Carriage
• Film Stretch/Tension: Adjustable

• Electrical:
• Voltage: 115V AC
• Current: 20 Amps
• Phase: Single-Phase
• Frequency: 60 Hz

• Construction:
• Mast Design: Fully Enclosed
• Shipping Weight: 1,500 lbs

• Available Options:
• EZ Weigh™ Integrated Scale System
• 110 in. Extended Wrap Height Mast
• 72 in. or 96 in. Oversized Turntables
• 30 in. Film Delivery Carriage Upgrade
