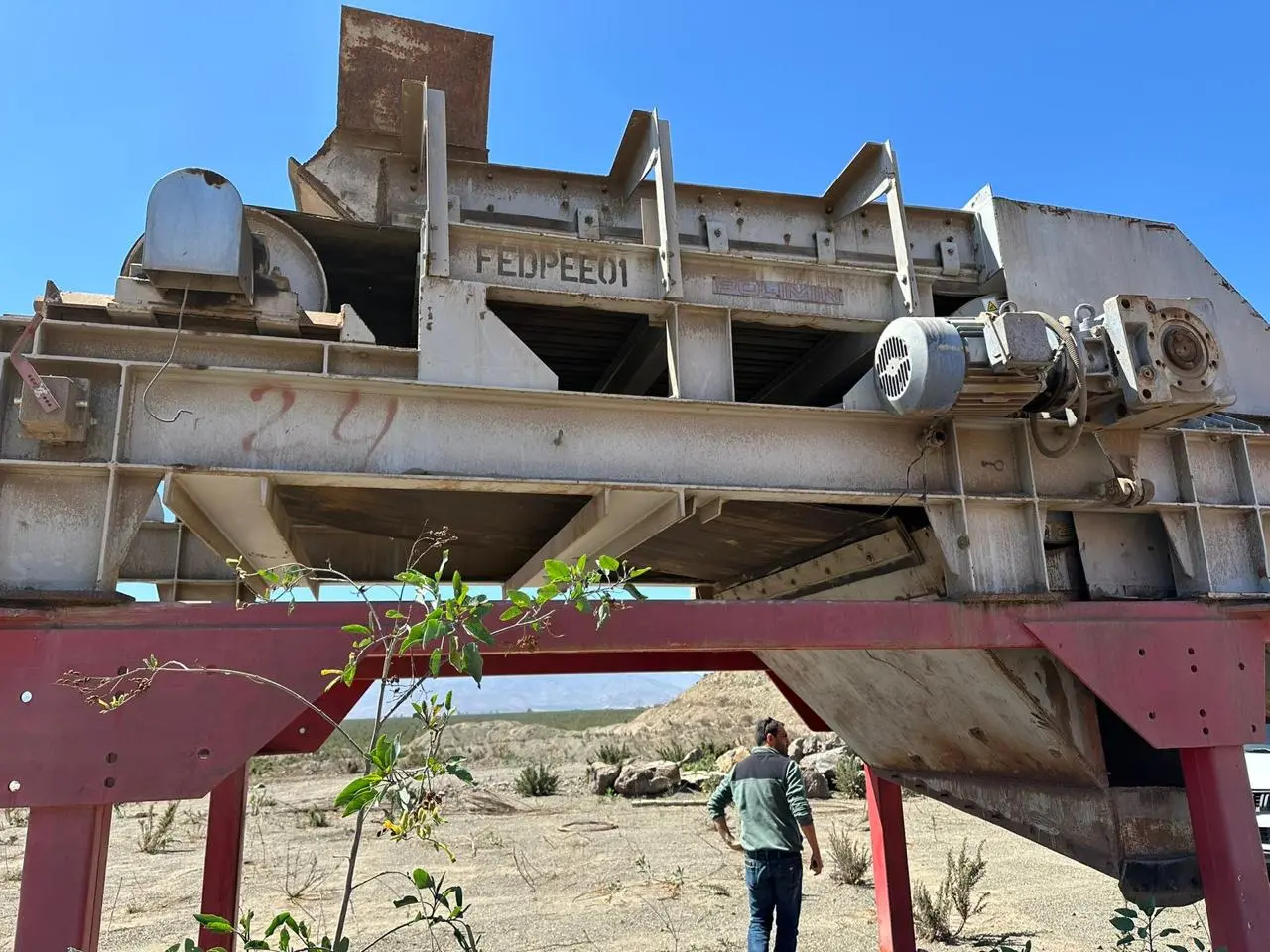

USED 2008 EREIZ 42-72 Electropulley

• Equipment:
• Manufacturer: Eriez Magnetics
• Model: 42-72
• Type: Electromagnetic Drum Separator
• Style Number: 200808772

• Capacity & Performance:
• Throughput Capacity: Approximately 500 Metric Tons per Hour
• Peak Volumetric Flow: Up to 25,600 ft³/hr (725 m³/hr)
• Magnetic Strength: Adjustable up to Approximately 5,000 Gauss
• Separation Type: Continuous Self-Cleaning Automatic Discharge

• Electrical Requirements:
• Input Voltage: 230 VDC
• Current Draw: 34.8 Amps
• Power Requirement: External DC Power Supply / Rectifier

• Dimensions:
• Drum Diameter: 42 in. (1,067 mm)
• Drum Width: 72 in. (1,829 mm)

• Construction:
• Drum Shell Material: Heavy-Duty Wear-Resistant Stainless Steel
• Optional Shell Material: Manganese Steel
• Drive System: Electric Motor with Gearbox & Chain Drive
• Frame: Heavy-Duty Structural Steel
• Bearings: Heavy-Duty Dust-Sealed Bearings

• Magnetic Assembly:
• Core Configuration: Stationary Shaft-Mounted Electromagnetic Coil
• Magnetic Arc Coverage: Approximately 120°–180°

• Typical Applications:
• Tramp Iron Removal
• Ferrous Metal Recovery
• Mining & Aggregate Processing
• Recycling Operations
• Magnetite Separation
