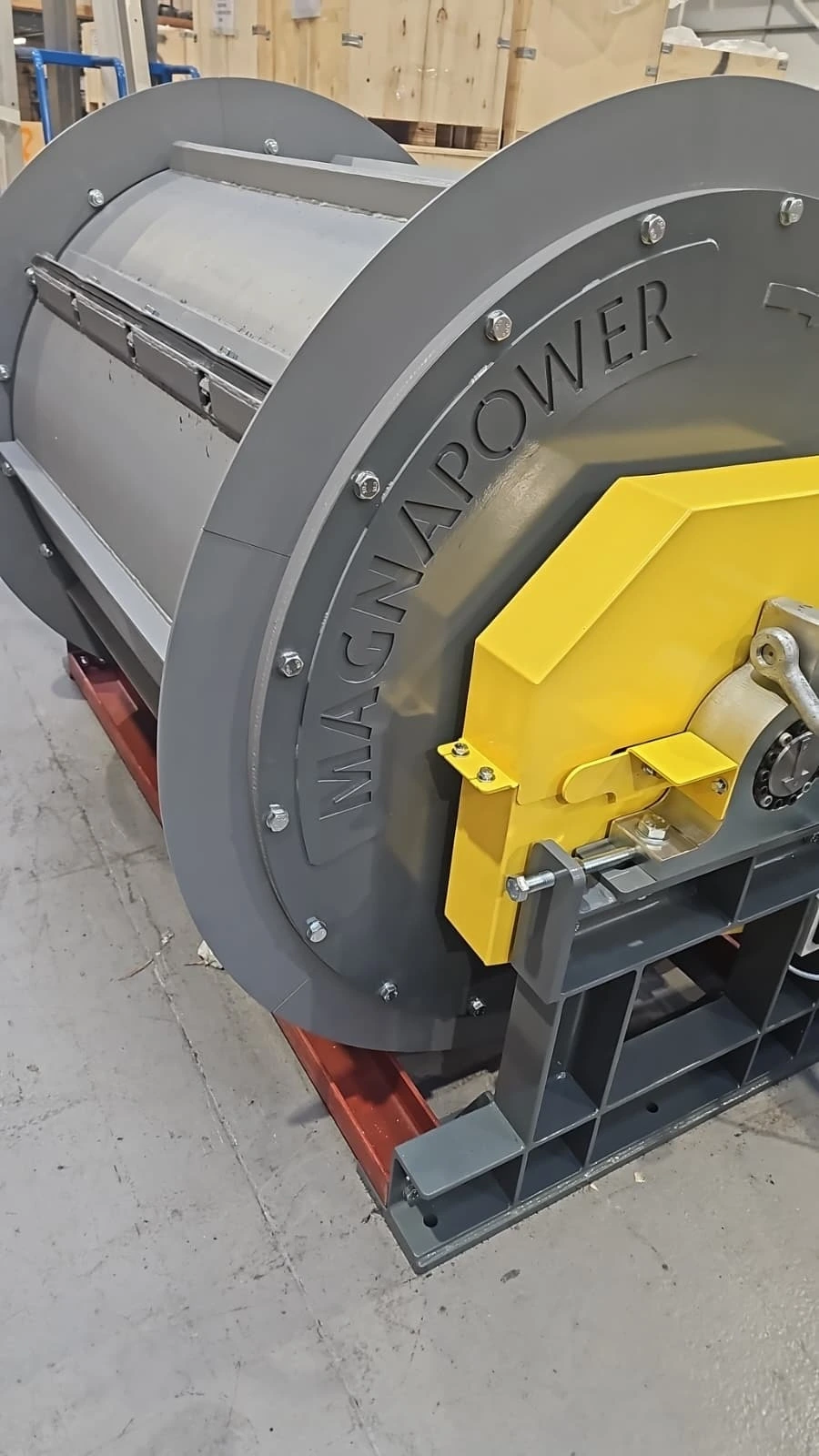

NEW MAGNAPOWER PFD 120-150

• Equipment:
• Manufacturer: Magnapower Equipment Ltd.
• Model: Powerfrag® PFD-120-150
• Type: Permanent Drum Magnet
• Condition: New

• Magnetic System:
• Drum Diameter: 48 in. (1,200 mm)
• Drum Face Width: 60 in. (1,500 mm)
• Magnet Type: Deep Field Ferrite Permanent Magnet
• Magnetic Field: Constant High-Intensity Permanent Field
• Pole Configuration: Alternating Pole Design
• Optional Pole Configuration: Axial Pole
• Power Requirement: No Electrical Power Required for Magnetic Field

• Separation Performance:
• Separation Type: Continuous Self-Cleaning Automatic Discharge
• Feed Configuration: Bottom Feed or Middle Feed
• Recommended Feed Width: 60 in. (1,500 mm)
• Gap Design: Deep-Field Configuration Allows Larger Operating Gaps

• Drive System:
• Drum Rotation: Electric Motor Driven
• Magnet System: Permanent Magnet (No Coil or Rectifier Required)

• Construction:
• Drum Shell: Heavy-Duty Non-Magnetic Stainless Steel
• Wear Cover: Manganese Steel Wear Wrapper with Cleats
• Bearings: Heavy-Duty Greaseable Pillow Block Bearings
• Shaft Assembly: Heavy-Duty Steel Shaft for High-Vibration Applications

• Typical Applications:
• Auto Shredder Residue (ASR)
• Ferrous Metal Recovery
• Scrap Metal Recycling
• Heavy Waste Processing
• Incinerator Bottom Ash
• Municipal Solid Waste (MSW)
