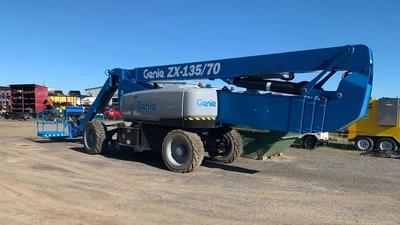

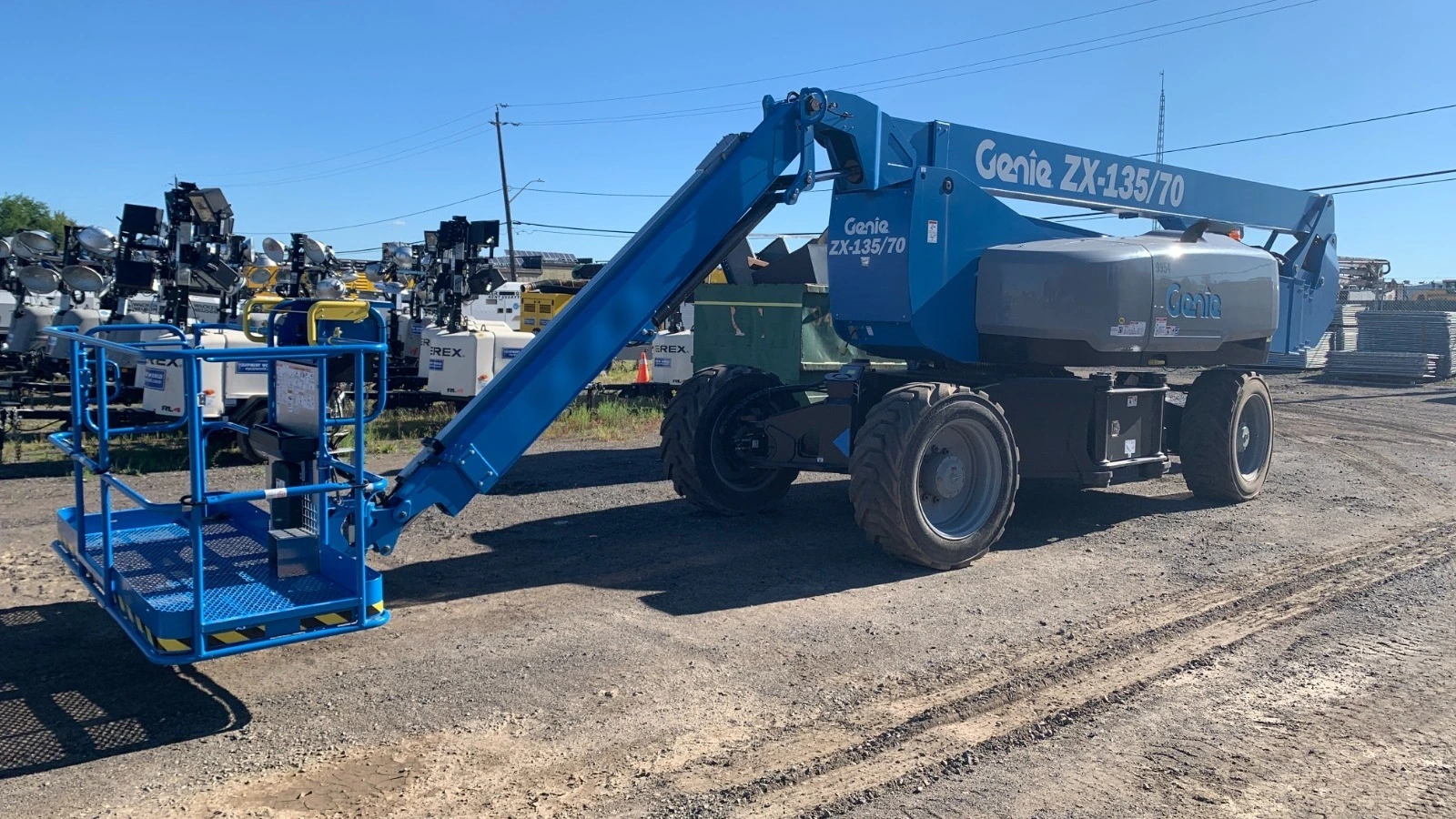

USED 2015 Genie ZX-135/70
Description
Genie ZX-135/70 Is An Articulating Boom Lift Designed For Maximum Reach And Versatility, Offering A Platform Height Of 135 Feet, A Working Height Of 141 Feet, And A Horizontal Reach Of 69 Feet 9 Inches. It Provides Up-And-Over Clearance Of 75 Feet 6 Inches, With A Maximum Below-Ground Reach Of 19 Feet 3 Inches. The Platform Supports A Capacity Of 600 Pounds And Rotates 160 Degrees, While The Jib Features 110 Degrees Of Vertical Motion And The Turntable Delivers Continuous 360-Degree Rotation.
The Machine Measures Approximately 42 Feet 5 Inches In Length, 8 Feet 2 Inches Wide (12 Feet 11 Inches With Axles Extended), And 10 Feet 1 Inch High When Stowed, With A Ground Clearance Of 1 Foot 3 Inches. It Has A Wheelbase Of 13 Feet 6 Inches And A Total Weight Of Around 46,000 Pounds.
Powered By A 74-Horsepower Deutz TD2011 Turbo Diesel Engine, The ZX-135/70 Features A Fuel Capacity Of 40 Gallons And A Hydraulic Oil Capacity Of 65 Gallons. Travel Speed Is Approximately 3 Miles Per Hour When Stowed And 0.68 Miles Per Hour When Elevated, With A Gradeability Of 45 Percent. Standard Features Include Four-Wheel Drive, Foam-Filled Tires, Proportional Drive And Lift Controls, And A 12-Volt DC Auxiliary Power System For Smooth, Reliable Operation Across Demanding Work Environments.
Specifications
| Weight | 0.0 | 0.0 |
|---|
Status: Available
Hours: 5102
Weight: 0.0
Rental Rate: $5000
Rate Schedule: DAY: $700
Rate Schedule: WEEK: $1444
Rate Schedule: 3 MOS: $15000
Rate Schedule: 6 MOS: $30000
