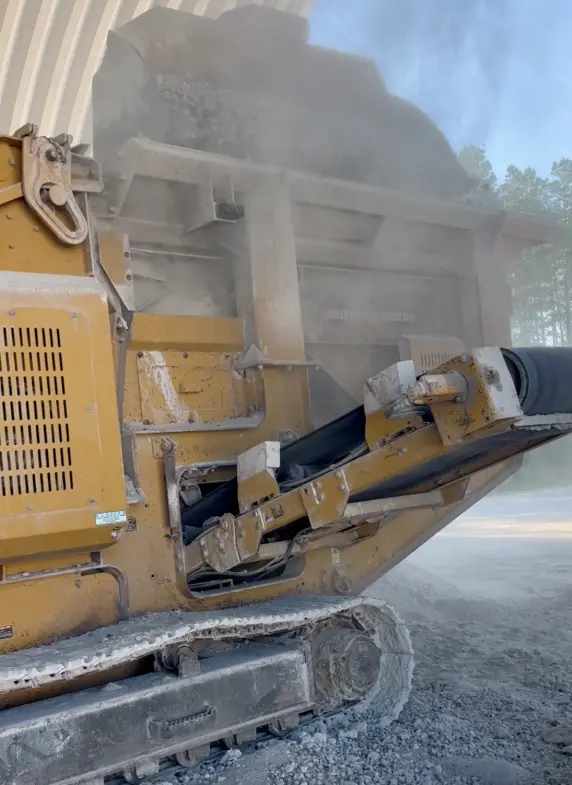

USED SCREEN MACHINE INDUSTRIES 4043T

- Manufacturer: Screen Machine Industries
- Model: 4043T
- Type: Track-Mounted Mobile Horizontal Shaft Impact (HSI) Crusher
- Applications: Concrete Recycling, Asphalt Recycling, Quarry Rock
- Frame Construction: USA-Made Grade 80 Steel Unibody Frame

- Crusher Rotor: 40" Diameter x 43" Wide (1,016 x 1,092 mm)
- Feed Opening: 43" W x 28" H
- Rotor Design: 4-Bar Configuration
- Blow Bars: Reversible Low-Chrome Ceramic (High-Chrome Optional)
- Rotor Speed: 600 - 700 RPM (Variable)
- Aprons: Dual Adjustable Curtain Design
- Crusher Relief: Remote Hydraulic Lid Raise System

- Engine Option 1: CAT C9.3B Tier 4 Final Diesel
- Engine Power: 376 HP (280 kW)
- Engine Option 2: CAT C9 ACERT Tier 3 Diesel
- Engine Power: 300 HP (224 kW)
- Drive Coupling: Transfluid Fluid Coupling
- Fuel Tank Capacity: 175 Gallons
- Hydraulic Tank Capacity: 150 Gallons

- Feeder Type: Vibratory Grizzly Feeder (VGF)
- Feeder Dimensions: 40" W x 13' L
- Hopper Opening: 14' Long
- Hopper Construction: 1/2" Grade 80 Steel w/ AR400 Replaceable Liners
- Grizzly Openings: 1.5"
- Feeder Speed: 600 - 850 RPM (Variable)
- Fines Removal: Mechanical Grizzly / Crusher Bypass

- Main Discharge Conveyor: 42" Wide
- Main Belt Rating: 440 PIW
- Main Discharge Height: 10'9" - 11'4"
- Fines Conveyor Width: 24"
- Fines Belt Rating: 220 PIW
- Fines Discharge Height: 7'
- Crossbelt Magnet: Adjustable Permanent Magnet

- Undercarriage: Heavy-Duty Track System
- Track Pads: 20"
- Travel Controls: Wireless Remote

- Overall Length: 47'7"
- Overall Width: 9'10"
- Overall Height: 11'6" - 11'10"
- Operating Weight: 75,000 - 79,500 lbs

- Controls: Digital Touchscreen Control Panel
- Remote Control: Wireless
- Safety Features: Multiple Emergency Stops, Non-Slip Platforms, Service Catwalks & Maintenance Ladders
