Blade / Shear (jaw) length: 16 inches (≈ 400 mm)
Motor: 15 hp (≈ 11 kW), 1,730 rpm
Electrical (standard): 230/460 VAC, 60 Hz. (Other voltages available)
Cutting Speed: 15–50 cycles (strokes) per minute, with infinitely variable stroke adjustment.
Bar / Rebar Cutting Capacity (for mild steel 60 or 65 kg/mm²):
#3 (≈ 10 mm): up to 32 bars simultaneously
#4 (≈ 12 mm): up to 25 bars
#5 (≈ 16 mm): up to 16 bars
#6 (≈ 20 mm): up to 10 bars
#7 (≈ 22 mm): up to 6 bars
#8 (≈ 25 mm): up to 5 bars
#9 (≈ 28 mm): up to 4 bars
#10 (≈ 32 mm): up to 3 bars
#11 (≈ 40 mm): up to 2 bars
#14 (≈ 45 mm): up to 1 bar
Weight: ~ 3,500 lbs (≈ 1,590 kg)
Overall Dimensions: Height: 67 in; Length: 56 in; Width: 54 in (≈ 1.7 m × 1.4 m × 1.37 m)

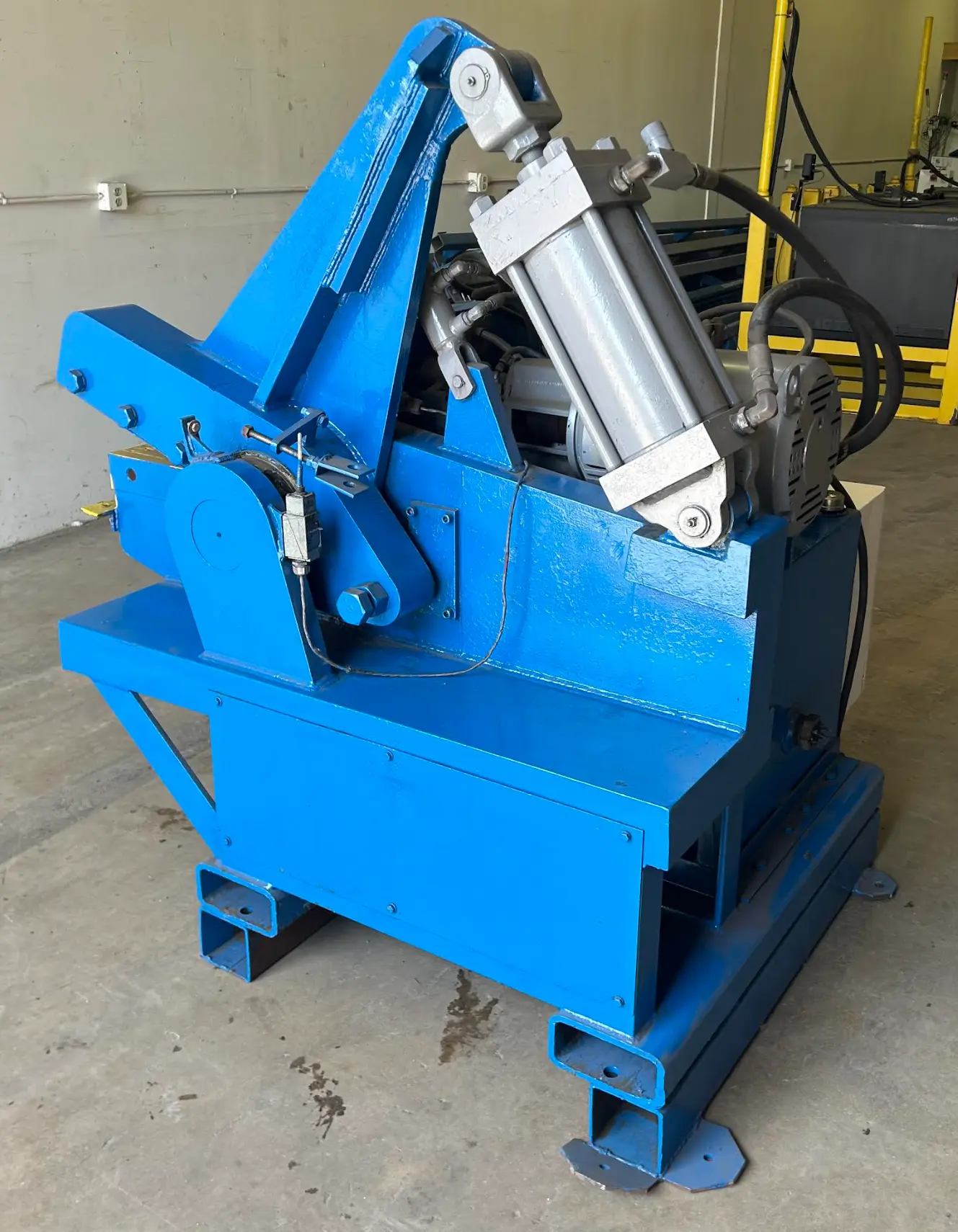

Shear features/design: Constructed with welded steel plate, bronze bearing bushings, ground surfaces for durability.
Hold-Down Clamp: Powered hydraulic hold-down to clamp bars during cutting (for safety and no need for operator to hold bars).
Stroke Control: Adjustable shear stroke; shear will return and stop automatically at end of cycle or preadjusted opening.
Mobility / Use: Designed to operate indoors or outdoors; does not require special foundation or external air compressor.
Cutting Direction: Available in either left- or right-hand cutting configuration.
