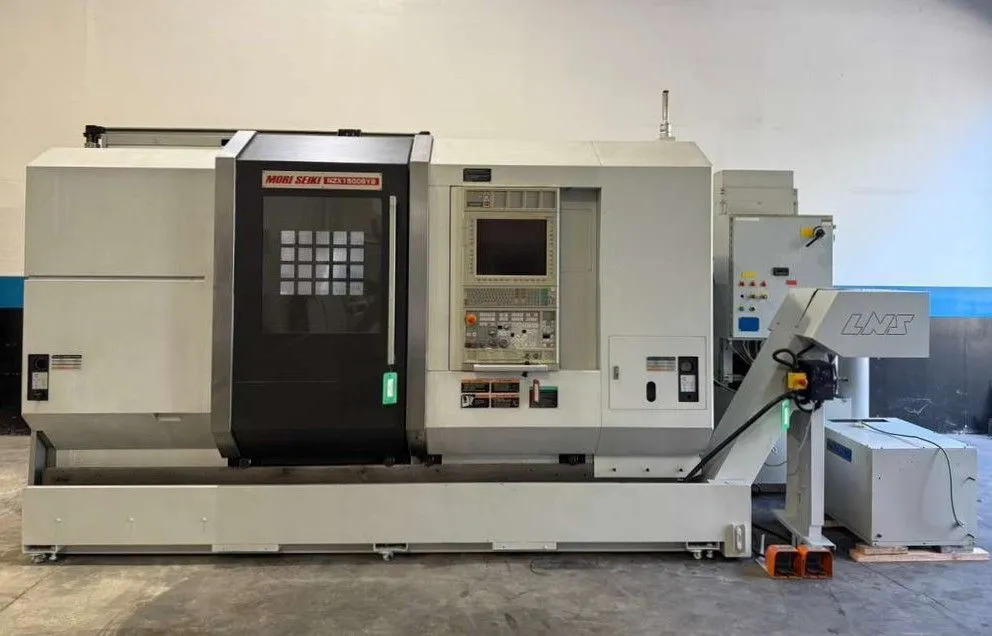

USED 2012 DMG MORI SEIKI NZX 1500/1800SY2
Overview
Description
DMG Mori NZX 1500/800SY2 CNC lathe, 2012. Features twin spindles, twin turrets, Y axis, and Fanuc 31i-A control. Max RPM: 6000, 30 hp power. Equipped with live tool turrets, coolant system, and chip/mist blasters. Ideal for precision machining needs.
Specifications
| Swing | 31.5" | 800.1 mm |
|---|---|---|
| Max. Turning Length | 31.5" | 800.1 mm |
| Max. Turning Diameter | 11.8" | 299.72 mm |
| X-Axis | 8.3" | 210.82 mm |
| Y-Axis | +2.6″ / -1.8″ | +2.6″ / -1.8″ |
| Z-Axis | 31.9" | 810.26 mm |
| B-Axis | 35.4" | 35.4" |
| C-Axis | 360° | 360° |
| Rapid Traverse X-Axis | 1181 ipm | |
| Rapid Traverse Y-Axis | 787 ipm | |
| Rapid Traverse Z-Axis | 1968 ipm | |
| Bar Capacity | 2" | 50.8 mm |
| Spindle Bore | 2.4 in | |
| Spindle Nose | A2-5 | A2-5 |
| Power | 30 hp | 22.4 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Sub Spindle Power | 30 hp | |
| Sub Spindle Max RPM | 6000 rpm | 6,000 RPM |
| Sub Spindle Bore | 2.4 in | |
| Sub Spindle Nose | A2-5 | A2-5 |
| Dimensions | 173″ x 111″ x 91″ High | 173″ x 111″ x 91″ High |
| Weight | 18,300 Lbs | 18,300 Lbs |
Equipped With
Fanuc 31i-A Series CNC Control
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
PCMCIA Card Slot & USB Port
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System
Chip Conveyor
Foot Switches
