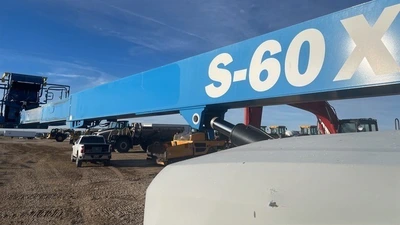

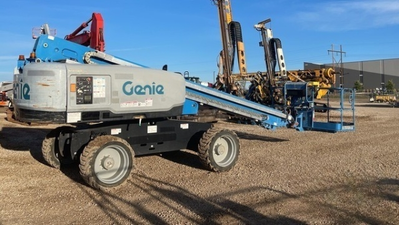

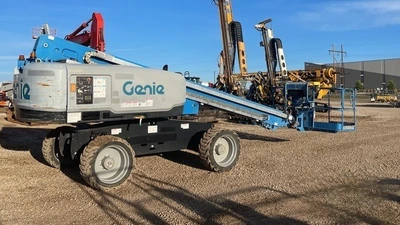

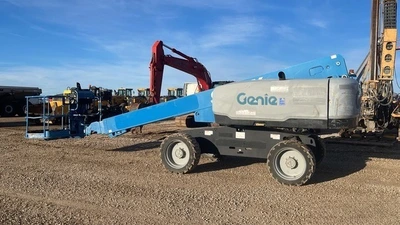

USED 2017 Genie S60-X

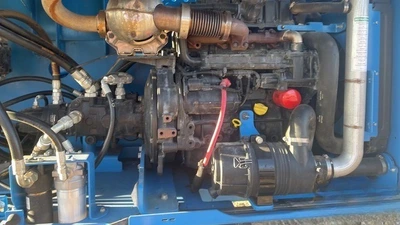

Maximum Working Height: 66 ft (20.30 m) Maximum Platform Height: 60 ft (18.30 m) Maximum Horizontal Reach: 50 ft 10 in (15.48 m) Below Ground Reach: 5 ft 7 in (1.70 m) Platform Capacity: Unrestricted: 500 lbs (227 kg) Restricted: 1,000 lbs (454 kg) Platform Dimensions: 8 ft x 3 ft (2.44 m x 0.91 m) Platform Rotation: 160° Turntable Rotation: 360° continuous Stowed Dimensions: Length: 27 ft 9 in (8.46 m) Width: 8 ft 2 in (2.49 m) Height: 8 ft 11 in (2.72 m) Wheelbase: 8 ft 3 in (2.51 m) Ground Clearance: 1 ft 2.5 in (0.37 m) Drive Speed: Stowed: 3.0 mph (4.8 km/h) Raised: 0.68 mph (1.1 km/h) Gradeability: 45% (4WD) Turning Radius: Inside: 7 ft 9 in (2.36 m) Outside: 18 ft 2 in (5.54 m) Powertrain & Capacities Engine: 49 hp (36.5 kW) Deutz diesel T4f D2.9L4 Fuel Tank Capacity: 35 gal (132.5 L) Hydraulic Tank Capacity: 45 gal (170.3 L) Operating Weight: 2WD: 20,571 lbs (9,333 kg) 4WD: 20,741 lbs (9,409 kg) Notable Features Dual lift capacity with automatic envelope control Virtual pivot primary boom for efficient weight distribution Positive traction drive for equal power to all drive wheels Active oscillating axle option for enhanced traction on rough terrain 360° continuous rotation turntable for quick positioning
