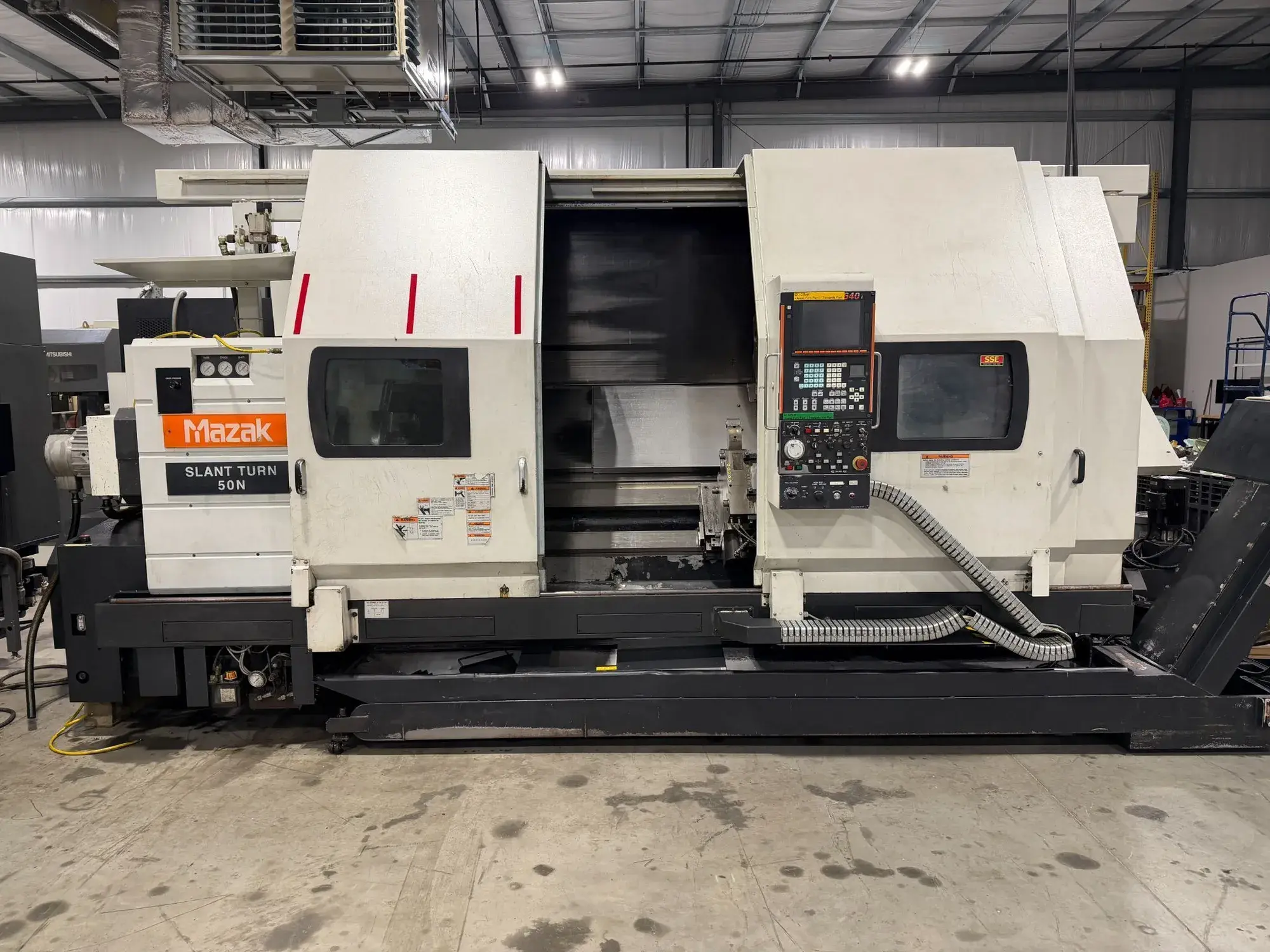

MAZAK SLANT TURN 50N-2000, used multi-axis CNC lathe from 2006. Features 22.6" X-Travel, 80" Z-Travel, 3.5" bar capacity, and 21" manual chuck. Powered by a 50 HP spindle motor with Mazatrol 640T CNC control and hydraulic steadyrest. Includes chip conveyor.
| Swing | 31.69" | 804.93 mm |
| Machining Length | 89.25" | 2,266.9 mm |
| # Axis | 2 | 2 |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 22.05" | 560.07 mm |
| Tailstock | 'Yes' | 'Yes' |
| Control | CNC (Mazatrol Fusion) | CNC (Mazatrol Fusion) |
X-Travel: 22.60"
Z-Travel: 80.00"
Distance Between Centers: 80"
Max Swing Over Bed: 31.70"
Max Cutting / Turning Diameter: 28.00"
Rapid Traverse: 473/552 IPM
Spindle
Bar Capacity: 3.50"
Chuck Size: 21.0"
Chuck Type: Manual
Spindle Bore: 4.00"
Spindle Speed: 750 RPM
Spindle Motor: 50 HP
Control
Control Make/Model: Mazatrol 640T CNC Control
Control Options: Coordinate Rotation and Scaling;Helical Interpolation;Macros;EIA/ISO Code Input Function
Additional Control Options: Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Tailstock / Steadyrest
Tailstock: Equipped With
Steadyrest Type: Hydraulic
Steadyrest Capacity: 10"
Chip Conveyor
