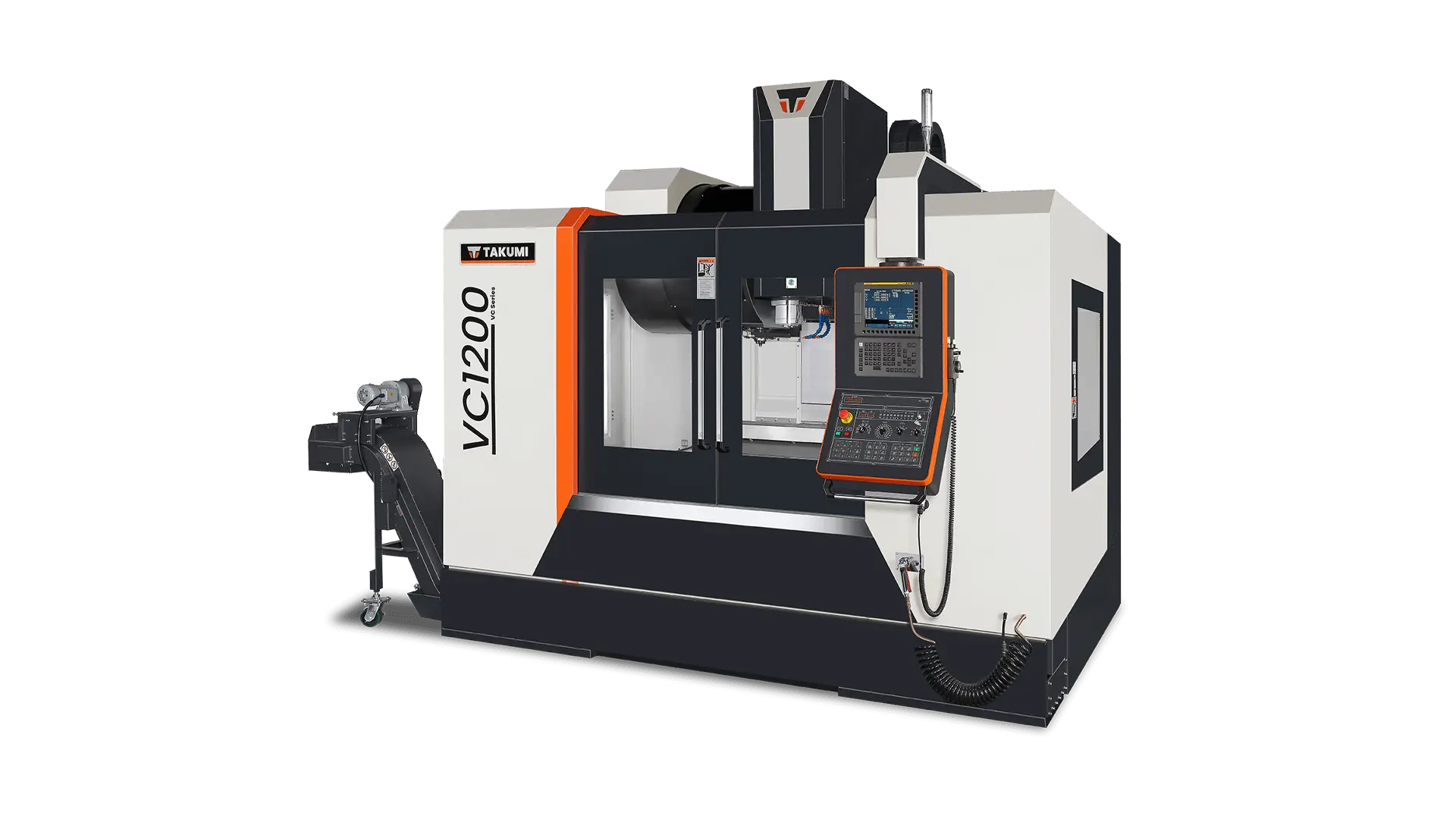

Linear-Guide Mills for Batch or Production Work
Fast Rapids + High Precision
• Rapids of 1417 inches per minute.
• Perfect combination of fast cutting and high stability.
• Pre-tensioned ballscrews minimize thermal growth and improve accuracy.
• Direct-coupled ballscrews increase accuracy.
• Ergonomic table simplifies setup.
• Swiveling control panel optimizes floor space utilization.
• Robust, precision-machined castings.
• Hand-scraped contact areas.
• 30-tool, CAT 40, swing-arm ATC standard.
• Integrated washdown and chip management system.
• Spindle chiller maximizes heat dissipation.
• Absolute encoders ensure fast startup.
• Fanuc© 0i-MF Plus Control.
| X | 50" | 1,270 mm |
| Y | 25.98" | 659.89 mm |
| Z | 24" | 609.6 mm |
| # Axis | 3 | 3 |
| Power | 20.1 hp | 15 kW |
| RPM | 15,000 RPM | 15,000 RPM |
Configuration: 3-Axis Linear-Guide
Travels: 50 x 25.98 x 24 in
Spindle Speed & Torque: 15000 rpm | 87.8 ft-lbs
Spindle Power: 20.1 hp
