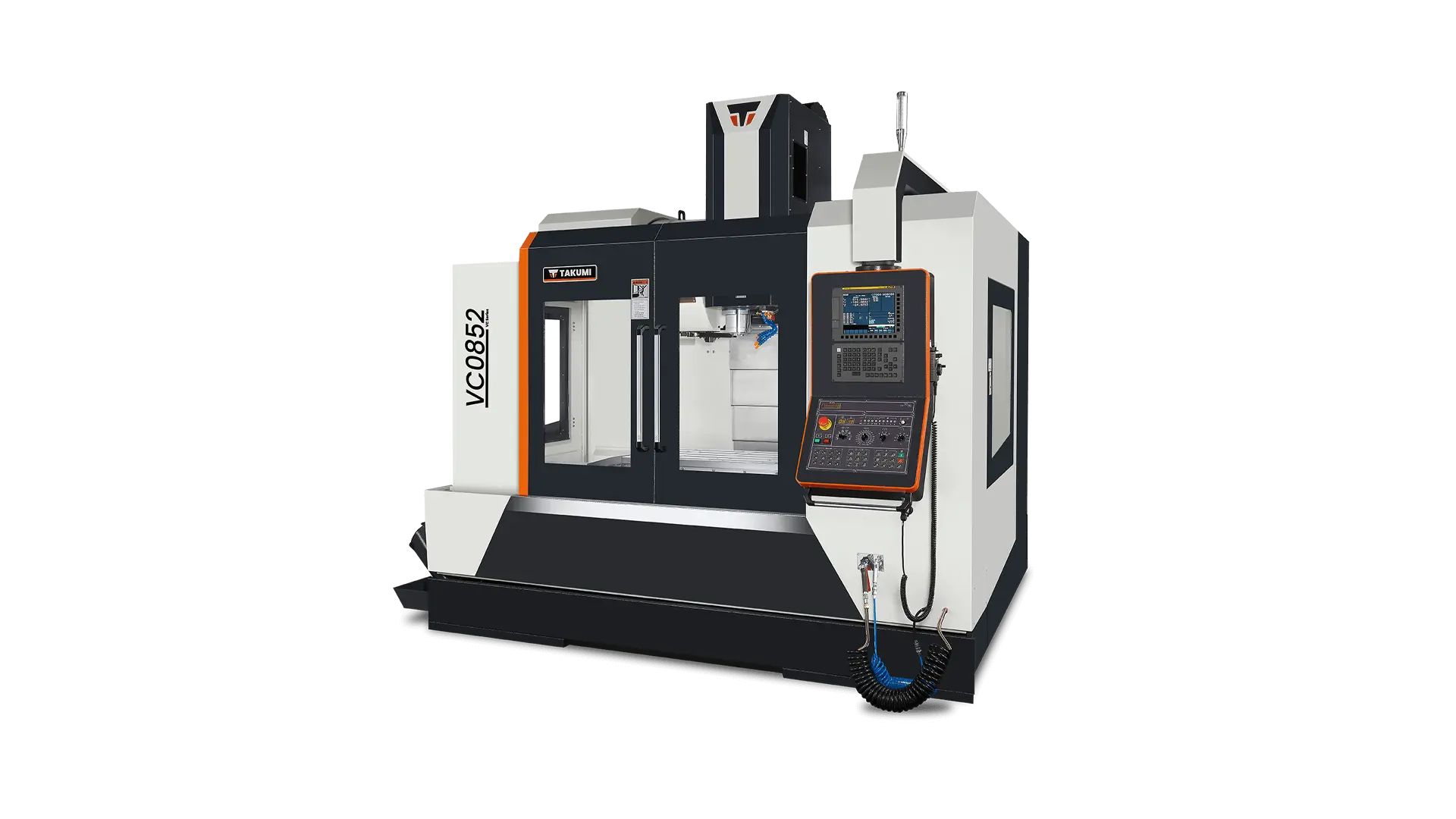

Linear-Guide Mills for Batch or Production Work
Fast Rapids + High Precision
• Rapids of 1417 inches per minute.
• Perfect combination of fast cutting and high stability.
• Pre-tensioned ballscrews minimize thermal growth and improve accuracy.
• Direct-coupled ballscrews increase accuracy.
• Ergonomic table simplifies setup.
• Swiveling control panel optimizes floor space utilization.
• Robust, precision-machined castings.
• Hand-scraped contact areas.
• 24-tool, CAT 40, swing-arm ATC standard; VC1200 is 30-tool.
• Integrated washdown and chip management system.
• Spindle chiller maximizes heat dissipation.
• Absolute encoders ensure fast startup.
• Fanuc© 0i-MF Plus Control.
| X | 33.9" | 861.06 mm |
| Y | 20.5" | 520.7 mm |
| Z | 24" | 609.6 mm |
| # Axis | 3 | 3 |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| Control | CNC (Fanuc 0i-MF) | CNC (Fanuc 0i-MF) |
Configuration: 3-Axis Linear-Guide
Travels: 33.9 x 20.5 x 24
Spindle Speed & Torque: 15000 rpm | 87.8 ft-lbs
Spindle Power: 20 hp
