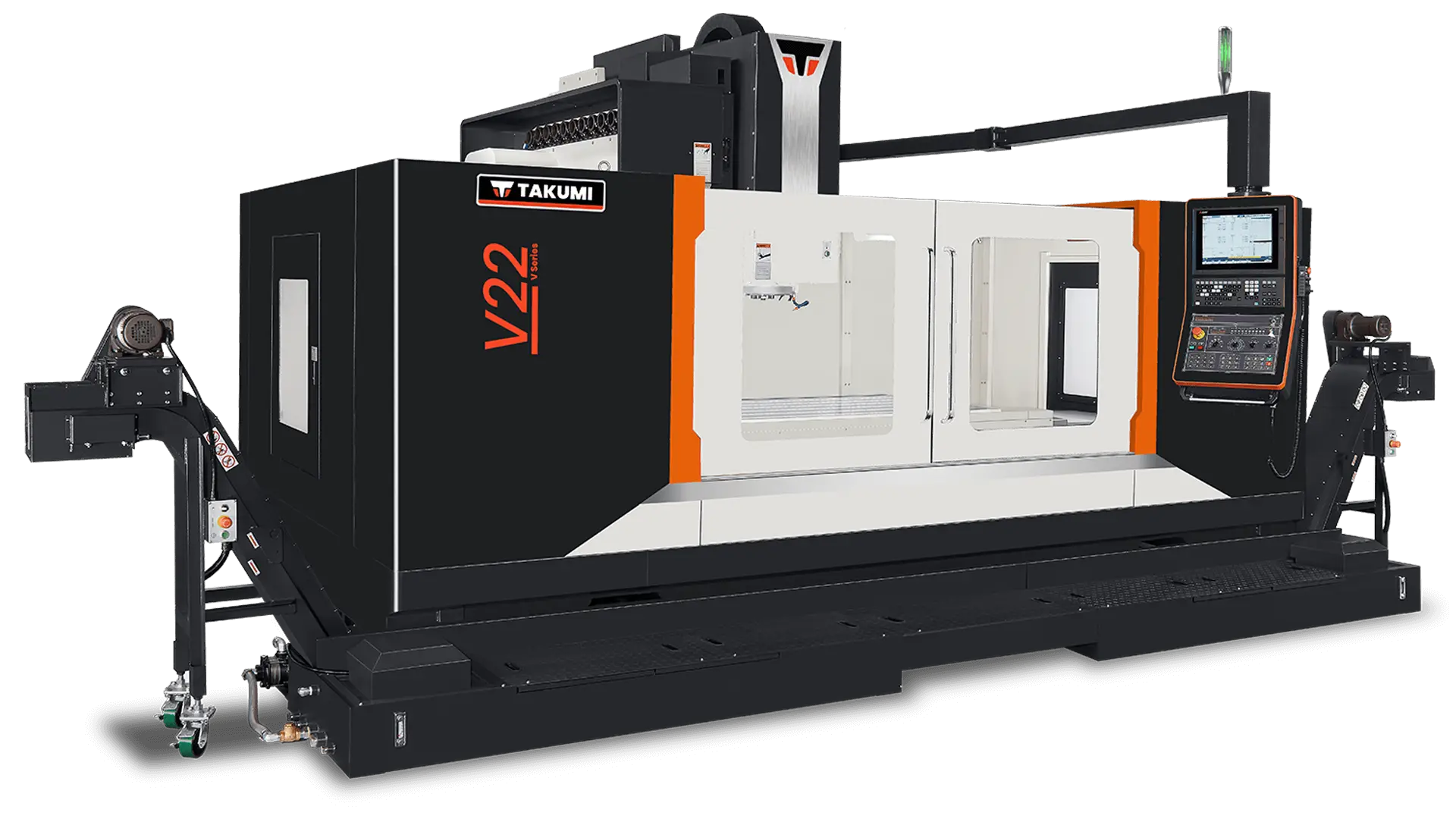

NEW TAKUMI V22

Built for heavy material removal, production, and excellent surface finish.

• Belt or geared spindles to provide maximum torque.
• Large box ways for rigid and heavy cutting.
• Pre-tensioned ballscrews minimize thermal growth and improve accuracy.
• Direct-coupled motors increase accuracy and speed.
• Spindle chiller maximizes heat dissipation.
• Extra-wide door openings facilitate easy loading and unloading.
• Hand-scraped contact areas.
• Robust, precision-machined castings.
• Box-shape bed made of one-piece casting.
• Integrated washdown and chip management system.
• Absolute encoders ensure fast start-up.
• Fanuc© 0i-MF Plus Control.

Configuration: 3-Axis Box-Ways
Travels: 86.6 x 41.9 x 29.5
Spindle Speed & Torque: 6000 | 488 ft-lbs
Spindle Power: 35 hp
