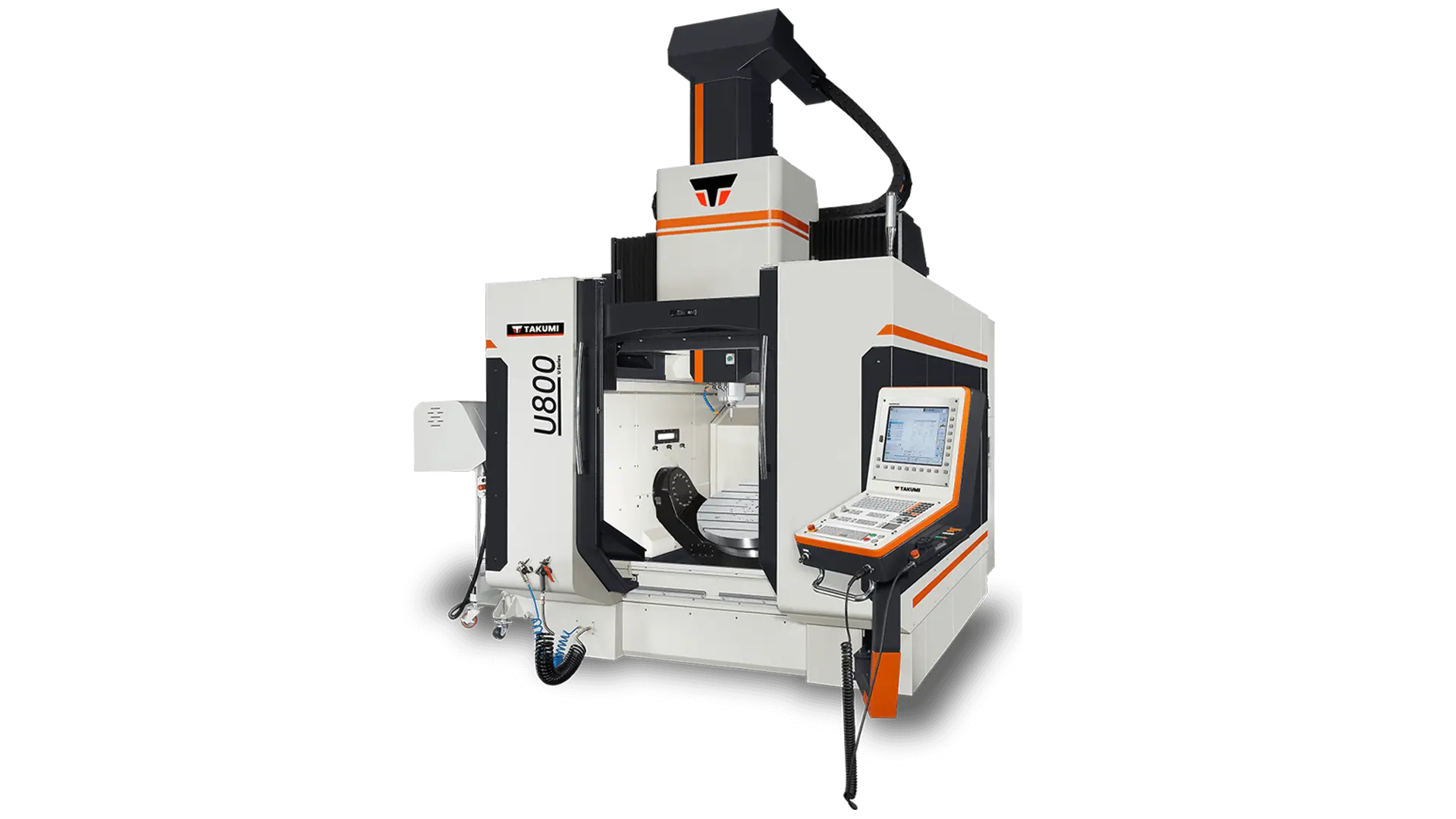

The Takumi U Series 5-axis, double-column machining centers are designed for high-precision finishing of parts of all sizes, especially for die/mold, aerospace, and medical applications. The U Series has an extremely robust structure that ensures enough rigidity to perform roughing and has the speed and acceleration for finishing.
High Speed and Outstanding Surface Finish
• One-piece casting absorbs the thrust forces of high rapids and fast cutting feeds.
• One-piece, double-column design increases rigidity, enabling higher cutting feeds while maintaining superior part finish.
• Ladder design of cross rails increases rigidity and eliminates head deflection.
• Over 35 components are hand scraped for fit.
• Roller-type linear ways support faster feedrates, higher rigidity, and smoother linear motion due to larger contact area compared to ball-type linear rails.
• Large-diameter, pre-loaded and pre-tensioned ballscrews with fine pitch for accurate motion control.
• U600 has 15000-rpm, Big Plus®, CAT 40, motorized, inline spindle; U800 has built-in spindle.
• Equipped with the latest Heidenhein TNC 640 control.
| X | 31.49" | 799.85 mm |
| Y | 45.27" | 1,149.9 mm |
| Z | 29.52" | 749.81 mm |
| # Axis | 5 | 5 |
| Power | 33.5 hp | 25 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 32 | 32 |
| Control | CNC (Heidenhein TNC 640) | CNC (Heidenhein TNC 640) |
Configuration: 5-Axis Trunnion
Travels: 31.49 x 45.27 x 29.52 in
Spindle Speed & Torque: 20000 rpm | 99 ft-lbs @ 2800 rpm
Spindle Power: 33.5 hp
