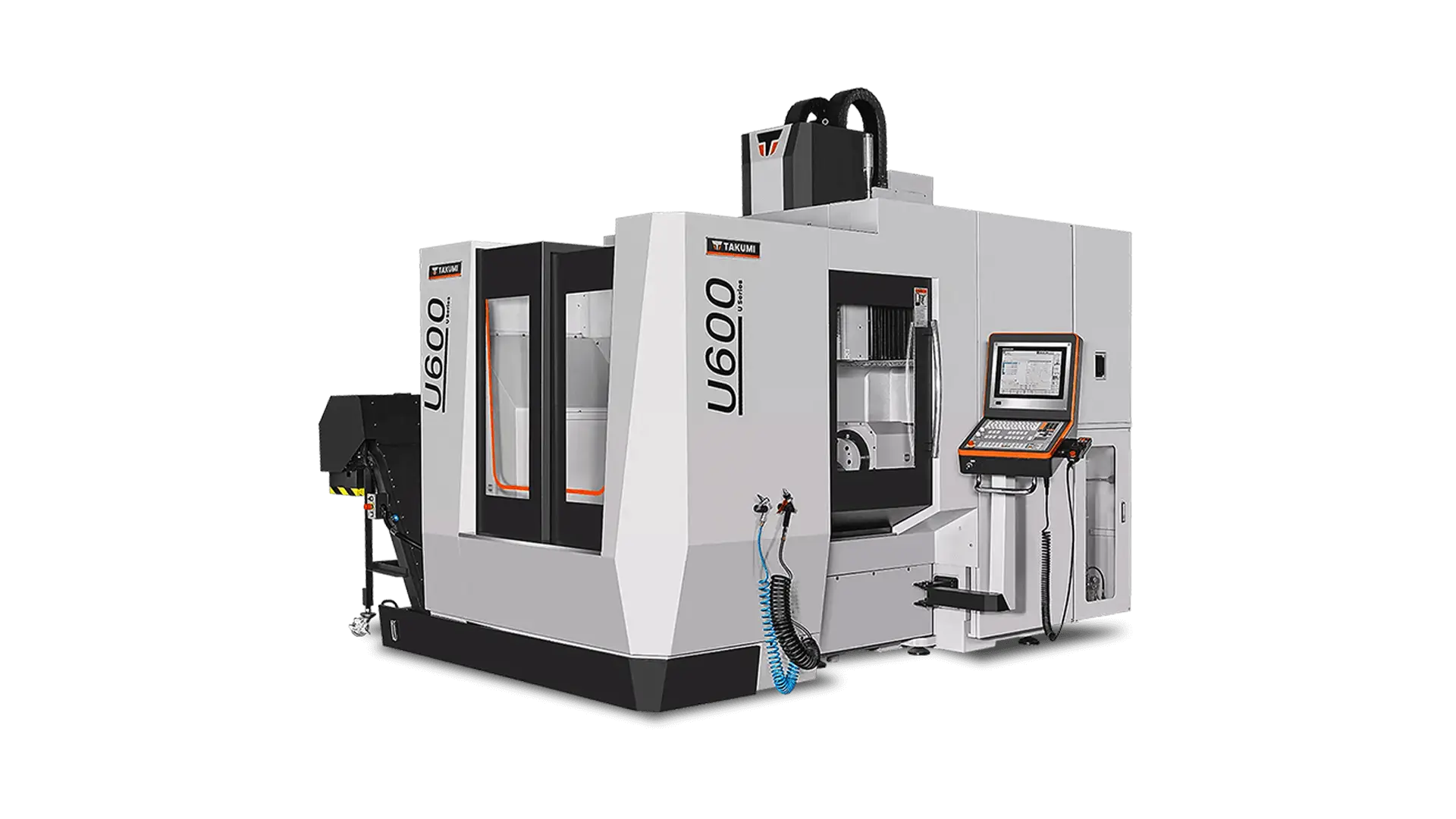

The Takumi U Series 5-axis, double-column machining centers are designed for high-precision finishing of parts of all sizes, especially for die/mold, aerospace, and medical applications. The U Series has an extremely robust structure that ensures enough rigidity to perform roughing and has the speed and acceleration for finishing.
High Speed and Outstanding Surface Finish
• One-piece casting absorbs the thrust forces of high rapids and fast cutting feeds.
• One-piece, double-column design increases rigidity, enabling higher cutting feeds while maintaining superior part finish.
• Ladder design of cross rails increases rigidity and eliminates head deflection.
• Over 35 components are hand scraped for fit.
• Roller-type linear ways support faster feedrates, higher rigidity, and smoother linear motion due to larger contact area compared to ball-type linear rails.
• Large-diameter, pre-loaded and pre-tensioned ballscrews with fine pitch for accurate motion control.
• U600 has 15000-rpm, Big Plus®, CAT 40, motorized, inline spindle; U800 has built-in spindle.
• Equipped with the latest Heidenhein TNC 640 control.
| X | 25.98" | 659.89 mm |
| Y | 40.15" | 1,019.8 mm |
| Z | 19.68" | 499.87 mm |
| # Axis | 5 | 5 |
| Power | 18.8 hp | 14 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| Control | CNC (Heidenhain TNC 640) | CNC (Heidenhain TNC 640) |
Configuration: 5-Axis Trunnion
Travels: 25.98 x 40.15 x 19.68 in
Spindle Speed & Torque: 15000 rpm | 65.9 ft-lbs @1500 rpm
Spindle Power: 18.8 hp
