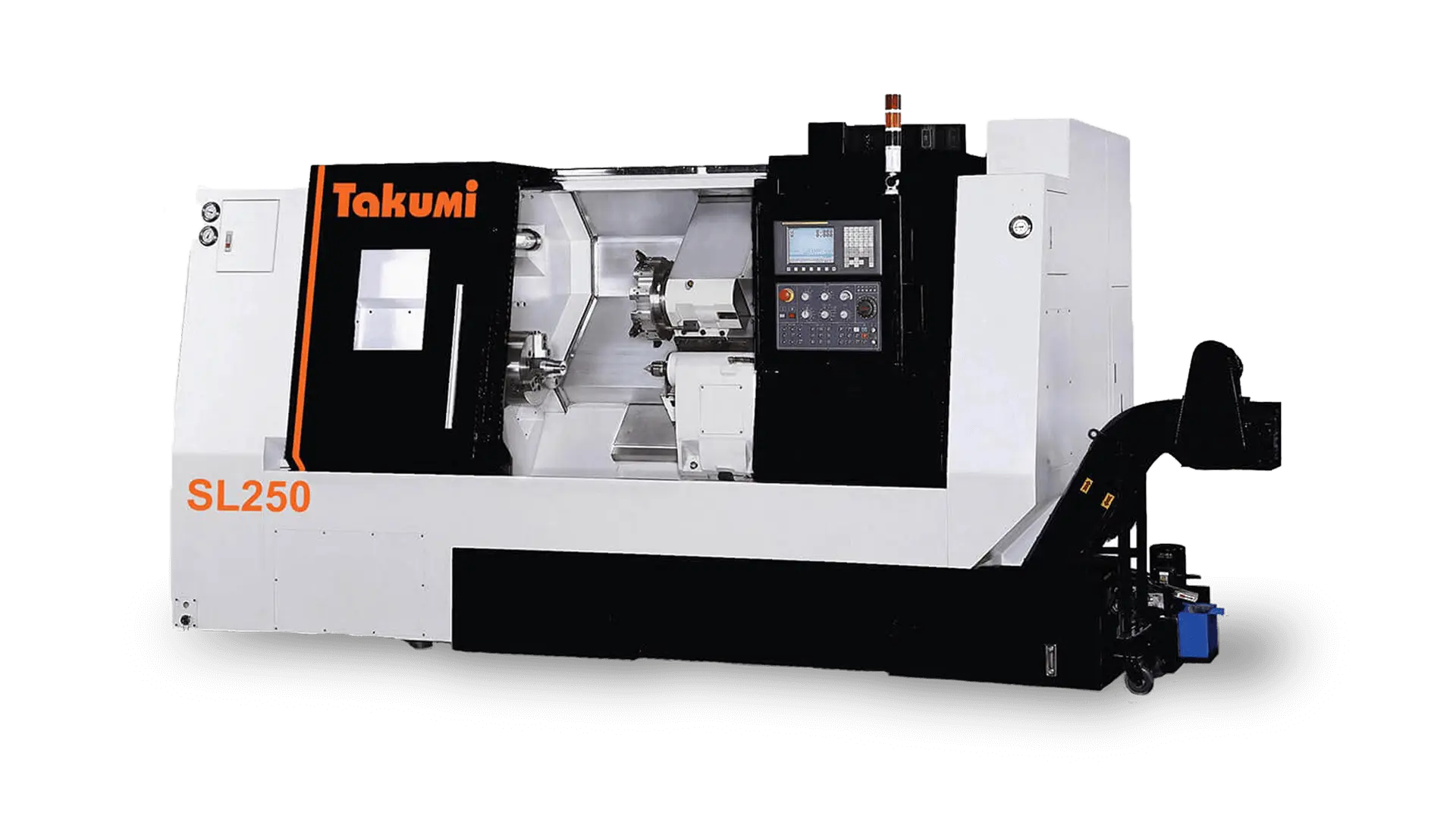

NEW TAKUMI SL250

Designed for heavy and interrupted cutting with superior part finishes.

• True 45-degree slant bed allows for easy loading, changing, and inspection of tools.
• Hardened and ground box ways on all axes.
• Doublenut pre-loaded pretensioned X/Z axis ballscrews are 1.57” (40 mm) with 10 mm pitch.
• High metal removal rates are achieved with classic design and manufacturing methods.
• The heavily ribbed casting design prevents twisting and deformation.
• Guideways are wide, rectangular box design for long-term rigidity and accuracy.
• The ways are induction hardened, precision ground and widely spaced to ensure stability. The Turcite B mating surfaces are hand scraped for perfect fit and smooth motion.

Configuration: Box-Way Lathe with 10" Chuck
Travels: 10x, 27.55z in
Spindle Speed & Torque: 3000 rpm | 212 ft-lbs
Spindle Power: 25 hp
