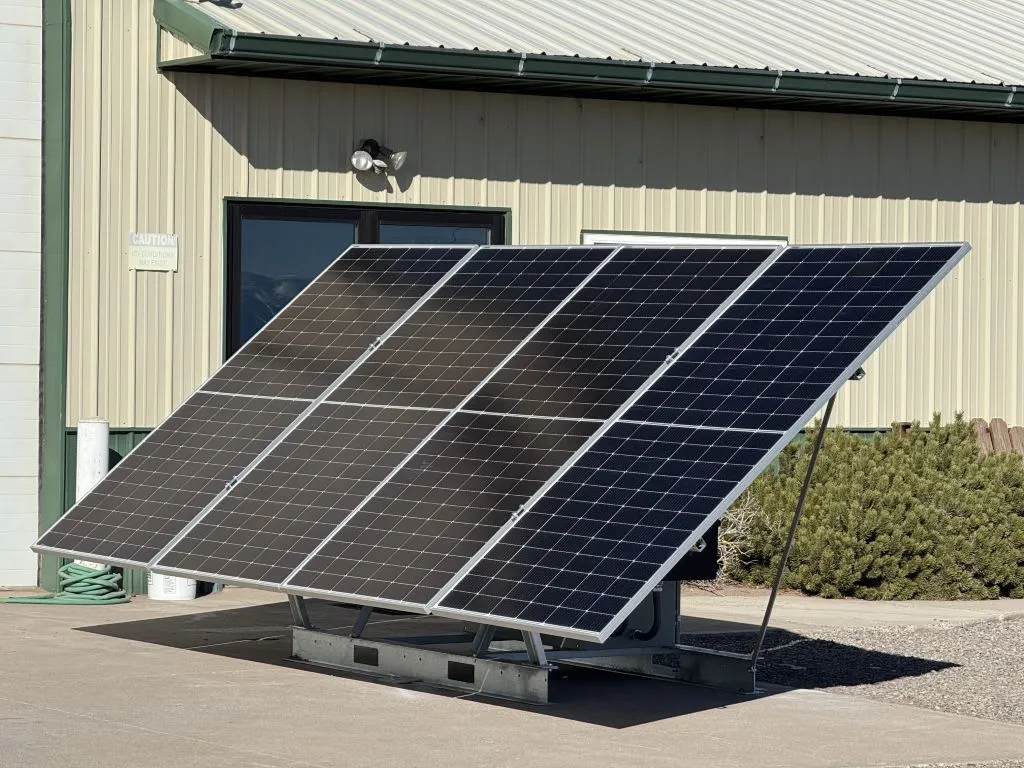

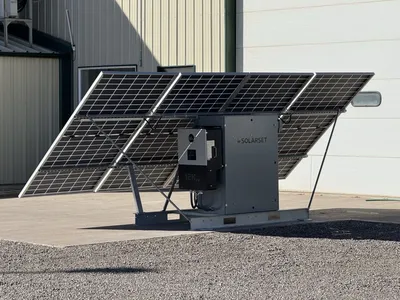

NEW SOLARSET LT-4-OGS-2.75-10.2

4- Panel 2.75 kW Standard Off-Grid Solar System
• (4) 688 Watt (BSTC), Bifacial Monocrystalline Solar Panels.
• (1) EG4 Inverter, UL 1741 Certified, Nema 3R, Includes DC disconnect. Capable of online monitoring if connected to the internet.
• (2) EG4 Batteries, Lithium Iron Phosphate, 5.1 kWh, 48 Volt DC.
• (1) Battery Control Cabinet, Nema 4x, Insulated & Temperature Controlled.
• (1) Manual AC Disconnect Switch (Customer connection point).
• Inverter AC Output, Nominal: 8.0 kW, 208/240 Volt, Single Phase, 60 Hz.
• Battery Bank Capacity: 10.2 kWh.
• All components listed above to be mounted on a steel framework and are prewired together according to National Electrical Code (NEC). Unit completely assembled, programmed & tested prior to shipping from factory.
• Approximate Unit Dimensions: 16'L x 6'W x 5'10"H (Folds to 9'2" L for shipping.)
*Note: Shipping, anchoring, installation, permitting, and sales tax (if applicable) are not included and are quoted separately. AC output rating is limited on the inverter unless additional batteries are added. This model can be used in Off-Grid applications only and is not certified for grid-tie operation.
These systems are fully customizable, and we can support up to 10 megawatts (MW) commercial solar projects.
