DIE/MOLD & AEROSPACE INDUSTRIES

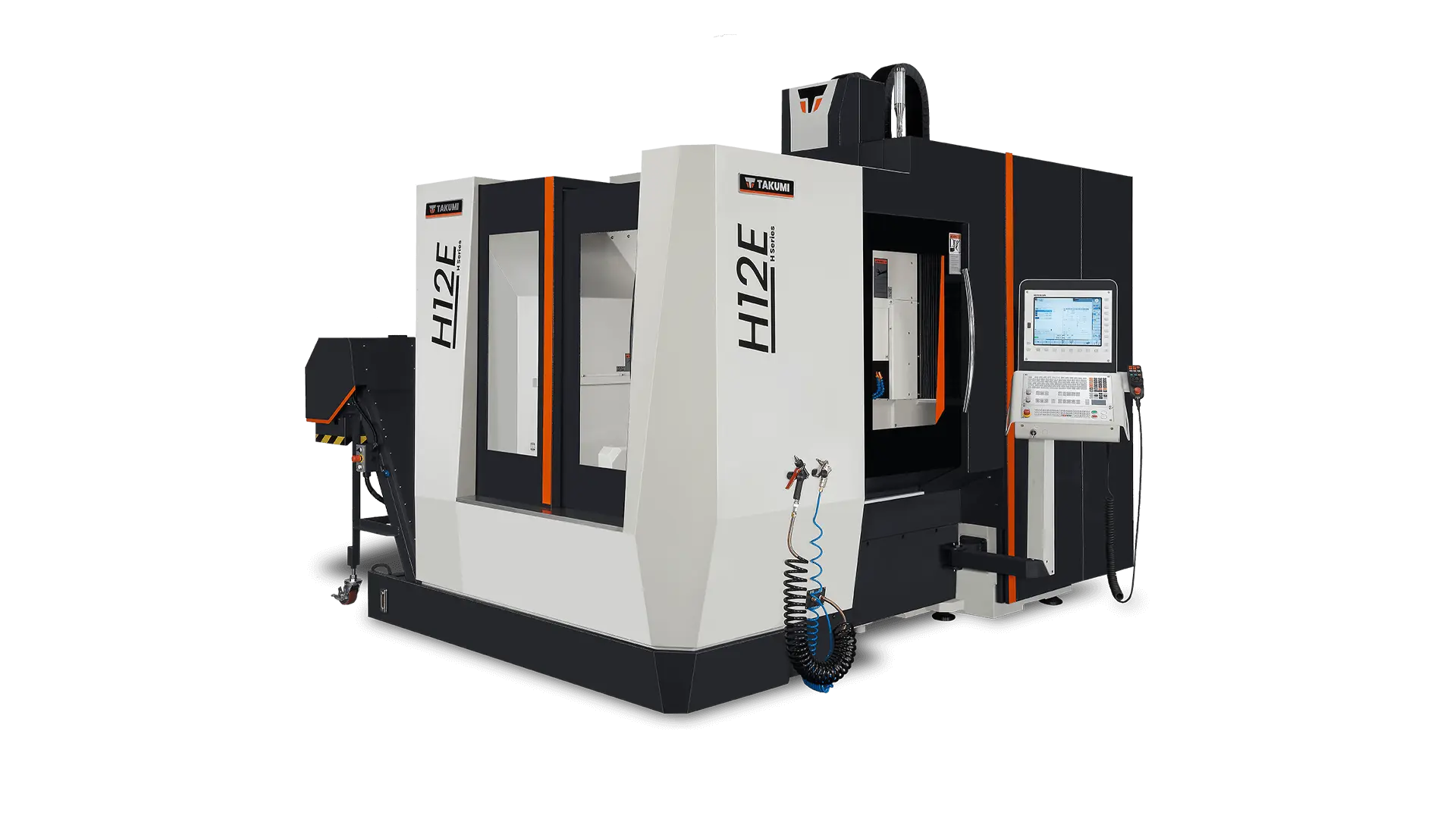

The Takumi H Series bridge mills — or double-column machining centers — are designed to be dynamic and accurate as demonstrated in both surface finish, quality, and consistent precision.
Unrivaled Performance + Accuracy
• Designed for parts that require outstanding speed and accuracy, and unparalleled surface finish.
• H-Series machines offer an extremely rigid and thermally stable double-column design.
• These 3-axis models feature high-speed, inline spindles with up to 15000 rpm.
• World-class performance for die/mold, aerospace, and other high-speed applications.
• Close proximity of spindle to bridge casting reduces overhang.
• Ladder design of bridge provides greater support for the head casting.
• Swiveling control panel optimizes floor space utilization.
• Extra wide door openings facilitate convenient loading and unloading.
• Large windows provide optimal visibility.
• Robust, precision-machined castings.
• Hand-scraped contact areas.
• Linear scales ensure repeatability and accuracy.
• Roller-type rails on all axes add rigidity.
• Integrated washdown and chip management system.
• Direct-coupled ballscrews increase accuracy.
• Absolute encoders ensure fast startup.
• BIG-PLUS® spindles increase rigidity and reduce tool deflection.
• Fanuc© 0i-MF Plus Control.
| X | 49.2" | 1,249.7 mm |
| Y | 37.4" | 949.96 mm |
| Z | 22.8" | 579.12 mm |
| # Axis | 3 | 3 |
| Power | 24.8 hp | 18.5 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | Big Plus® CAT 40 | Big Plus® CAT 40 |
| Control | CNC (Fanuc 0i-MF) | CNC (Fanuc 0i-MF) |
| Weight | 21627 lbs. | 21627 lbs. |
Configuration: 3-Axis Double Column
Travels: 49.2 x 37.4 x 22.8 in
Spindle Speed & Torque: 15000 rpm | 105.5 ft-lbs
Spindle Power: 24.8 hp
