NEW SOLARSET 16-OGP-11.17-19.0-1-F

16- Panel 11.17 kW Premium Off-Grid Solar System

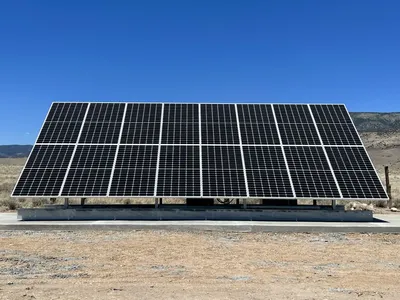

• (16) 698 Watt (BSTC), Bifacial Monocrystalline Solar Panels, Industrial Grade.

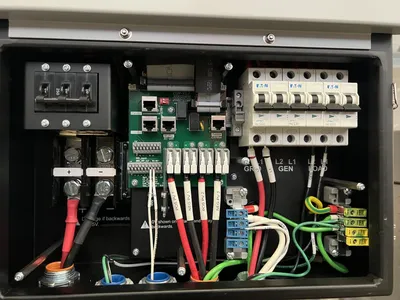

• (1) Solark Inverter, UL 1741 Certified, Nema 3R, Includes DC disconnect. Capable of online monitoring if connected to the internet.
• (5) Briggs & Stratton Batteries, Lithium Iron Phosphate, 3.8 kWh, 48 Volt DC.
• (1) Battery Control Cabinets, Nema 4x, Insulated & Temperature Controlled.
• Built-In AC Disconnect Switch in Solark Inverter (Customer connection point).
• Inverter AC Output, Nominal: 9.0 kW, 208/240 Volt, Single Phase, 60 Hz.
• Battery Bank Capacity: 19.0 kWh.
• Inverter capable of handling generator and/or grid input for additional power source.

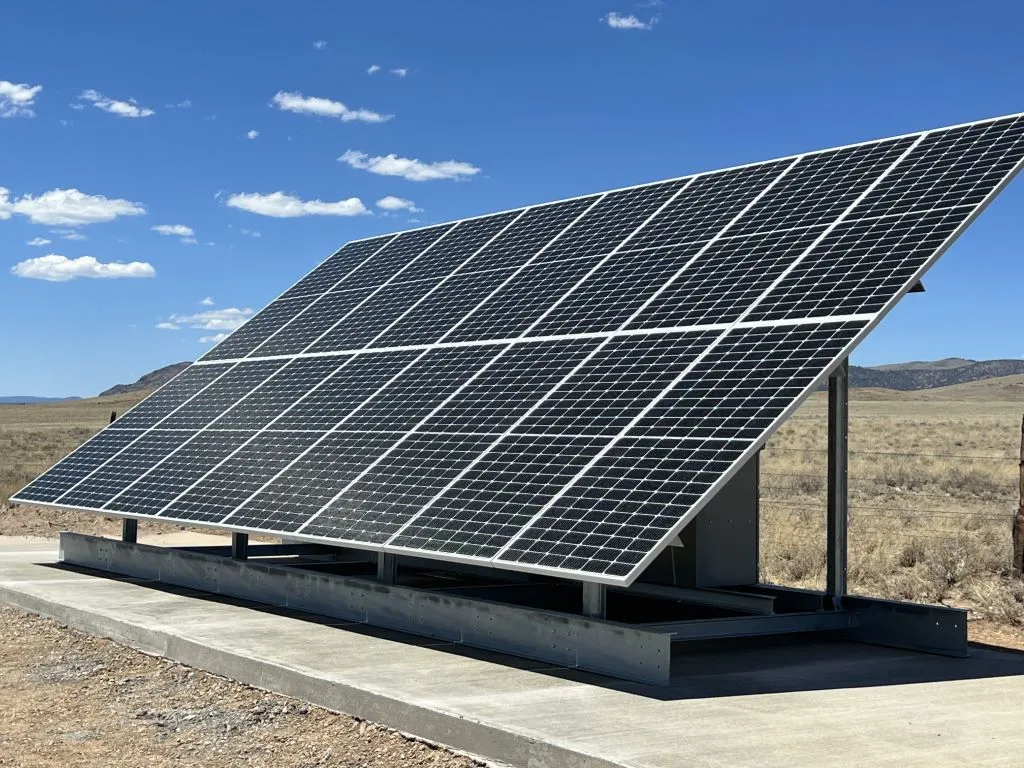

• All components listed above to be mounted on a galvanized steel framework and are prewired together according to National Electrical Code (NEC). Unit completely assembled, programmed & tested prior to shipping from factory.
• Approximate Unit Dimensions: 30'L x 133"W x 11'10"H (folds to 8'6"W x 9'7" H for transporting).
*Note: Shipping, anchoring, installation, permitting, and sales tax (if applicable) are not included and are quoted separately. This model can be used in Off-Grid applications, or Grid-Tie Battery Backup applications.
These systems are fully customizable, and we can support up to 10 megawatts (MW) commercial solar projects.

Volts: 240
Phase: 1
KW: 11.17
