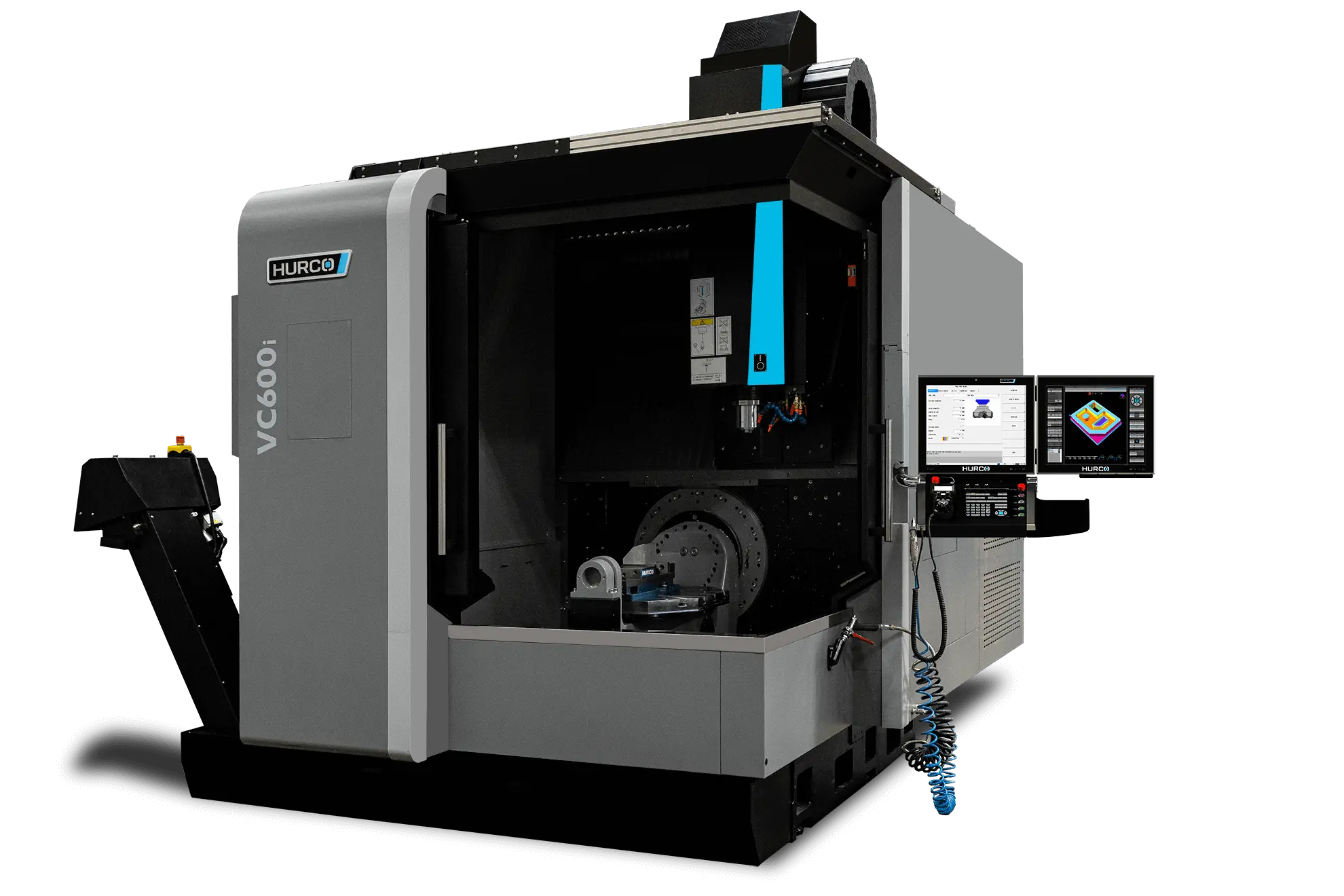

NEW HURCO VC600I

The B-axis of the universal design provides superb undercutting ability with a full 110° in both positive and negative directions and lets you use shorter tools when cutting smaller parts. On a traditional A-axis trunnion, the tools approach the part from behind the A-axis trunnion, which means you’re forced to use longer tools for clearance. Since the B-axis trunnion of the VC/VCX machines tilts around the Y-axis, the tool is always approaching the part from a safe direction, which minimizes the possibility for interference. Simultaneous 5-Axis (not just 3+2)

Universal design results in a small footprint with large work cube and easy part access. » Hydraulic tilt/rotary axis braking, instead of pneumatic, provides more clamping power. » +110° / -110° B-axis motion delivers better undercut capability. » Optimal table height. » 2 or 4 passage rotary unions for hydraulics and/or air. » Simultaneous 5-Axis (not just 3+2). » One-piece, solid, cast-iron machine base. » The integrated trunnion table with a lower mounted B-axis table surface provides a larger work envelope. » 12,000 rpm direct drive spindle. » Best-In-Class Yaskawa Sigma V Drives. » LED lighting shines brighter and saves energy. » WinMax® Mill Conversational and NC Programming. » 5-axis/5-sided software features – Tool Path Linearization, Tool Center Point Management, Transform Plane, 3D Tool Compensation, Tool Vector Input & Retract, Shortest Angular Traverse, 3D Import. » Robust control specifications (standard, not an option) – 4GB RAM Memory, 10,000 block lookahead, 128GB Solid State Hard Drive, 2.7GHz Dual Core Processor. » Ergonomically-designed control console with two* 19” LCD touch-screens. » WinMax® Mill Conversational and Industry Standard NC programming. » Patented Motion Control System (UltiMotion®) is standard, not an option.
