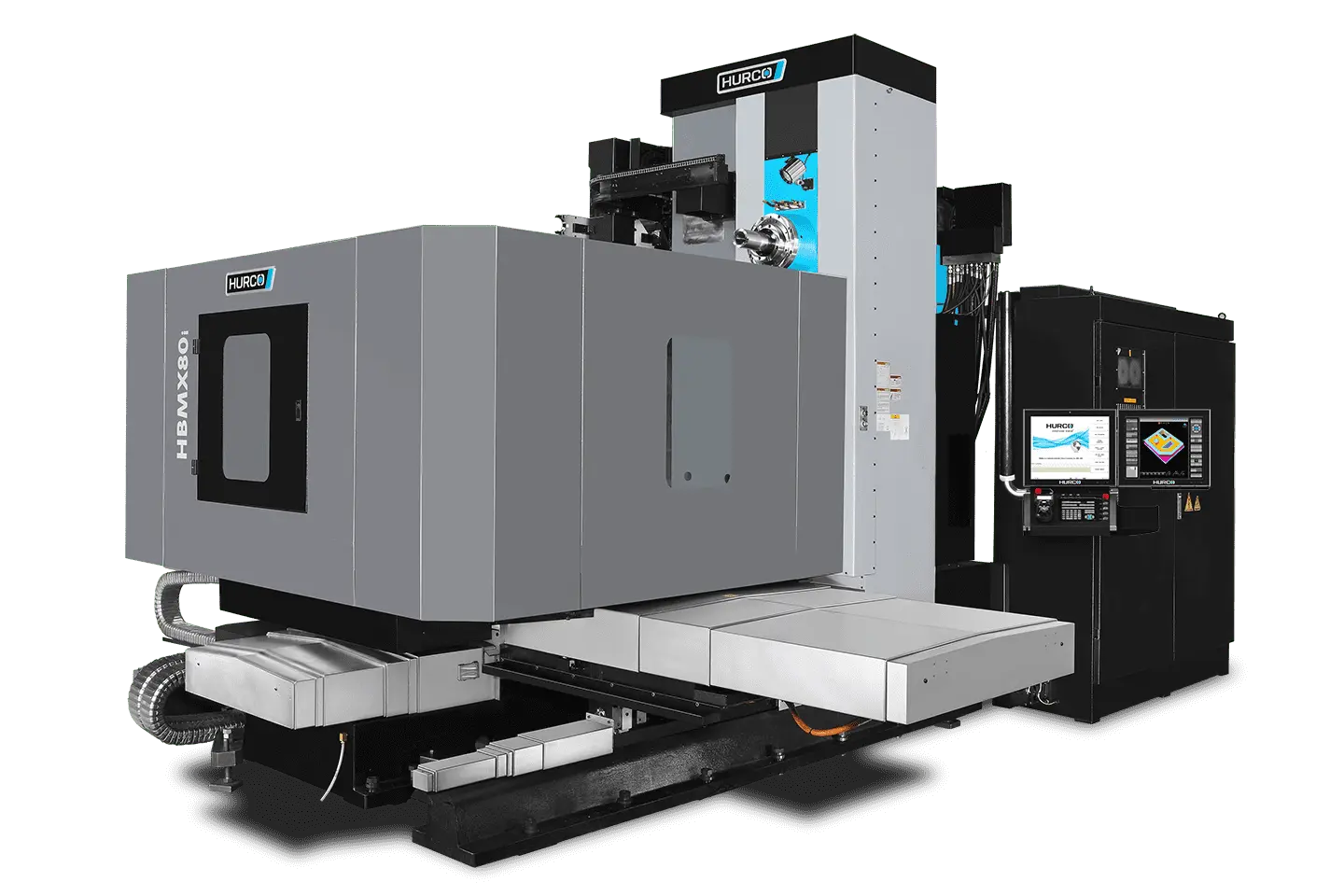

Introducing the new HURCO HBMX80I, a robust horizontal boring mill with a 77.8" x-axis, 70.1" y-axis, and 66.9" z-axis. Equipped with a powerful 40.2 hp spindle reaching 2500 RPM, this 4-axis machine enhances precision and efficiency for your operations.
| X-Horiz Tvl of Col | 77.8" | 1,976.1 mm |
| Y-Vert Tvl of Head | 70.1" | 1,780.5 mm |
| Power | 40.2 hp | 30 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Z-Spdl Tvl | 66.9" | 1,699.3 mm |
| Control | CNC | CNC |
Configuration: 4-Axis
Travels: 77.8 x 70.1 x 66.9 x 19.7 in
Spindle Speed & Torque: 2500 rpm | 303.9 ft-lbs @ 695.5 rpm
Spindle Power: 40.2 hp
