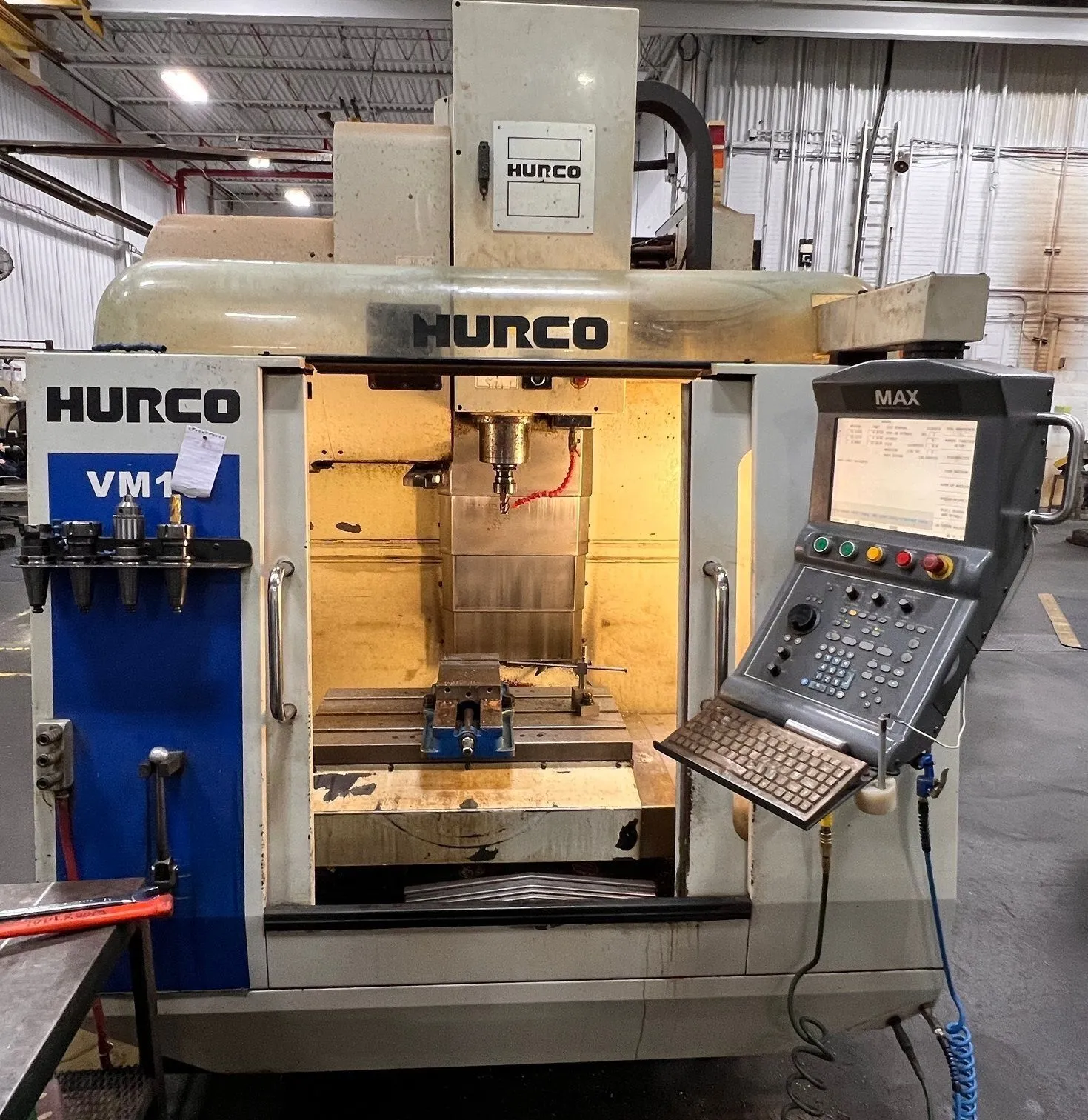

The Hurco VM CNC vertical milling machines offer powerful machining with a compact footprint, and absolutely the best value on the market. These small CNC machining centers are the perfect combination of size and functionality. Designed to conserve space with the smallest possible footprint, the VM mills are loaded with remarkably big capacity, productivity and user flexibility.
| X | 26" | 660.4 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Table-W | 30" | 762 mm |
| Table-L | 14" | 355.6 mm |
Machine Travels (X,Y,Z) 26" x 16" x 20"
Table Size 30" x 16"
Max Work Load 750 lbs
Spindle Motor 15 HP
Spindle Speed 10,000 RPM
Tooling Type CAT 40

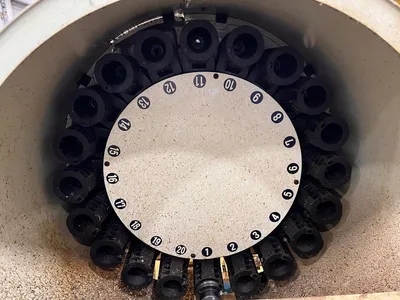

Number of ATC Stations 20
Max Tool Diameter 3.5"
Max Tool Length 9.8"
Max Tool Weight 15.5 lbs
Rapid Traverse Rate 945 IPM
Max Programmable Feedrate 300 IPM
Coolant Tray Dimensiions 16" x 48" x 15"H
Coolant Tray Weight 62 lbs
Machine Dimensions 78" x 91" x 100"H
Machine Weight 6,400 lbs
* Hurco WinMax CNC Control

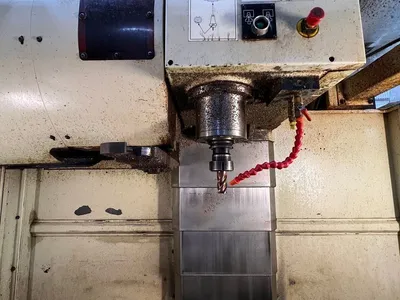

* 10,000 RPM Spindle
* Rigid Tapping

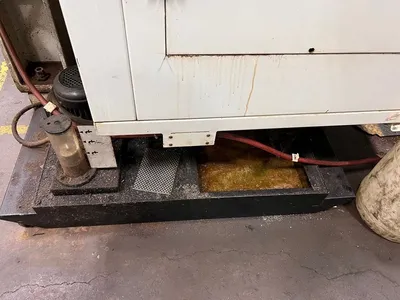

* Coolant Tray

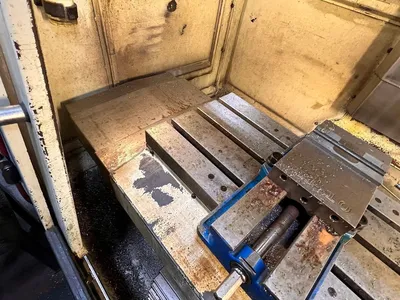

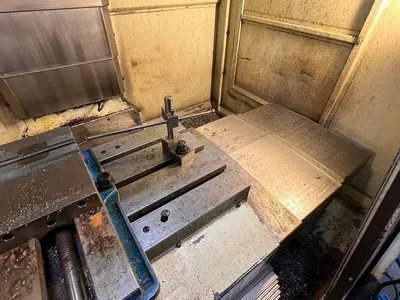

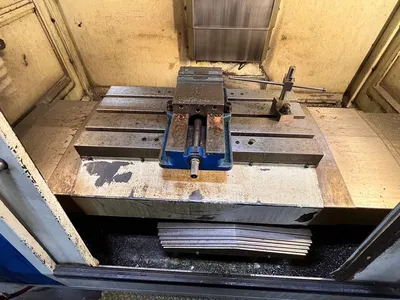

** Table vise and tooling shown are NOT included with the machine.
