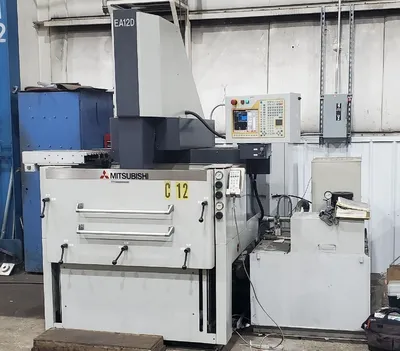

USED 2012 MITSUBISHI EDM EA12D
Overview
Mitsubishi EA SERIES features:
Fuzzy pro emulates an experienced operator optimizing the burn process from rough to finish orbit.
High-speed jump creates the ability to do most burns with no flush.
Saddle-less column movement system uses a special combined linear motion way system.
New digital AC Smart Servo System improves resolution to 0.05 µm (2 millionths inch) speeding response time.
Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed.
SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining.
PS circuit provides accurate finish by controlling surface pulse discharge.
Specs
Machining Stroke ( X x Y x Z ) 15.7" x 11.8" x 11.8"
Worktank Internal Dimensions 41.3" x 27.5" x 17.7"
Dielectric Fluid Level (Max / Min) 15.7"/ 7.0"
Maximum Workpiece Dimensions 39.3"x 25.5" x 13.7"
Maximum Workpiece Weight 2,200 lbs
Table Dimensions 27.5" x 19.6"
Table to Platen Distance 11.8" x 23.6"
Machining Movement (C) 360 Degrees
C Axis Increment 0.001 Degree
Min. Command Input .00001"
Resolution .000002"
Tank Type Fixed Tank
Worktank Access Front Drop Door
Maximum Current 60 Avg Amps / 80 Peak Amps
Graphic Display 10.4" TFT Color LCD
Power Requirement 200-220/3/60
Maximum Electrode Weight 110 lbs / 11 lbs with C-Axis
Shuttle Type AEC 4/7 Positions
Rapid Traverse 78.74 IPM
Dielectric Capacity 132 Gal
Installation Dimensions (W x D ) 91.5" x 87.2"
Total Shipping Weight 6,889 lbs
Machine Tool Dimensions ( L x W x H ) 72.4" x 80.7" x 93.5"H
Equipped With

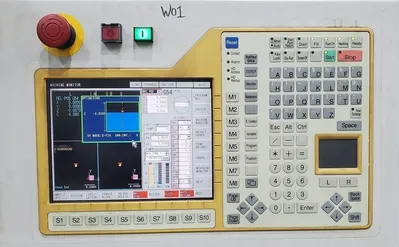

* Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD
* C Axis (System 3R Combi)
* 4/7 Position Automatic Electrode Changer (System 3R Macro/Macro Jr)
* High Speed Jump Cycle
* Fuzzy Pro3 Plus Orbit Pro
* E.S.P.E.R. Programming
* Fixed Table Traveling Column Design
* Rotary Glass Scales(X,Y), Linear Glass Scale(Z)
* 80 AMP FP60EA Power Supply
* Remote Hand Controller
* Auto Lubrication
* 10MB User Program Storage On Hard Drive
* RS-232C Port and Ethernet Port for DNC
* Auto Fill & Drain
* Dielectric Tank With Pump and Filtration
* Electric Chiller

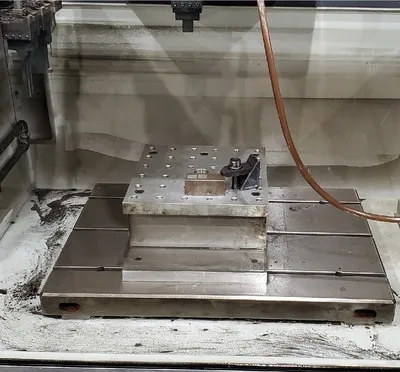

* Sub-table fixture included
* All Available Manuals and Accessories
** 3R tooling pictured is NOT included with the machine.
