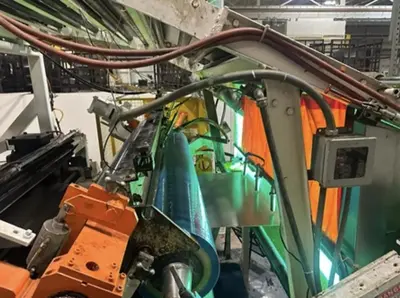

68” x .032” x 45,000 lb Laminating / Bonding Adhesive Line
Overview
This used laminating and bonding adhesive line, custom-built for versatile industrial applications, is designed for processing steel and aluminum materials. It handles a maximum steel thickness of .032 inches and aluminum up to .040 inches. The line accommodates a coil width of up to 68 inches and a substantial coil weight of 45,000 lbs, with both entry and exit coil diameters estimated at 72 inches. Equipped to operate at a line speed of 25 FPM, this equipment is set up for a left-to-right direction processing flow.
Essential components of the line include a four-arm entry storage turnstile, floor-level coil loading cars, cantilevered mandrel uncoilers, and hydraulic drum mandrels, supported by an electronic edge control system. The system also features a video inspection setup with seven camera views to ensure precision. With a dual-level Unitherm three-zone natural gas-fired furnace and a Black Brothers traversing horizontal coil coater, the line is optimized for efficiency and comprehensive processing capability.
Additional features include an upper and lower strip threading system with non-marking rollers, strip centering guides, and an exit straightener. Operator convenience is enhanced with a closed-loop hydraulic system, AC controls, and variable speed drive controls to ensure smooth operation. This line is a robust solution for plants aiming to enhance their laminating and bonding processes with reliable and high-capacity equipment.
Four-Arm Entry Storage Turnstile #1
Floor-Level Coil Loading Car #1
Cantilevered Mandrel Uncoiler #1
Uncoiler #1 Mandrel: 20" / 24" Hydraulic Drum
Uncoiler #1 Slide Base
Uncoiler #1 Hold-Down Roll
Uncoiler #1 Feed-Up Drive / Drag Generator Brake: 125 HP
Electronic Edge Control System #1
Pivoting and Telescoping Peeler Blade #1
Entry Pinch Rolls #1
Four-Arm Entry Storage Turnstile #2
Floor-Level Coil Loading Car #2
Cantilevered Mandrel Uncoiler #2
Uncoiler #2 Mandrel: 20" / 24" Hydraulic Drum
Uncoiler #2 Slide Base
Uncoiler #2 Hold-Down Roll
Uncoiler #2 Feed-Up Drive / Drag Generator Brake: 125 HP
Electronic Edge Control System #2
Pivoting and Telescoping Peeler Blade #2
Entry Pinch Rolls #2
Upper and Lower Strip Threading System With Non-Marking Rollers

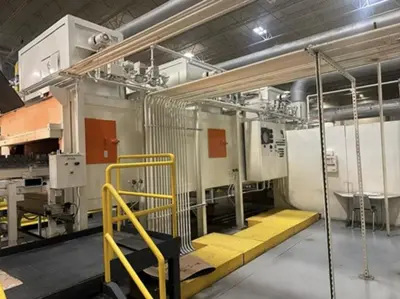

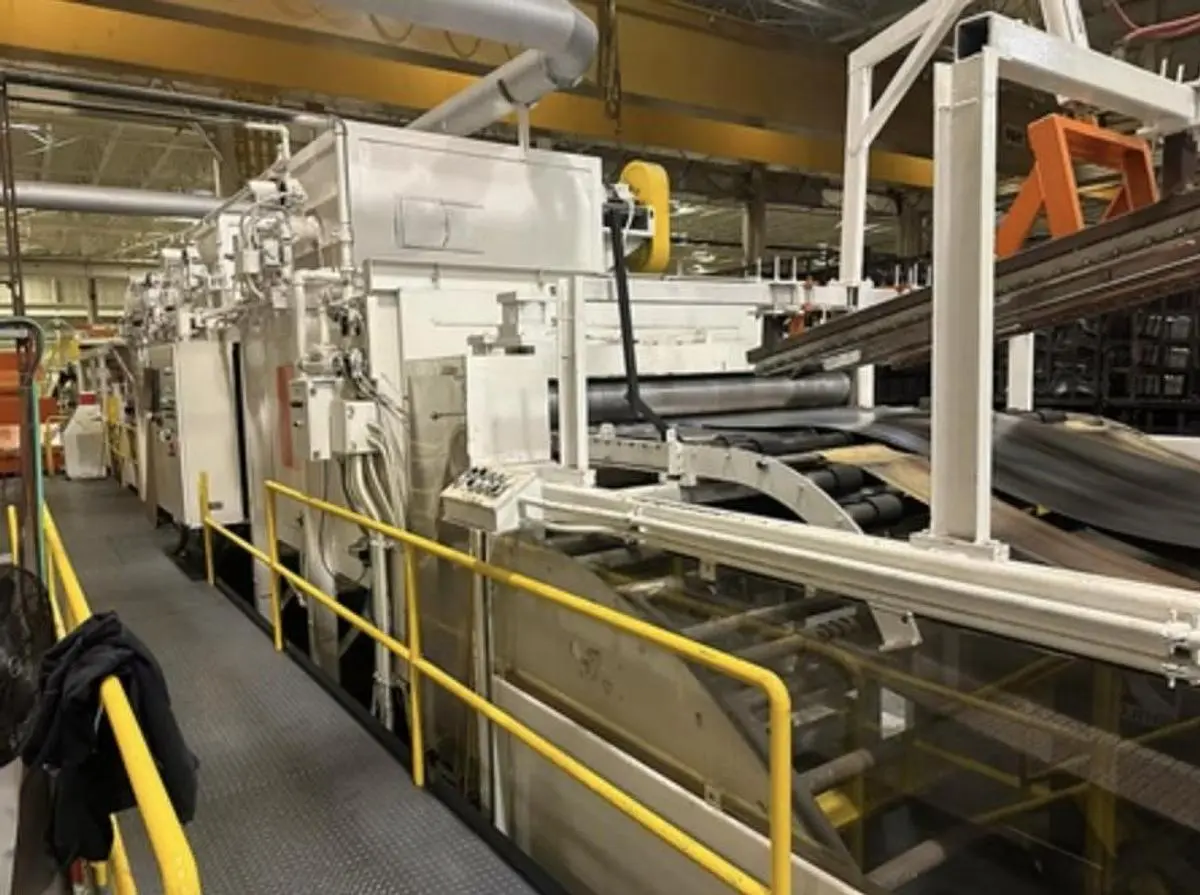

Unitherm Dual-Level, Three-Zone, Natural Gas-Fired Furnace #1
Upper and Lower Strip Cascade Rolls With Non-Marking Rollers
Video Inspection System With (7) Camera Views
Injector-Style Strip Laminating Head With DC Drive
Black Brothers Traversing Horizontal Coil Coater
Unitherm Single-Level, Three-Zone, Natural Gas-Fired Furnace #2
Strip Centering Guides
Exit Straightener
Exit Crop Shear
Pad-Type Tension Stand
Three-Roll Exit Bridle Set
Cantilevered Mandrel Recoiler With Poly-Covered Winding Drum and Slide Base
Non-Marking Belt Wrapper for High-Speed Threading
Pit-Type Coil Unloading Car
Operator Control Stations
AC Controls
Variable Speed Drive Controls
Closed-Loop Hydraulic System
Specs
Line Direction: Left to Right
Material: Steel and Aluminum
Maximum Steel Thickness: .032"
Maximum Aluminum Thickness: .040"
Maximum Coil Width: 68"
Maximum Coil Weight: 45,000 Lbs.
Maximum Entry Coil O.D.: 72" Estimated
Maximum Exit Coil O.D.: 72" Estimated
Entry Coil I.D.: 20" or 24" Estimated
Exit Coil I.D.: 20" Estimated
Maximum Line Speed: 25 FPM
