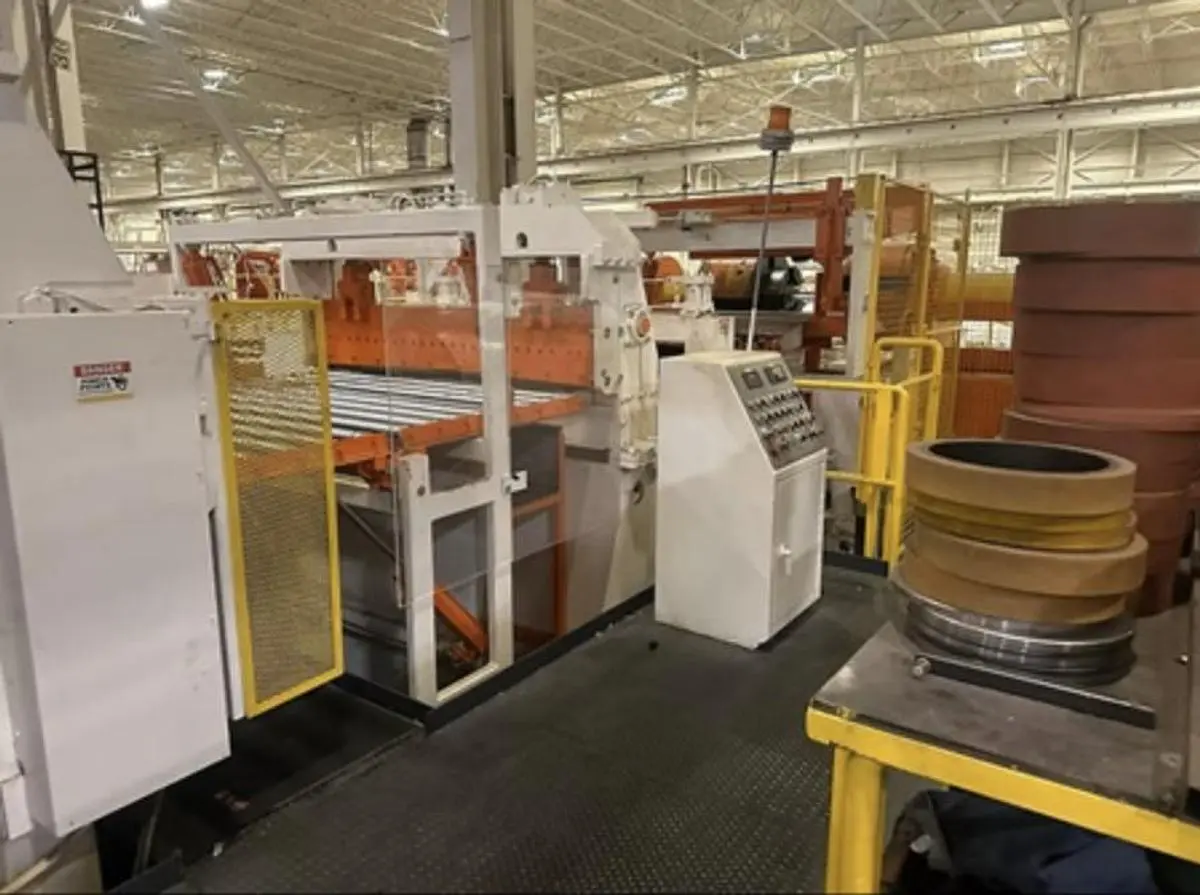

72” x .125” x 75,000 lb Strilich/Bradbury Multi-Blanking Line

Specifications:
Manufacturer: Strilich / Bradbury
Line Direction: Right To Left
Material: CRS, HRPO, Hot Dip Galv, Electro Galv, Pre-Painted
Thickness Range: .015” – .125”
Yield Strength: 20,000 – 80,000 PSI
Coil Width: 12” – 74”
Max Coil Weight: 75,000 lb
Max Coil OD: 72”
Coil ID: 20” – 24”
Blank Length: 12” – 180”
Single Blank Width: 12” – 74”
Multi-Blank Width: 8” – 36”
Leveler: 17 Roll Bradbury, 7 Flight, 4 High, Hydraulic
Slitter Head Type: Half-Head Injector w/ Shuttle Tray
Number Of Slitter Heads: Two (2)
Slitter Arbor Diameter: 8”
Shear Type: High Speed Mechanical
Roll Feeder: Full Width Rolls, 4 High
Stacker: Air Float w/ Mechanical Dividers
Pack Height: 30” Max (Including Pallet, Estimated)
Pack Weight: 20,000 lb Max
Line Speed: 250 FPM Max
Uncoiler Drive: 100 HP Unico DC Feed-Up Drive / Drag Generator Brake
Leveler Drive: 200 HP DC
Slitter Drive: 75 HP DC
Scrap Baller Drive: AC Motor
Roll Feeder Drive: AC Induction Motor
Shear Drive: 15 HP AC Motor
Line Components:
Coil Storage Saddles w/ One (1) Position
End Traveling Coil Loading Car
Automatic Feed Dual Expanding Mandrel Uncoiler w/ 100 HP DC Feed-Up Drive / Drag Generator Brake
Machine Mounted Hold Down Roll
Pivoting And Telescoping Peeler Blade
Automatic Edge Guide System
Entry Pinch Rolls
Roller Type Strip Centering Guides
Entry Crop Shear w/ Threading Table And Scrap Cart
Leveler Entry Pinch Rolls
Bradbury 17 Roll, 7 Flight, 4 High Hydraulic Leveler w/ DC Drive
Strip Inspection And Carry-Over Table
Roller Type Strip Centering Guides
Slitter Base And 75 HP DC Drive

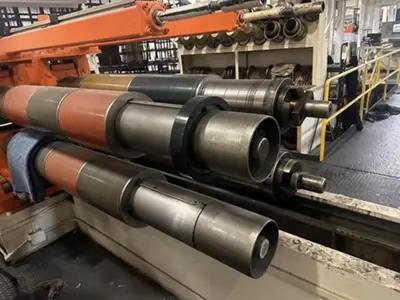

Two (2) Packed Arbor Injector Slitter Heads w/ 8” Arbors
Powered Slitter Head Injector System
Slitter Head Storage Tray w/ Two (2) Positions
One (1) Lot Of Slitter And Separator Tooling w/ Cabinets
Heavy-Duty Edge Trim Scrap Baller System w/ AC Motor
Strip Inspection And Carry-Over Table
Looping Pit Quadrant Tables w/ Belt Style Threading Table
Roller Type Strip Centering Guides w/ Entry Strip Separator Spindle
Adjustable Strip Bridle Roll Assembly
Full Width, 4 High Roll Feeder
High Speed Mechanical Shear w/ AC Motor
Pivoting Belt Conveyor For Inspection And Transporting Blanks Into Stacker Or Scrap Cart
Belt Conveyor Mounted Traversing Blank Hold-Down System
Belt Conveyor Mounted Stacker Feed Rolls
15’ Nominal Air Float Stacker w/ Air Blower And Eight (8) Adjustable Strip Dividers
15’ Nominal Powered Skid Injector
15’ Nominal Elevating Stacker Lift Table w/ End Discharge Rollers
20’ Nominal Package Runout w/ End Discharge Rollers And Scale
Operator Control Stations
AC Controls
Variable Speed Drive Controls
Closed Loop Hydraulic System
