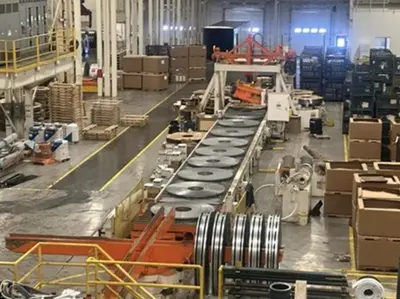

72” x .135” x 65,000 lb Stamco Single Loop Slitting Line

Specifications:
Manufacturer: Stamco
Material: CRS, HRPO, Hot Dip Galv, Electro Galv, Pre-Painted
Thickness Range: .015” – .135”
Shear Strength: 40,000 – 90,000 PSI
Yield Strength: 35,000 – 90,000 PSI
Max Coil Width: 72” (74” Untrimmed)
Min Coil Width: 12”
Max Coil Weight: 65,000 lb (Entry & Exit)
Coil OD: 36” – 80” (Entry & Exit)
Coil ID Entry: 20” – 24” (28” – 32” With Filler Plates)
Coil ID Exit: 20” Or 24” (Quick Change “Quill” Type Drums)
Line Direction: Left To Right (Turnstiles Load And Unload On Drive Side)
Slitter Arbor Diameter: 8.000”
Number Of Slitter Heads: Two (2) Packed Arbor
Number Of Edge Trimmer Heads: One (1)
Slitter Head Exchange: Injector Style With Rotating Carousel Tray
Line Speed:
Low Gear: 500 FPM
High Gear: 1,000 FPM
Uncoiler Drive: 200 HP DC Feed-Up Drive / Drag Generator Brake
Slitter Drive: 125 HP DC
Scrap Baller Drive: AC Motor
Tension Stand Drive: 125 HP DC Feed-Up Drive / Drag Generator Brake
Recoiler Drive: 200 HP DC
Line Components:
Four Arm Entry Storage Turnstile
Floor Level Coil Loading Car
Cantilevered Mandrel Uncoiler w/ 20” / 24” Hydraulic Drum, Slide Base
Down Roll And 125 HP Feed-Up Drive / Drag Generator Brake
Uncoiler Outboard Support
Bolt-On Plastic Uncoiler Filler Plates For 28” To 32” ID Coils
“North American” Electronic Edge Control System
Dual Pivoting And Telescoping Peeler Blades
Entry Pinch Rolls
Entry Crop Shear w/ Threading Table And Scrap Cart
“Loral” Non-Contact Thickness Measurement System
Roller Type Side Guides
Pivoting Slitter Entry Bridle Roll
Slitter Base And 125 HP DC Drive
Two (2) Packed Arbor Injector Slitter Heads w/ 8.000” Arbors
One (1) Side Trimming Injector Head
Powered Slitter Head Injector System
Slitter Head Storage Tray w/ Three (3) Positions
Lot Of Slitter And Separator Tooling w/ Cabinets
Heavy-Duty Edge Trim Scrap Baller System
Pivoting Pit Threading Tables
Dual Strip Separator Spindles w/ Quick Change Tooling System And Strip Snubber

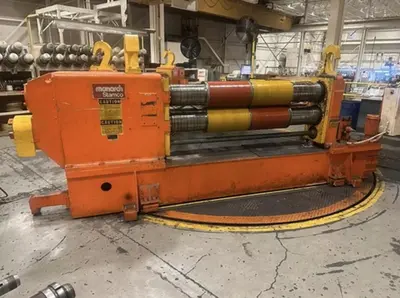

Roll Type Tension Stand w/ 125 HP DC Feed-Up Drive / Drag Generator Brake
Tail Clamping Pad
Thirteen (13) Roll Shape Correction Leveler w/ Quick Change Cassette
Exit Crop Shear And Scrap Cart
Pivoting Scrap / Strip Inspection Table w/ Overhead Lights
Exit Pass Line Roll
Pivoting Recoiler Threading Table w/ Strip Hold-Down Clamp

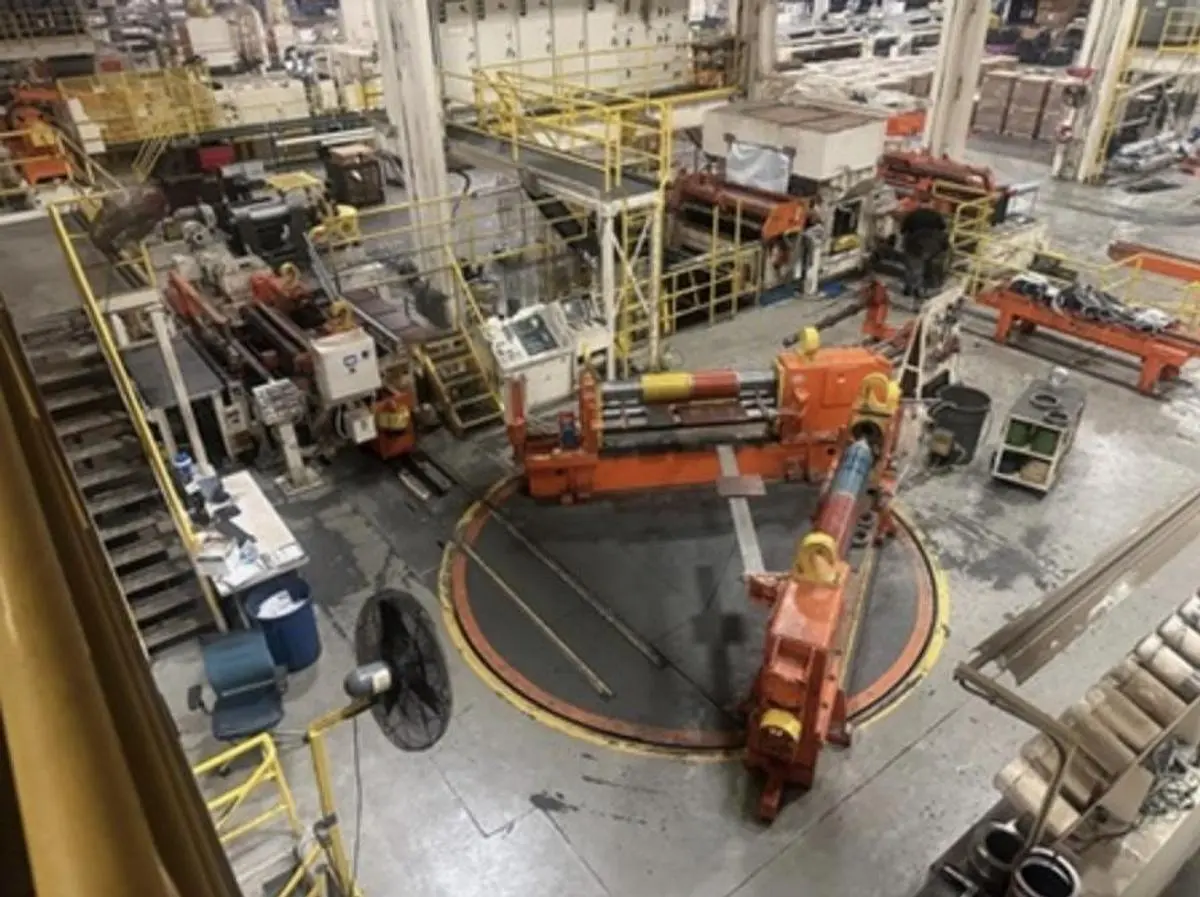

20” / 24” Quill Type Drum Turret Recoiler w/ Sliding Coupling
200 HP DC Drive
Turret Recoiler Rotating Base w/ Two (2) Hollow-Bore Drum Frames
Pivoting Overarm Separators And Two (2) Coil Pushers
Floor Level Coil Unloading Car w/ Powered Coil Stabilizing Clamp
“In-Floor” Powered Turntable (90 Degree Rotation)
“In-Floor” Scale For Exit Coil Weight
Four (4) Arm Exit Storage Turnstile
Operator Control Stations
AC Controls
Variable Speed Drive Controls
Closed Loop Hydraulic System
