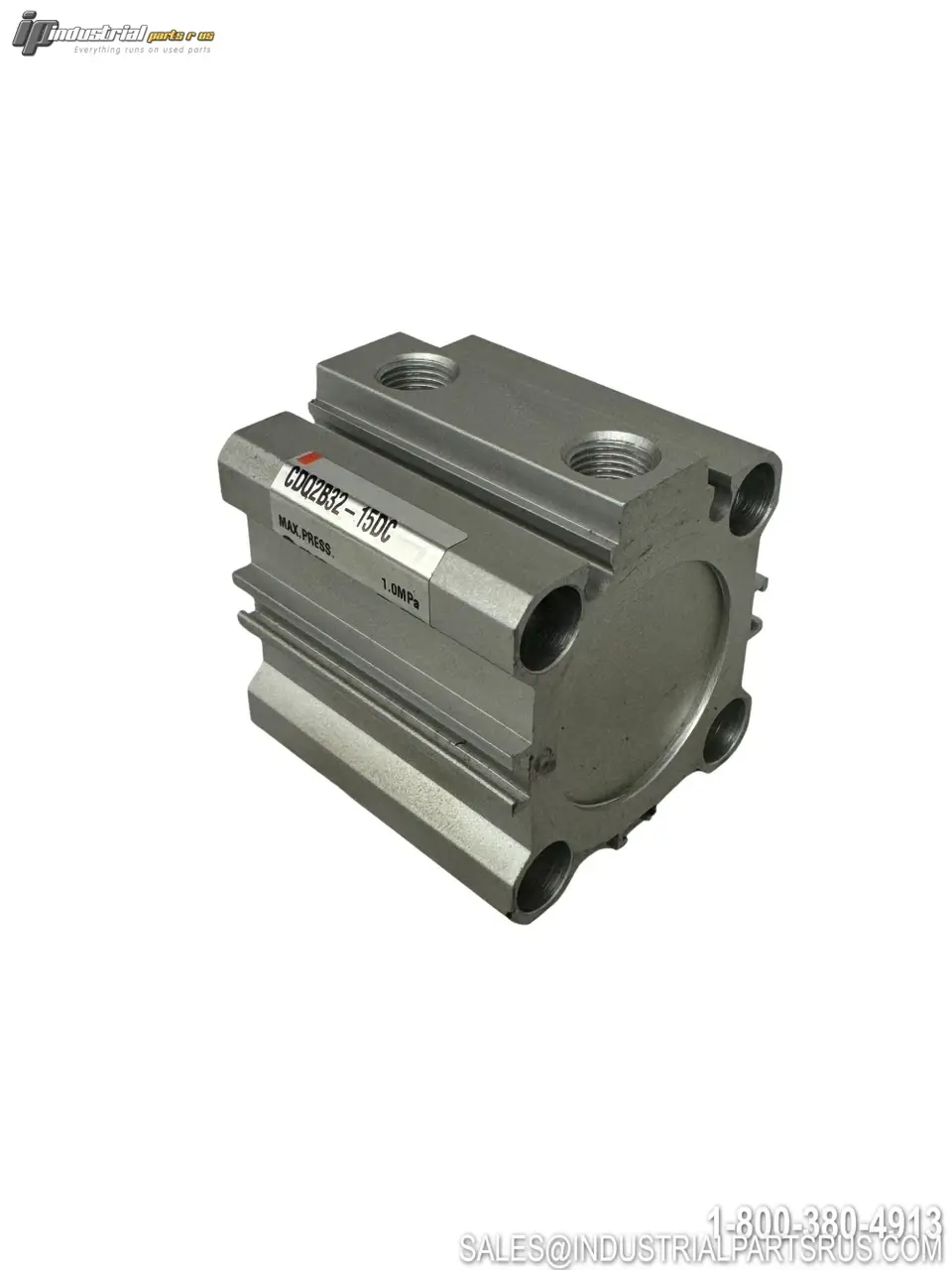

NEW SMC CDQ2B32-15DC
Overview
Description
The SMC CDQ2B32-15DC is a double-acting compact pneumatic cylinder from the CQ2 series designed for space-saving applications. This cylinder features a 32mm bore diameter and 15mm stroke length with through-hole mounting configuration and female threaded rod end.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B32-15DC
Series
CQ2
Bore Diameter
32mm
Stroke Length
15mm
Cylinder Type
Compact Cylinder
Action
Double-Acting
Rod Configuration
Single Rod
Rod End Thread
Female Thread
Mounting Type
Through Hole
Port Thread
Rc Thread
Maximum Operating Pressure
1.0 MPa
Minimum Operating Pressure
0.05 MPa
Operating Temperature Range
-10°C to +60°C
Overall Height
45mm
Overall Length
55mm
Overall Width
49.5mm
Magnetized Piston
Yes
Auto Switch Capable
Yes
Cushioning
None
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1443
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B32-15DC
Shelf: B-15
Bore Diameter: 32 mm
Model: CDQ2B32-15DC
MPN: CDQ2B32-15DC
Type: Compact Cylinder
