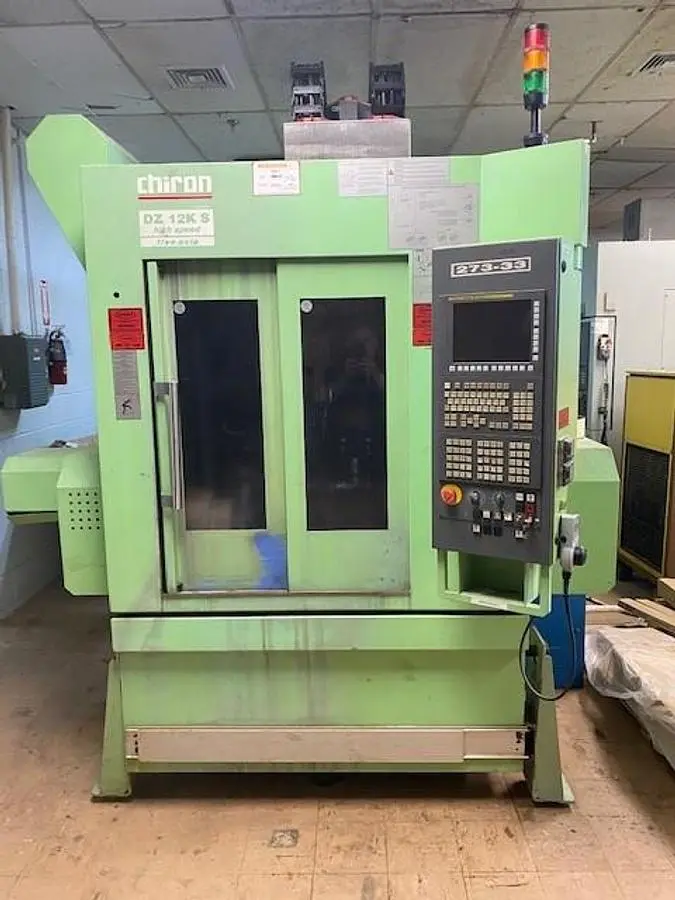

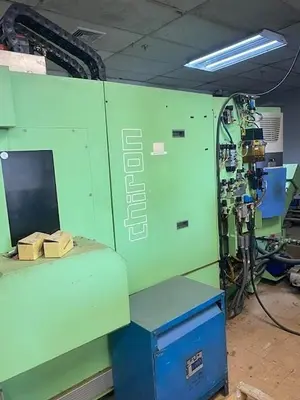

USED 2003 CHIRON DZ-12K S HIGH SPEED 5 AXIS VMC

Fixed Table Design

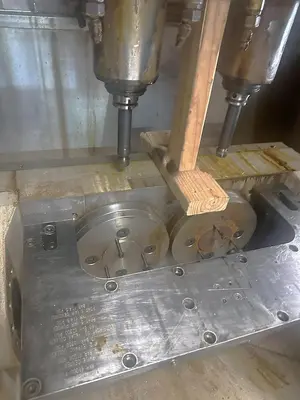

Rotary Tilt Style 5 Axis Table
Twin Spindle Design - 15,000 RPM
Dual 16 Station Side Mounted Tool Changers
3 Color Machine Status Condition Lights
Remote Jog Handle

**Optional 440V Transformer Available**

The 2003 Chiron DZ-12K S High Speed 5 Axis VMC is a robust and efficient vertical machining center designed for complex and precise machining tasks. It features dual spindles capable of reaching speeds up to 15,000 RPM, making it suitable for high-speed manufacturing. The machine is equipped with the reliable Fanuc Series 31i Model A5 Control, facilitating easy operation and programming.

This VMC offers a versatile working envelope with an X-axis travel of 21.67 inches, Y-axis travel of 15.76 inches, and Z-axis travel of 14.18 inches. Its rotary/tilt type table provides comprehensive flexibility with +/- 360 degrees rotation on the C-axis and +/- 120 degrees on the A-axis. The tool handling is efficient, thanks to dual 16-position tool changers with a rapid tool change time of just 0.9 seconds (t to t) and 2.1 seconds (c to c).

Though specific table size and load capacities are not available, the machine supports rapid traverse speeds of 2955 IPM on the X and Y axes, ensuring quick and precise movements. With dimensions that are unspecified, the unit weighs 11,500 pounds, reflecting its industrial-grade build quality. This machine is ideal for industries requiring efficient and precise multi-axis machining capabilities.

Machine Control: Fanuc Series 31i Model A5 Control
Table Size: not available
Table load capacity: not available
X-axis travel: 21.67"
Y-axis travel: 15.76"
Z-axis travel: 14.18"
C-Axis Movement - Rotation: +/- 360 Degrees
A-Axis Movement - Tilting: +/- 120 Degrees
Spindle taper: # HSK-A50
Spindle speed: up to 15,000 RPM
Tool magazine capacity: 2 x 16 Positions
Max. tool diam./length/weight: 3.94"/6.3"/17 lbs.
Tool change time t to t / c to c: .9 sec. / 2.1 sec.
Rapid traverse x, y / z: 2955 IPM
Machine dimensions: not available
Machine weight: 11,500 lbs.
