USED 2023 HAAS VM-6

15,000 RPM Spindle
30 Station Side Mounted Tool Changer
Haas WIPS Probing Package with Tool and Part Probing
Programmable Coolant Nozzle
Linear Scales ($15,000 Option)
Rigid Tapping
Auto Air Gun
Auger Style Chip Conveyor
User Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
Visual Part Programming System
Remote Jog Handle
High Intensity Lighting
Coolant Chiller Unit
Chip Filter
Multi Stage Coolant Pump
Chip Wash Down Feature
64 GB Expanded Programming Memory
WiFi w/ Ethernet Interface
USB Port Interface
RS 232 Port Interface
Window Air Blast
Coolant System with Tank & Pump
Advanced Tool Management
15" Color Monitor
Early Power Failure Detection Module
Media Display by M-Code
95 Gallon Coolant Tank
Haas Safe Run
Haas Drop
Haas Connect
ECO Mode
Low Voltage Transformer
Wired 220V Electrics

**Machine Manufactured in August of 2023**
**Price today new as equipped at $225,765**

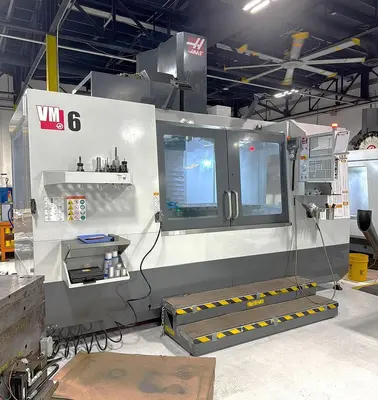

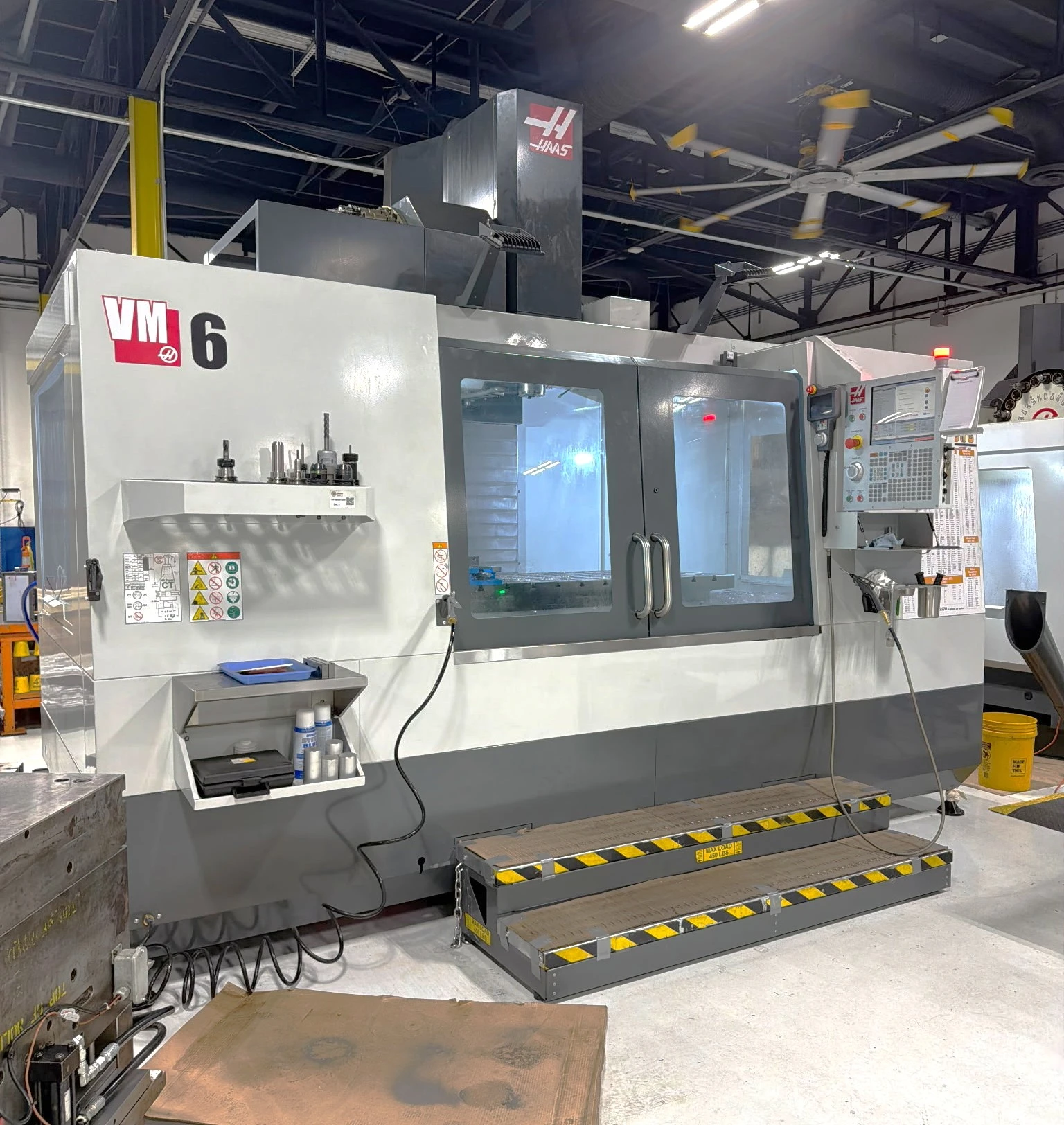

This used 2023 Haas VM-6 Vertical Machining Center is equipped with an array of features to enhance your CNC machining operations. Notably, it includes a Haas Probing Package for precise measurements and a 15,000 RPM spindle with a CAT 40 taper, driven by a robust 30 HP motor, ideal for high-speed milling tasks. The machine offers considerable work space with a 64" x 28" table and supports a maximum load of up to 4,000 lbs. Its travels cover 64" in X, 32" in Y, and 30" in Z, accommodating large and complex workpieces.

A 30-station side mount automatic tool changer ensures efficiency, boasting a swift tool-to-tool change time of 1.6 seconds. The machine achieves rapid traverse rates of 540 inches per minute in X and Y, and 600 inches per minute in Z, vital for reducing idle times. Additional features include the Programmable Coolant Nozzle (PCool) for optimal cooling and a chip auger for effective chip evacuation, enhancing the operational flow.

Built with accuracy in mind, linear scales further ensure precision in positioning. Measuring 195" x 102" x 129" and weighing 24,000 lbs, this machine is a substantial addition to any production floor, offering reliable performance and versatility for various machining needs.

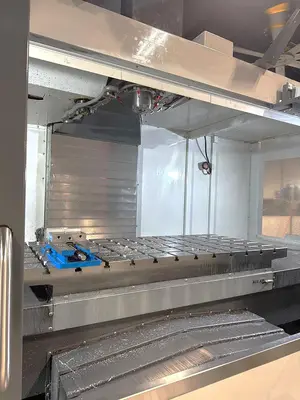

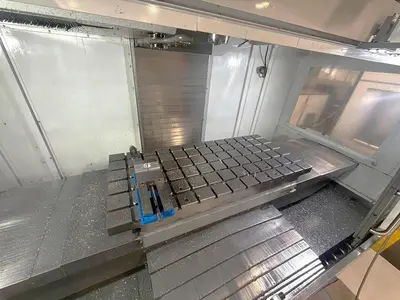

Table Size: 64" x 28"
Maximum Table Load: 4,000 lbs.
Distance Spindle Nose to Table Top: 4" - 34"
X-Axis Travel: 64"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Speed: 15,000 RPM
Spindle Motor: 30 HP
Number of Tool Positions: 30 Station Side Mounted ATC
Tool Change Time Tool to Tool: 1.6 seconds
Rapid Traverse Rates X / Y, Z: 540 IPM / 600 IPM
Machine Dimensions: 195" x 102" x 129"
Machine Weight: 24,000 lbs.
